OMRONPhotoelectric sensorsE32E32-D14L 2M E32 1323B E32D14L2M OMRON Slr Long-distance right-Angle D6mm

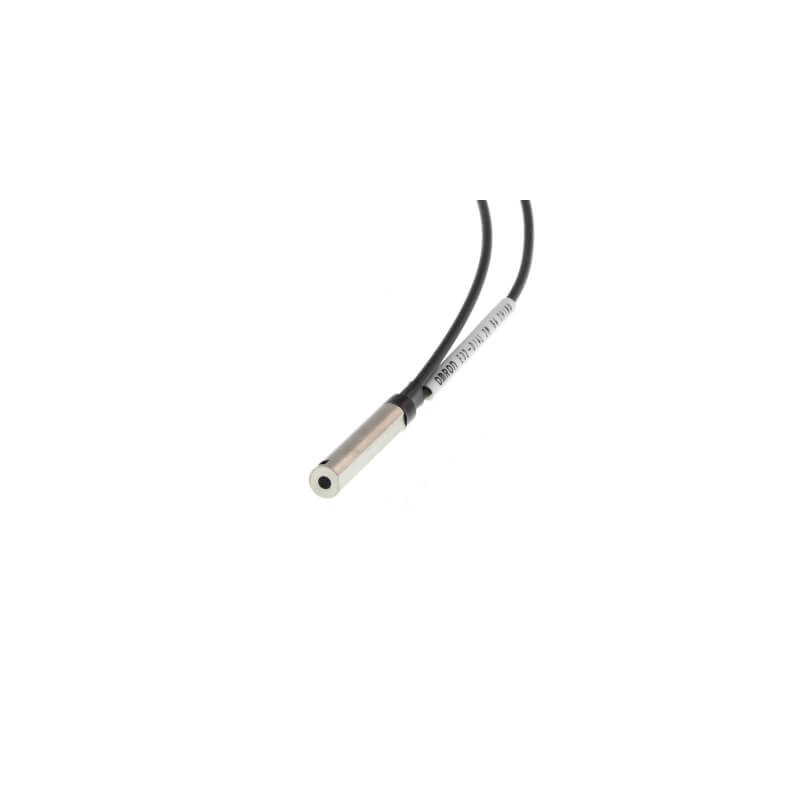

OMRON E32-D14L 2M E32 1323B E32D14L2M - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

E32-D14L 2M E32 1323B E32D14L2M OMRON Slr Long-distance right-Angle D6mm

Reference: E32-D14L 2M

Code: E32 1323B

Catalog Number: E32D14L2M

Manufacturer: OMRON

Description:

Slr Long-distance right-Angle D6mm
Fiber optic sensor head, diffuse, cylindrical radial, diameter 6 mm, R25 fiber, 2 m cable

Categories:

  • Sensors > Optical fibre sensor / optical fibre amplifier
  • OMRON > Photoelectric sensors > E32

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 73,07 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Sensing methodDiffuse reflectiveShapeCylindrical radialSizedia 6 mmApplicationObject detectionTemperature range-40-70 °CSensing distance300 mmCable length2 mBending radius25 mmFree cutMaterial corePlasticDegree of protection (IP)IP67Sensing surface orientationSide-viewMaterial sheathPolyethylene

ETIM for 182524 Sensors (EC002651)

Feature nameVoltage type (EF000187)
Feature valueAC/DC
Feature nameConstruction type housing (EF004008)
Feature valueCylinder plain
Feature nameLaser protection class (EF004027)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP67
Feature nameSetting procedure (EF003994)
Feature valueManual adjustment
Feature nameIndication (EF000350)
Feature valueOther
Feature nameType of switch function (EF003963)
Feature valueProgrammable/configurable
Feature nameType of electric connection (EF003961)
Feature valueCable
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameType of light (EF004029)
Feature valueLaser diode, red light
Feature nameType of switching output (EF003962)
Feature valueOther
Feature nameOperation agent-safety class (EF003982)
Feature valueSafety class 0
Feature nameAnalogue output -10 V ... +10 V (EF006809)
Feature valueNo
Feature nameAnalogue output 0 V ... 10 V (EF006807)
Feature valueNo
Feature nameAnalogue output 0 mA ... 20 mA (EF006808)
Feature valueNo
Feature nameWith blanking function (EF003968)
Feature valueNo
Feature nameAnalogue output 4 mA ... 20 mA (EF006810)
Feature valueNo
Feature nameWith time function (EF003582)
Feature valueNo
Feature nameNominal operating distance (EF004059)
Feature value300 mm
Feature nameNumber of semiconductor outputs with signalling function (EF003945)
Feature value0
Feature nameHeight amplifier (EF007284)
Feature value33.5 mm
Feature nameLength amplifier (EF007335)
Feature value71.8 mm
Feature nameDiameter sensor (EF007111)
Feature value6 mm
Feature nameNumber of contact energized outputs with signalling function (EF003946)
Feature value0
Feature nameWidth amplifier (EF007095)
Feature value10 mm
Feature nameAmbient temperature (EF002386)
Feature value-40 °C

DATASHEET - PDF

Title
Size
Type
E32-D14L 2M E32D14L2M E32 1323B EN_E32-D14L-2M.pdf
221 Kbytes
E32-D14L 2M E32D14L2M E32 1323B e56e_fiber_optic_sensors_group_catalogue_en.pdf
8 Mbytes
PDF CATALOGO OMRON AUTOMATION EN
28 Mbytes
PDF CATALOG OMRON 2024 EN
25 Mbytes
