OMRONSecurity Sensors SECURITY BARRIERS F3SG-R F3SG-4RE2000P14 F3SG6134A F3SG4RE2000P14,1 OMRON Barrier basic safety, IP67, Type 4, Finger 2000mm

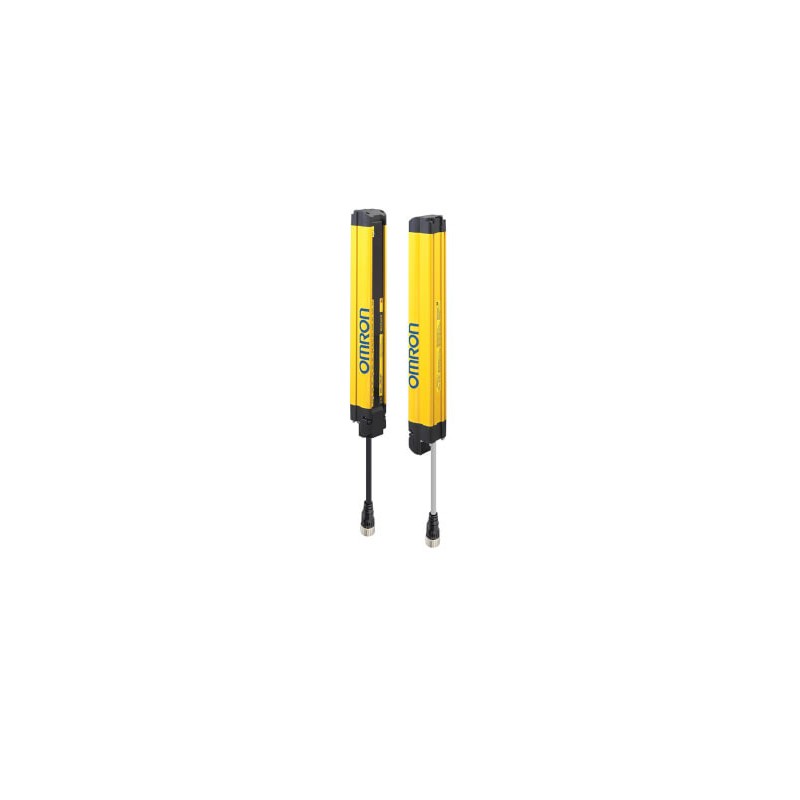

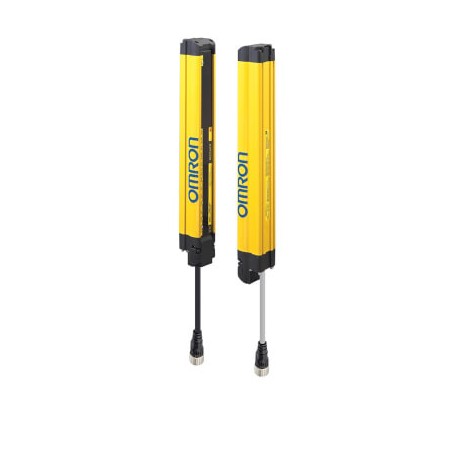

OMRON F3SG-4RE2000P14 F3SG6134A F3SG4RE2000P14.1 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

F3SG-4RE2000P14 F3SG6134A F3SG4RE2000P14,1 OMRON Barrier basic safety, IP67, Type 4, Finger 2000mm

Reference: F3SG-4RE2000P14

Code: F3SG6134A

Catalog Number: F3SG4RE2000P14.1

Manufacturer: OMRON

Description:

Barrier basic safety, IP67, Type 4, Finger 2000mm
Basic Safety Barrier IP67 Type 4 Finger 2000mm
Safety Sensor, F3SG-R Easy, Type 4, 14 mm resolution, range 0.3 to 10.0 m, height 2000 mm, PNP

Categories:

  • Sensors > Light curtain
  • OMRON > Security Sensors > Security Barriers F3SG-R

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 2.767,71 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

ETIM for 673267 Sensors (EC002549)

Feature nameExplosion safety category for dust (EF003998)
Feature valueNone
Feature nameVoltage type (EF000187)
Feature valueDC
Feature nameType of switching output of the OSSD (EF003959)
Feature valuePNP
Feature nameScope of delivery of the one-way system (EF004032)
Feature valueTransmitter and receiver
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP67
Feature nameType of safety according to IEC 61496-1 (EF004105)
Feature value4
Feature nameType of interface for safety communication (EF003956)
Feature valueOther
Feature nameType of electric connection (EF003961)
Feature valueConnector M12
Feature nameOperation agent-safety class (EF003982)
Feature valueSafety class 3
Feature nameExplosion safety category for gas (EF003997)
Feature valueNone
Feature nameCascadable (EF000507)
Feature valueNo
Feature nameOverride possible (EF004061)
Feature valueNo
Feature nameWith muting function (EF004057)
Feature valueNo
Feature nameWith monitoring function downstream switching devices (EF004052)
Feature valueNo
Feature nameSuitable for safety functions (EF001597)
Feature valueYes
Feature nameReduced resolution (EF004095)
Feature valueNo
Feature nameWith beam coding (EF004114)
Feature valueNo
Feature nameFade-out possible (EF003955)
Feature valueNo
Feature nameWith restart blockage (EF004054)
Feature valueNo
Feature nameMax. output current at protected output (EF004035)
Feature value300 mA
Feature nameNumber of protected contact energized outputs (EF003952)
Feature value0
Feature nameNumber of semiconductor outputs with signalling function (EF003945)
Feature value0
Feature nameSafety field height (EF004103)
Feature value2000 mm
Feature nameWavelength of the sensor (EF004132)
Feature value870 nm
Feature nameDetection capability for test bodies (EF003991)
Feature value14 mm
Feature nameResolution of the light curtain (EF006784)
Feature value10 mm
Feature nameResponse time (EF004094)
Feature value15 ms
Feature nameNumber of protected semiconductor outputs (EF003951)
Feature value2
Feature nameTransmission range of the safety field (EF004098)
Feature value10 m
Feature nameSwitching voltage of OSSD at state "high" (EF004102)
Feature value24 V
Feature nameWidth sensor (EF007094)
Feature value35 mm
Feature nameHeight of sensor (EF007283)
Feature value35 mm
Feature nameLength of sensor (EF007334)
Feature value2030 mm
Feature nameNumber of contact energized outputs with signalling function (EF003946)
Feature value0
Feature nameRated control supply voltage DC (EF003980)
Feature value19.2 V
Feature nameAmbient temperature (EF002386)
Feature value-10 °C
