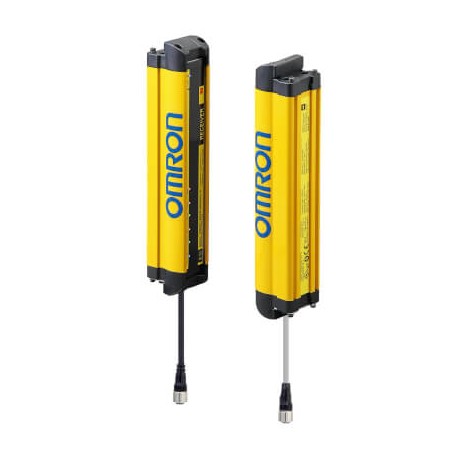

F3SG-4RE0590P30 F3SG6141D 673278 OMRON Basic safety barrier IP67 Type 4 Hand 590mm
F3SG-4RE0590P30
F3SG6141D
F3SG4RE0590P30.1
OMRON
OMRON is making a significant investment in its distribution center in Den Bosch, Netherlands to provide greater flexibility and reliability in deliveries. The transition to its new facilities will begin the week of June 10, 2024. From that date onwards, its warehouse operations will temporarily stop for one week to facilitate the move. They anticipate a four-week ramp-up period starting Monday, June 17, 2024, during which their delivery times will be longer than usual.

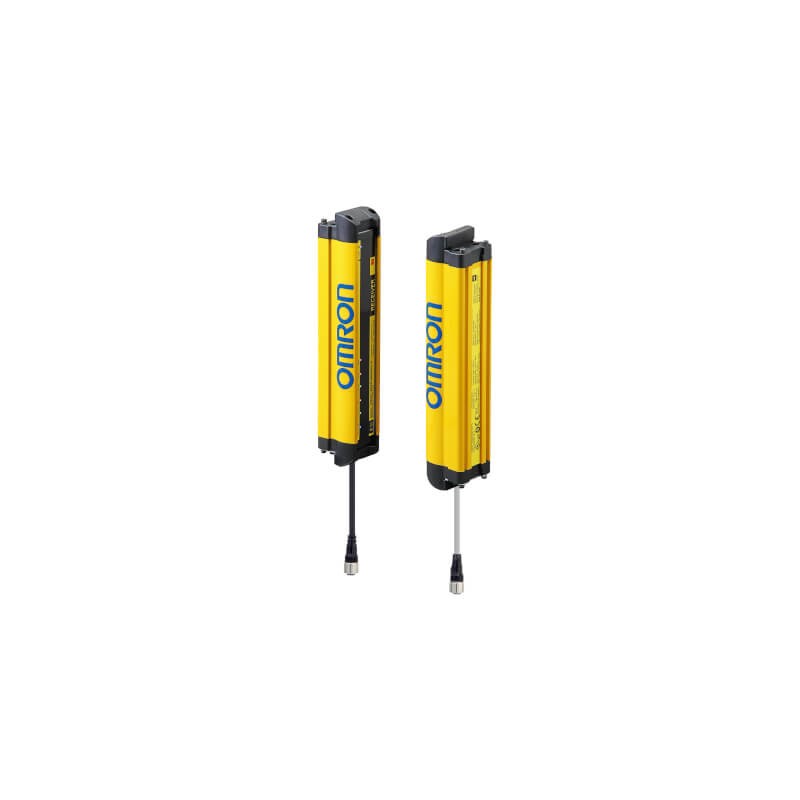

Barrier basic safety, IP67, Type 4, Hand-590mm
Safety Sensor, F3SG-R Easy, Type 4, 30 mm resolution, range 0.3 to 20.0 m, height 590 mm, PNP
Security Sensors > Security Barriers F3SG-R
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Specifications
| Type of safety according to IEC 61496-1 | 4 |
| Type of protection | Hand protection |
| Detection capability | 30 mm |
| Safety field height | 590 mm |
| Beam gap | 20 mm |
| Number of beams | 28 |
| Number of protected semiconductor outputs | 2 |
| Number of semiconductor outputs with signalling function | 0 |
| Maximum safety range | 20 m |
| Minimum operating distance | 0.3 m |
| Response time | 7 ms |
| Cascadable | |
| With muting function | |
| With beam coding | |
| Type of switching output of the OSSD | PNP |
| Key features | Fast response (ON/OFF applications), Simple wiring |
| Suitable for safety functions | |
| Scope of delivery | Transmitter and receiver |
| Wavelength of the sensor | 870 nm |
| Type of electric connection | Connector M12 |
| Supply voltage DC | 19.2-28.8 V |
| Voltage type | DC |
| Max. output current at protected output | 300 mA |
| Degree of protection (IP) | IP67 |
| Ambient temperature | -10-55 °C |
| Overall length | 590 mm |
| Height of sensor | 35 mm |
| Width sensor | 35 mm |
Datasheet - PDF
