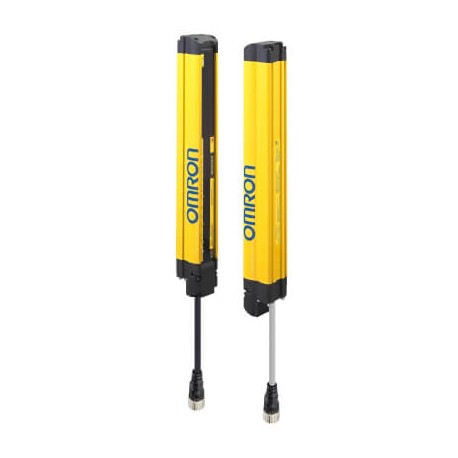

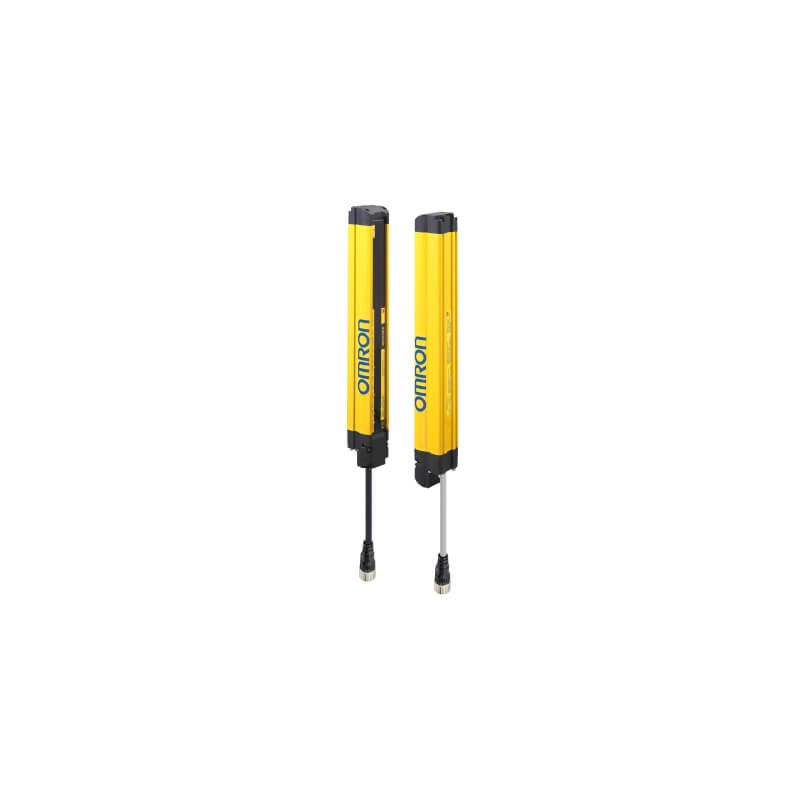

F3SG-4RA0350-30 F3SG6053A 673564 OMRON Advanced Safety Barrier IP67 Type 4 Hand 350mm
F3SG-4RA0350-30
F3SG6053A
F3SG4RA035030.1
OMRON
Barrier security advanced, IP67, Type 4, Hand-350mm
Safety Sensor, F3SG-R Advanced, Type 4, 30 mm resolution, range 0.3 to 20.0 m, height 350 mm, PNP/NPN
Security Sensors > Security Barriers F3SG-R
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
More info
▲Specifications
| Type of safety according to IEC 61496-1 | 4 |
| Type of protection | Hand protection |
| Detection capability | 30 mm |
| Safety field height | 350 mm |
| Beam gap | 20 mm |
| Number of beams | 16 |
| Number of protected semiconductor outputs | 2 |
| Number of semiconductor outputs with signalling function | 1 |
| Maximum safety range | 20 m |
| Minimum operating distance | 0.3 m |
| Response time | 8 ms |
| Cascadable | |
| With muting function | |
| With beam coding | |
| Type of switching output of the OSSD | PNP/NPN |
| Communication port(s) | USB |
| Suitable for safety functions | |
| Scope of delivery | Transmitter and receiver |
| Wavelength of the sensor | 870 nm |
| Type of electric connection | Connector M12 |
| Supply voltage DC | 19.2-28.8 V |
| Voltage type | DC |
| Max. output current at protected output | 300 mA |
| Degree of protection (IP) | IP67 |
| Ambient temperature | -10-55 °C |
| Overall length | 368 mm |
| Height of sensor | 35 mm |
| Width sensor | 35 mm |
