OMRONSecurity Sensors SECURITY BARRIERS F3SG-R F3SG-2RE0720P14 F3SG6173B F3SG2RE0720P14,1 OMRON Barrier basic safety, IP67 Type 2 Finger 720mm

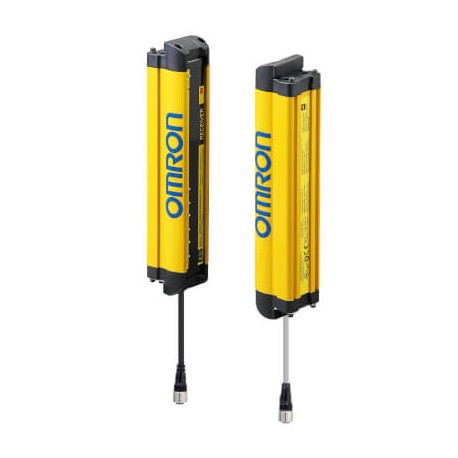

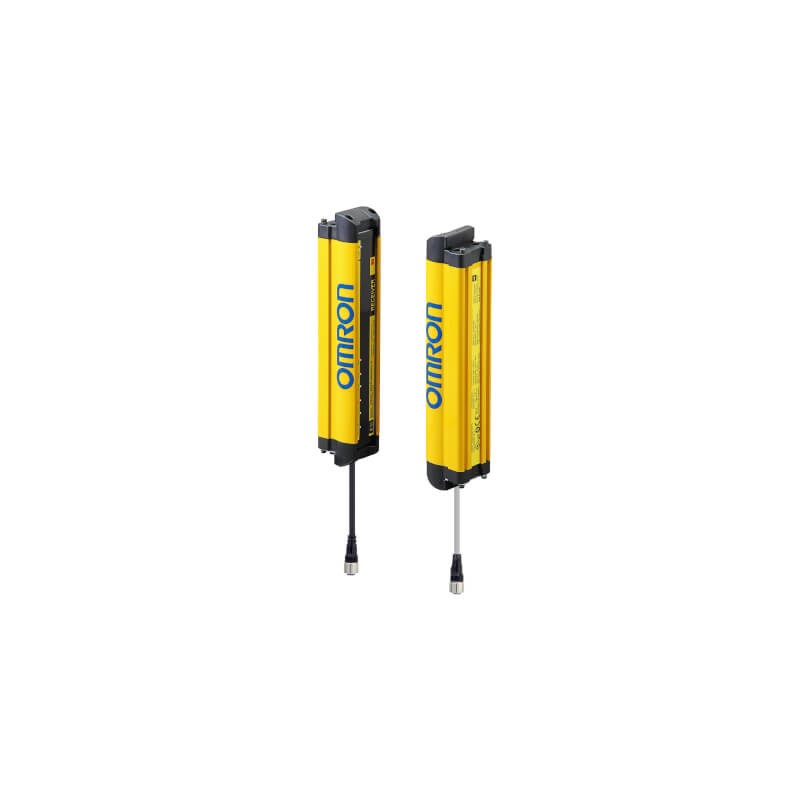

OMRON F3SG-2RE0720P14 F3SG6173B F3SG2RE0720P14.1 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

F3SG-2RE0720P14 F3SG6173B F3SG2RE0720P14,1 OMRON Barrier basic safety, IP67 Type 2 Finger 720mm

Reference: F3SG-2RE0720P14

Code: F3SG6173B

Catalog Number: F3SG2RE0720P14.1

Manufacturer: OMRON

Description:

Barrier basic safety, IP67 Type 2 Finger 720mm
Basic Safety Barrier IP67 Type 2 Finger 720mm
Safety Sensor, F3SG-R Easy, Type 2, 14 mm resolution, range 0.3 to 10.0 m, height 720 mm, PNP

Categories:

  • Sensors > Light curtain
  • OMRON > Security Sensors > Security Barriers F3SG-R

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 1.031,76 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Specifications

Type of safety acc. IEC 61496-12
Type of sensorFinger detection
Detection capability14 mm
Safety field height720 mm
Beam gap10 mm
Number of beams71
Number of protected semiconductor outputs2
Number of semiconductor outputs with signalling function0
Maximum safety range10 m
Minimum operating distance0.3 m
Time of reaction7 ms
Cascadable
With muting function
With beam coding
Type of switching output of the OSSDPNP
Special functionFast response (ON/OFF applications), Simple wiring
Suitable for safety functions
Scope of deliveryTransmitter and receiver
Wavelength of the sensor870 nm
Type of electric connectionConnector M12
Supply voltage DC19.2-28.8 V
Voltage typeDC
Max. output current at protected output300 mA
Degree of protection (IP)IP67
Ambient temperature-10-55 °C
Overall length768 mm
Height of sensor35 mm
Width sensor35 mm

ETIM for 673585 Sensors (EC002549)

Feature nameExplosion safety category for dust (EF003998)
Feature valueNone
Feature nameVoltage type (EF000187)
Feature valueDC
Feature nameType of switching output of the OSSD (EF003959)
Feature valuePNP
Feature nameScope of delivery of the one-way system (EF004032)
Feature valueTransmitter and receiver
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP67
Feature nameType of safety according to IEC 61496-1 (EF004105)
Feature value2
Feature nameType of interface for safety communication (EF003956)
Feature valueOther
Feature nameType of electric connection (EF003961)
Feature valueConnector M12
Feature nameOperation agent-safety class (EF003982)
Feature valueSafety class 3
Feature nameExplosion safety category for gas (EF003997)
Feature valueNone
Feature nameCascadable (EF000507)
Feature valueNo
Feature nameOverride possible (EF004061)
Feature valueNo
Feature nameWith muting function (EF004057)
Feature valueNo
Feature nameWith monitoring function downstream switching devices (EF004052)
Feature valueNo
Feature nameSuitable for safety functions (EF001597)
Feature valueYes
Feature nameReduced resolution (EF004095)
Feature valueNo
Feature nameWith beam coding (EF004114)
Feature valueNo
Feature nameFade-out possible (EF003955)
Feature valueNo
Feature nameWith restart blockage (EF004054)
Feature valueNo
Feature nameMax. output current at protected output (EF004035)
Feature value300 mA
Feature nameNumber of protected contact energized outputs (EF003952)
Feature value0
Feature nameNumber of semiconductor outputs with signalling function (EF003945)
Feature value0
Feature nameSafety field height (EF004103)
Feature value720 mm
Feature nameWavelength of the sensor (EF004132)
Feature value870 nm
Feature nameDetection capability for test bodies (EF003991)
Feature value14 mm
Feature nameResolution of the light curtain (EF006784)
Feature value10 mm
Feature nameResponse time (EF004094)
Feature value7 ms
Feature nameNumber of protected semiconductor outputs (EF003951)
Feature value2
Feature nameTransmission range of the safety field (EF004098)
Feature value10 m
Feature nameSwitching voltage of OSSD at state "high" (EF004102)
Feature value24 V
Feature nameWidth sensor (EF007094)
Feature value35 mm
Feature nameHeight of sensor (EF007283)
Feature value35 mm
Feature nameLength of sensor (EF007334)
Feature value768 mm
Feature nameNumber of contact energized outputs with signalling function (EF003946)
Feature value0
Feature nameRated control supply voltage DC (EF003980)
Feature value19.2 V
Feature nameAmbient temperature (EF002386)
Feature value-10 °C

DATASHEET - PDF
