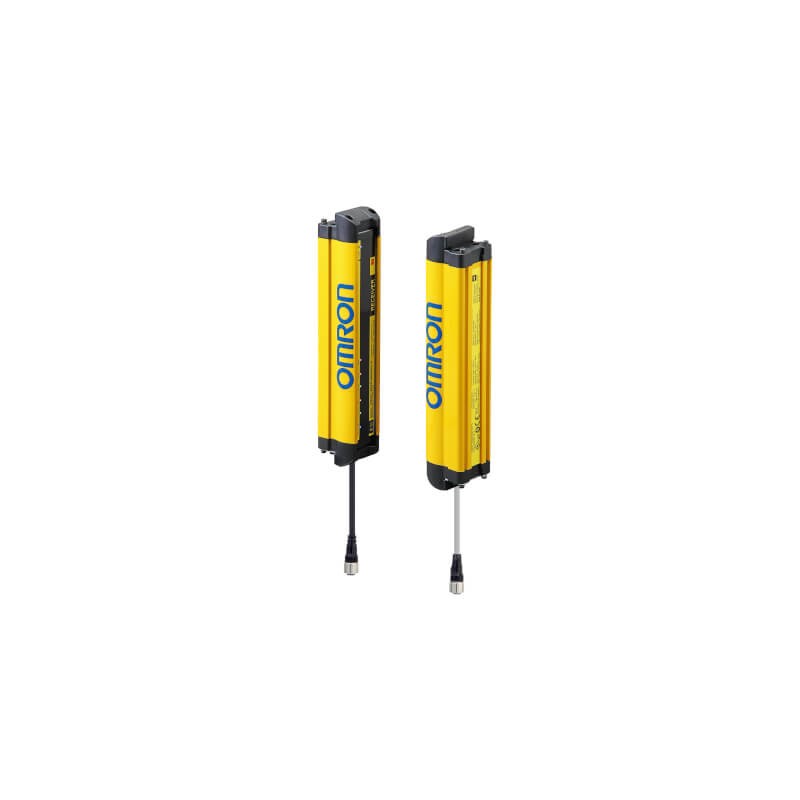

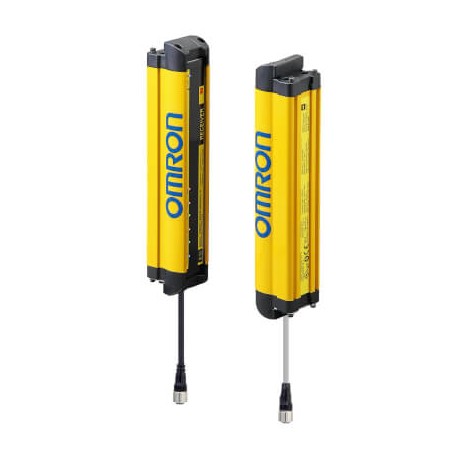

F3SG-2RE0510P30 F3SG6195C 673556 OMRON Basic Safety Barrier IP67 Type 2 Hand 510mm
F3SG-2RE0510P30
F3SG6195C
F3SG2RE0510P30.1
OMRON
Barrier basic safety, IP67 Type 2 Hand 510mm
Safety Sensor, F3SG-R Easy, Type 2, 30 mm resolution, range 0.3 to 20.0 m, height 510 mm, PNP
Sensors > Light curtain
Security Sensors > Security Barriers F3SG-R
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Specifications
| Type of safety acc. IEC 61496-1 | 2 |
| Type of sensor | Hand detection |
| Detection capability | 30 mm |
| Safety field height | 510 mm |
| Beam gap | 20 mm |
| Number of beams | 24 |
| Number of protected semiconductor outputs | 2 |
| Number of semiconductor outputs with signalling function | 0 |
| Maximum safety range | 20 m |
| Minimum operating distance | 0.3 m |
| Time of reaction | 5 ms |
| Cascadable | |
| With muting function | |
| With beam coding | |
| Type of switching output of the OSSD | PNP |
| Special function | Fast response (ON/OFF applications), Simple wiring |
| Suitable for safety functions | |
| Scope of delivery | Transmitter and receiver |
| Wavelength of the sensor | 870 nm |
| Type of electric connection | Connector M12 |
| Supply voltage DC | 19.2-28.8 V |
| Voltage type | DC |
| Max. output current at protected output | 300 mA |
| Degree of protection (IP) | IP67 |
| Ambient temperature | -10-55 °C |
| Overall length | 528 mm |
| Height of sensor | 35 mm |
| Width sensor | 35 mm |
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Voltage type (EF000187) | DC |
| Type of switching output of the OSSD (EF003959) | PNP |
| Scope of delivery of the one-way system (EF004032) | Transmitter and receiver |
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Type of safety according to IEC 61496-1 (EF004105) | 2 |
| Type of interface for safety communication (EF003956) | Other |
| Type of electric connection (EF003961) | Connector M12 |
| Operation agent-safety class (EF003982) | Safety class 3 |
| Explosion safety category for gas (EF003997) | None |
| Cascadable (EF000507) | No |
| Override possible (EF004061) | No |
| With muting function (EF004057) | No |
| With monitoring function downstream switching devices (EF004052) | No |
| Suitable for safety functions (EF001597) | Yes |
| Reduced resolution (EF004095) | No |
| With beam coding (EF004114) | No |
| Fade-out possible (EF003955) | No |
| With restart blockage (EF004054) | No |
| Max. output current at protected output (EF004035) | 300 mA |
| Number of protected contact energized outputs (EF003952) | 0 |
| Number of semiconductor outputs with signalling function (EF003945) | 0 |
| Safety field height (EF004103) | 510 mm |
| Wavelength of the sensor (EF004132) | 870 nm |
| Detection capability for test bodies (EF003991) | 30 mm |
| Resolution of the light curtain (EF006784) | 20 mm |
| Response time (EF004094) | 5 ms |
| Number of protected semiconductor outputs (EF003951) | 2 |
| Transmission range of the safety field (EF004098) | 20 m |
| Switching voltage of OSSD at state "high" (EF004102) | 24 V |
| Width sensor (EF007094) | 35 mm |
| Height of sensor (EF007283) | 35 mm |
| Length of sensor (EF007334) | 528 mm |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Rated control supply voltage DC (EF003980) | 19.2 V |
| Ambient temperature (EF002386) | -10 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
