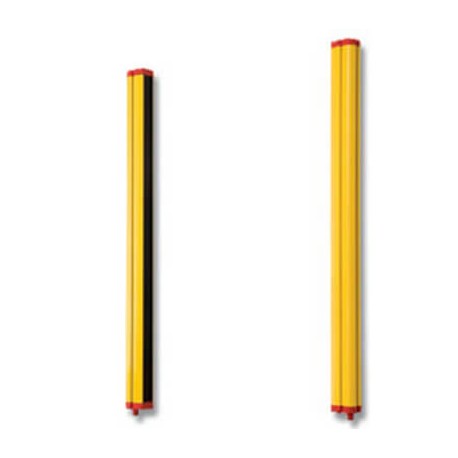

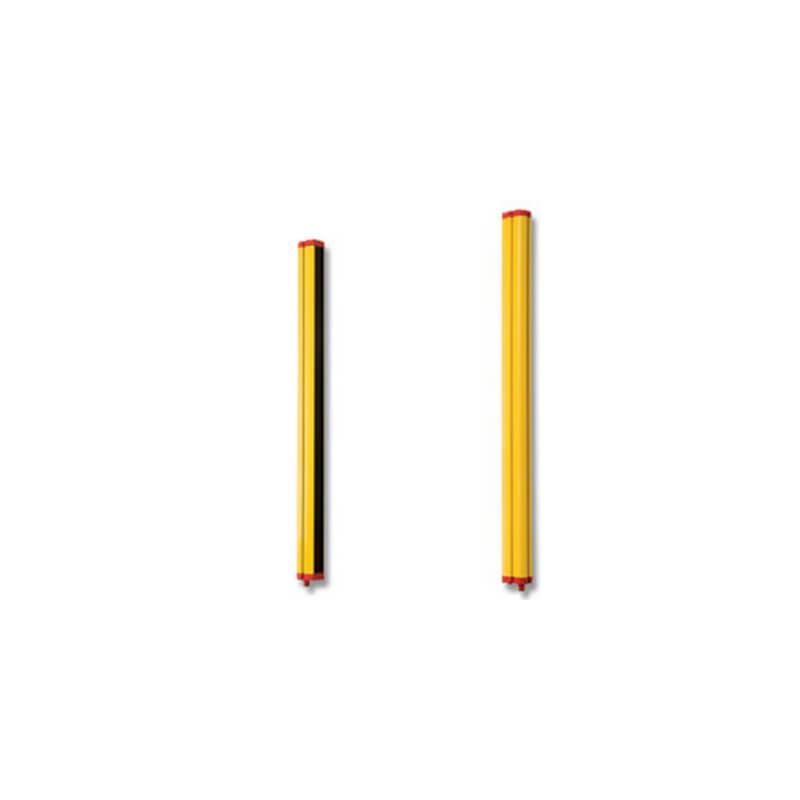

F3S-TGR-CL4A-K4C-1200 656740 F3S 8035B OMRON Barrier security advanced Cat 4 Active-Passive 7m 1200mm
F3S-TGR-CL4A-K4C-1200
656740
F3STGRCL4AK4C1200.1
OMRON
Barrier security advanced Cat 4 Active-Passive 7m 1200mm
Safety light curtain, 4 beam, active/passive, body, beam distance 400mm, range 0.5-7m, detection zone 1200mm
Safety > TGR Safety Light Courtains
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
More info
▲Specifications
| Type of safety acc. IEC 61496-1 | 4 |
| Type of sensor | Body detection |
| Detection capability | 400 mm |
| Number of protected semiconductor outputs | 2 |
| Number of semiconductor outputs with signalling function | 0 |
| Maximum safety range | 7 m |
| Minimum operating distance | 0.5 m |
| Time of reaction | 13 ms |
| Cascadable | |
| With muting function | |
| With beam coding | |
| Type of switching output of the OSSD | PNP |
| Special function | Active/passive, Blanking, Interlock, Pre-reset |
| Scope of delivery | Transmitter and receiver |
| Wavelength of the sensor | 880 nm |
| Type of electric connection | Connector M12 |
| Voltage type | DC |
| Max. output current at protected output | 250 mA |
| Degree of protection (IP) | IP65 |
| Ambient temperature | -10-55 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| F3S-TGR-CL4A-K4C-1200 F3S 8035B 656740 ES_F3S-TGR-CL2B-035-450.pdf | 516 Kbytes |
 |
| F3S-TGR-CL4A-K4C-1200 F3S 8035B 656740 | 240 Kbytes |
|
