F39-TGR-W-IBOX-3 249251 F39TGRWIBOX3 OMRON Box interconnection muting/override
F39-TGR-W-IBOX-3
249251
F39TGRWIBOX3
OMRON
Box interconnection muting/override
Muting/override junction box
Safety > Accessories Safety
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Muting actuators

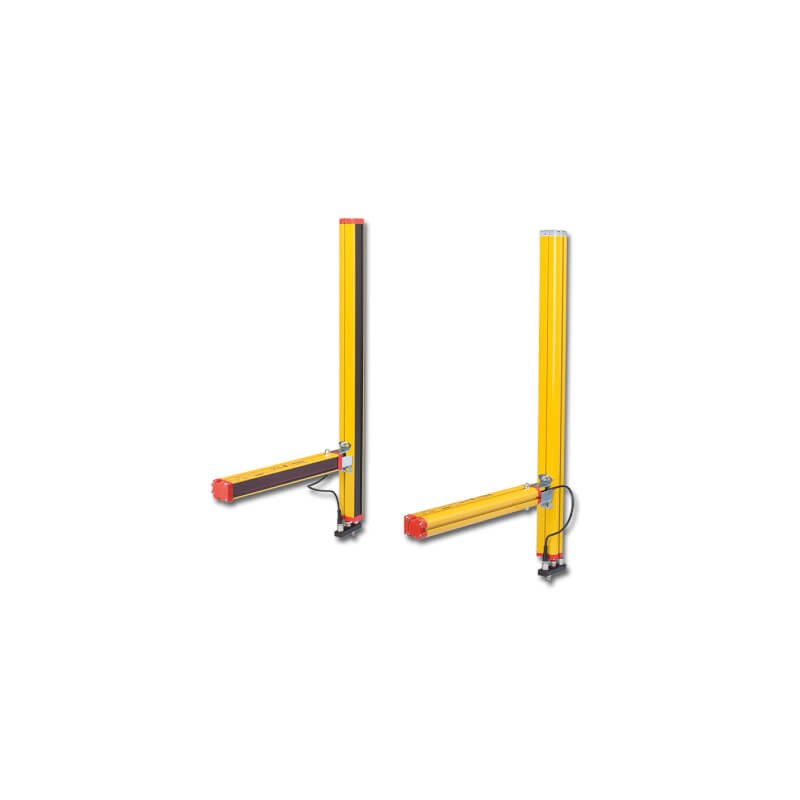

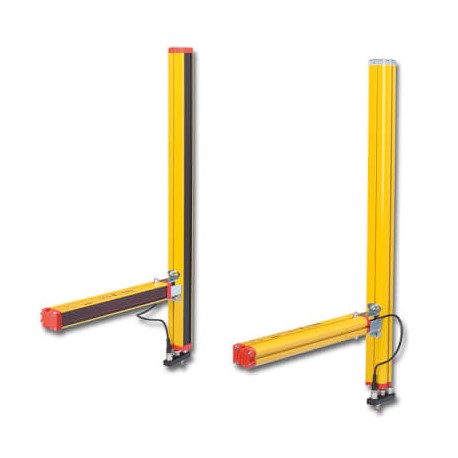

The F39-TGR-MCL-_ muting actuators are plug-and-play accessories for the F3S-TGR-CL Safety Sensors. Easy wiring of the entire muting system is provided by connection boxes managing all connections needed.
- Active/active and active/passive systems supported
- T- and L- shape muting by using same parts
- Selectable muting sensor sequence
- Pre-installed mounting brackets
- Pre-wired connection cables
- Supporting Type 2 and Type 4 applications
Ordering information
Muting actuators (mounting brackets are included)
Order code | ||
|---|---|---|
Transmitter + Receiver set | active/active | F39-TGR-MCL |
Receiver only | active/active | F39-TGR-MCL-D |
Transmitter only | active/active | F39-TGR-MCL-L |
Transceiver + Reflector set | active/passive | F39-TGR-MCL-R |
Transceiver only | active/passive | F39-TGR-MCL-R-A |
Reflector only | active/passive | F39-TGR-MCL-R-P |
Connection boxes
Order code | |
|---|---|
Connection box for Receivers and Transceivers | F39-TGR-MCL-CMD |
Connection box for Transmitters | F39-TGR-MCL-CML |
Mounting brackets
Order code | |
|---|---|
Mounting bracket for one muting actuator | F39-TGR-MCL-ST |
Specifications
Power supply | 24 VDC±20% | |
Consumption | 5 W max (F39-TGR-MCL-_ only) | |
Ambient temperature | During operation; -10 to + 55°C (with no dew condensation) | |
Cable connector | Length | 30 cm pre-wired |
RX | M12 5-pin female | |
TX | M12 5-pin female | |
Degree of protection | IP65 | |
Distance between muting beams | 250mm | |
F39-TGR-MCL | Optical data | Through-beam system |
Operating distance | 0 ... 7 m; max. 0 ... 8,4 m | |
Light source | Red emitting LEDs, Wavelength 630 nm | |
F39-TGR-MCL-R | Optical data | Polarized retro-reflective system |
Operating distance | 0 ... 4 m; max. 0 ... 4,8 m | |
Light source | Red emitting LEDs, Wavelength 660 nm | |
Configuration examples
L-muting, active/active
1) Safety sensor (e.g. F3S-TGR-CL4A-K2-500)
2) Muting actuators F39-TGR-MCL
3) Connector box F39-TGR-MCL-CML
4) Connector box F39-TGR-MCL-CMD
L-muting, active/passive
1) Safety Sensor (e.g. F3S-TGR-CL4A-K2C-500)
2) Muting actuators F39-TGR-MCL-R
3) Connection box F39-TGR-MCL-CMD
