OMRONPhotoelectric sensorsE3XE3X-ECT E3X 7307A E3XECTOMS OMRON Unit communication EtherCAT E3X

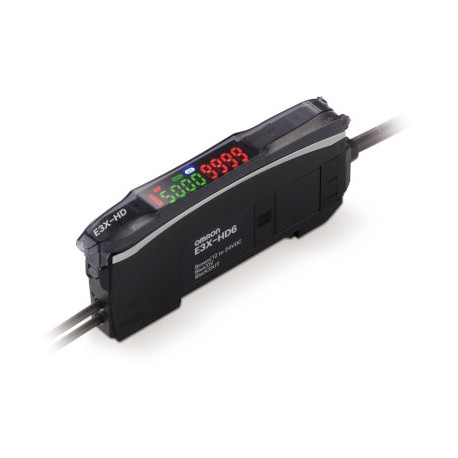

OMRON E3X-ECT E3X 7307A E3XECTOMS - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

E3X-ECT E3X 7307A E3XECTOMS OMRON Unit communication EtherCAT E3X

Reference: E3X-ECT

Code: E3X 7307A

Catalog Number: E3XECTOMS

Manufacturer: OMRON

Description:

Unit communication EtherCAT E3X
EtherCAT E3X communication unit

Categories:

  • OMRON > Photoelectric sensors > E3X

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

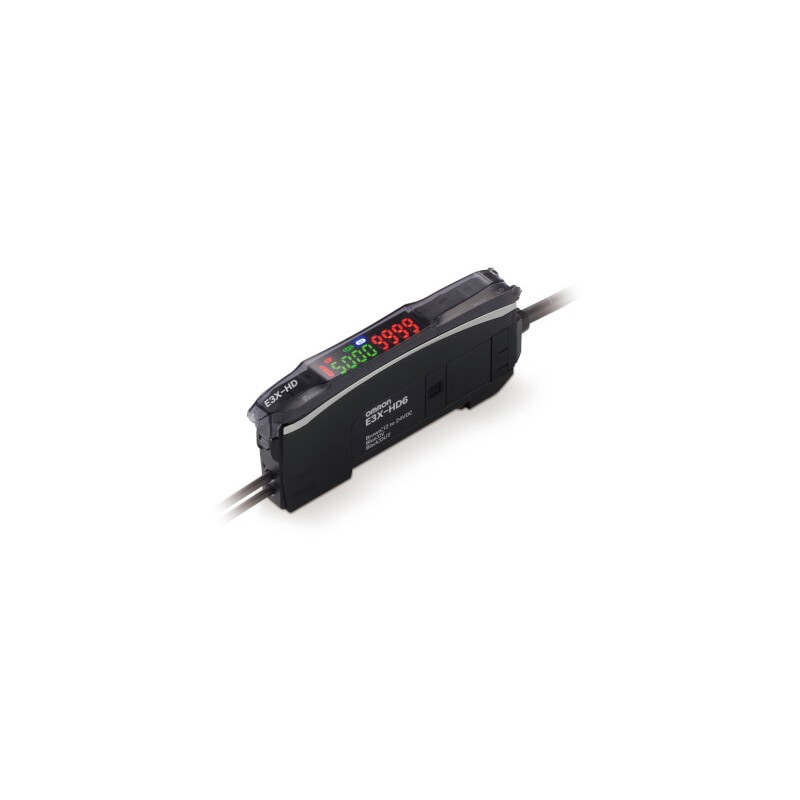

Easy-teach digital fiber amplifier

The E3X-HD with 1-button Smart tune set-up provides fast and simple teaching. Dual digital display and advanced features make the E3X-HD ideal even for demanding applications.

  • Easy teaching by Smart tuning within a few seconds
  • Dynamic Power Control (DPC) for highest operational stability for changing environmental conditions or challenging objects
  • M8 connector models
  • EtherCAT and CompoNet Communication units for high-speed field bus connectivity

Ordering information

Item

Order code

Transistor output models

Communication unit model1

NPN output

PNP output

Pre-wired

E3X-HD11 2M

E3X-HD41 2M

-

Fiber amplifier connector

E3X-HD6

E3X-HD8

E3X-HD0

M8 connector (4pin)

E3X-HD14

E3X-HD44

-

Fiber amplifier connectors

Shape

Type

Comment

Order code


Fiber amplifier connector

2 m PVC cable

E3X-CN11


30 cm PVC cable with M12 plug connector (4 pin)

E3X-CN21-M1J 0.3M

30 cm PVC cable with M8 plug connector (4 pin)

E3X-CN21-M3J-2 0.3M

Communication units

Shape

Communications method

Applicable Fiber Amplifier Units

Order code


CompoNet

E3X-HD0

E3X-MDA0

E3X-DA0-S

E3X-CRT


EtherCAT

E3X-ECT

Specifications

Item

Type

Standard models

For Communications Unit

Model

E3X-HD11

E3X-HD41

E3X-HD6

E3X-HD8

E3X-HD14

E3X-HD44

E3X-HD0

Connection method

Pre-wired

Wire-saving connector

M8-4pin connector

Communications unit connector

Control output

NPN output

PNP output

NPN output

PNP output

NPN output

PNP output

-

Light source (wavelength)

Red, 4-element LED (625 nm)

Power supply voltage

12 to 24 VDC±10%, ripple (p-p) 10% max.

Power consumption

Normal Mode: 720 mW max. (Current consumption: 30 mA max. at 24 VDC, 60 mA max. at 12 VDC.)

Power Saving Eco Mode: 530 mW max. (Current consumption: 22 mA max. at 24 VDC, 44 mA max. at 12 VDC.)

Control output

Load power supply voltage: 26.4 VDC max., open-collector output (Varies with the model depending on

output is PNP or NPN.)Load current: 50 mA max. (residual voltage: 2 V max.), OFF current: 0.5 mA max.

-

Response time

Super-high-speed Mode (SHS)

Operate or reset: 50 μs (NPN models) or 55 μs (PNP models)

High-speed Mode (HS)

Operate or reset: 250 µs

Standard Mode (STND)

Operate or reset: 1 ms

Giga-power Mode (GIGA)

Operate or reset: 1 ms

Mutual interference prevention

Possible for up to 10 units

Maximum

connectable Units

16 units

with E3X-CRT: 16 units

with E3X-ECT: 30 units

Easy One-Button-Teaching/Smart Tuning


Easy setting of optimum power and threshold by pushing tune button twice.

Smart power control


Enhanced signal stability control for compensating power reductions caused by temperature drift, dust or aging of LED.

Field bus connectivity


Field bus communication allows control by an external device to simplify setup and reduce wiring effort.

1.For field bus connection please chose Communication unit E3X-ECT for EtherCAT or E3X-CRT for CompoNet.
