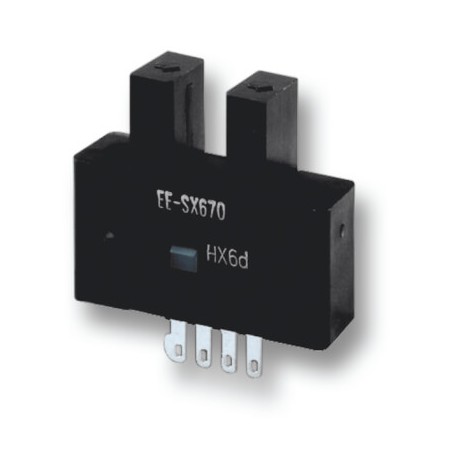

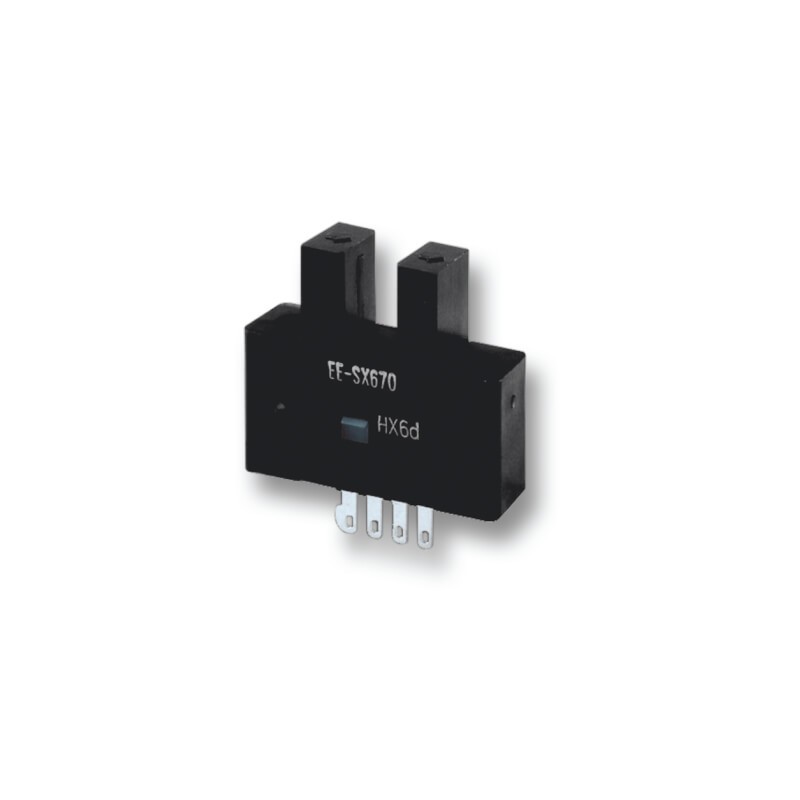

OMRON EE-SX677P EESX2272H EESX677P.1 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

EE-SX677P EESX2272H EESX677P,1 OMRON Horseshoe 5mm Light/Osc. Select. PNP

Name: EE-SX677P EESX2272H EESX677P,1 OMRON Horseshoe 5mm Light/Osc. Select. PNP
Brand: OMRON
SKU: OMREESX2272H
Price: 25.76 USD
Availability: OutOfStock

Reference: EE-SX677P

Code: EESX2272H

Catalog Number: EESX677P.1

Manufacturer: OMRON

Description:

Horseshoe 5mm Light/Osc. Select. PNP

Photo micro sensor, slot type, R-shaped, L-ON/D-ON selectable, PNP, connector

Categories:

Sensors > Fork light barrier
OMRON > Photoelectric sensors > Photomicrosensors

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

More Info
ETIM
PDF
Reviews

Guarantee, repair and return.

Total: 220,01 €

Unit Price: 22,002 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 weeks.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Features

Photo microsensor in plastic fork shape housing

For smaller size see the EE-SX95. For larger fork size sensors see the E3Z-G.

Response frequency up to 1 kHz
Wide operating voltage range: 5 to 24 VDC

Ordering information

Connector models

Sensor type	Sensing distance	Connection method	Operation Mode	Shape1	Order code2
Sensor type	Sensing distance	Connection method	Operation Mode	Shape1	NPN output	PNP output
Through-beam with slot	5 mm (slot width) (Infrared light)	Connector (4 pin)3	Dark-ON/Light-ON (selectable)	Standard	EE-SX670	EE-SX670P
				L-shaped	EE-SX671	EE-SX671P
				T-shaped, 7 mm	EE-SX672	EE-SX672P
				Close-mounting	EE-SX673	EE-SX673P
				Close-mounting	EE-SX674	EE-SX674P
				T-shaped, 10 mm	EE-SX675	EE-SX675P
				F-shaped	EE-SX676	EE-SX676P
				R-shaped	EE-SX677	EESX-677P

Specifications

Item			Through-beam
Item			Standard	L-shaped	T-shaped, slot center: 7 mm	Close-mounting		T-shaped, slot center: 10 mm	F-shaped	R-shaped
		NPN	EE-SX670	EE-SX671	EE-SX672	EE-SX673	EE-SX674	EE-SX675	EE-SX676	EE-SX677
		PNP	EE-SX670P	EE-SX671P	EE-SX672P	EE-SX673P	EE-SX674P	EE-SX675P	EE-SX676P	EE-SX677P
Sensing distance			5 mm (slot width)
Power supply voltage			5 to 24 VDC ±10%, ripple (p-p): 10% max.
Response frequency			1 kHz min. (3 kHz average)
Ambient temperature			Operating: -25 to 55°C, Storage: -30 to 80°C
Degree of protection			IEC60529 IP50
Material	Case		PBT (polybutylene terephthalate)
Material	Lens		Polycarbonate

Accessories (order separately)

Type	Cable length	Material	Order code
Connector with Cable	2 m	PVC	EE-1010 2M
Connector with Robot Cable	2 m	PVC	EE-1010R 2M

Note:For mechanical limit switches see pageRefer to Mechanical sensors/Limit switches

1.For shape dimensions refer to datasheet on www.industrial.omron.eu

2.For pre-wired models with 1 m cable add '-WR' to order reference (e.g. EE-SX670-WR)

3.Order connector separately from accessories

ETIM for 392329 Sensors (EC002720)

Feature nameExplosion safety category for dust (EF003998)

Feature valueNone

Feature nameVoltage type (EF000187)

Feature valueDC

Feature nameConstruction type housing (EF004008)

Feature valueSpecial construction

Feature nameLaser protection class (EF004027)

Feature valueNone

Feature nameDegree of protection (NEMA) (EF011959)

Feature valueOther

Feature nameDegree of protection (IP) (EF005474)

Feature valueIP50

Feature nameSetting procedure (EF003994)

Feature valueOther

Feature nameMaterial of optical surface (EF004134)

Feature valuePlastic

Feature nameSensing mode (EF007503)

Feature valueLight-/dark switching

Feature nameType of interface for safety communication (EF003956)

Feature valueOther

Feature nameType of switch function (EF003963)

Feature valueProgrammable/configurable

Feature nameType of electric connection (EF003961)

Feature valueOther

Feature nameHousing material (EF001596)

Feature valuePlastic

Feature nameType of light (EF004029)

Feature valueInfrared light

Feature nameMaterial of cable sheath (EF004136)

Feature valuePolyvinyl chloride (PVC)

Feature nameType of switching output (EF003962)

Feature valuePNP

Feature nameOperation agent-safety class (EF003982)

Feature valueSafety class 3

Feature nameExplosion safety category for gas (EF003997)

Feature valueNone

Feature nameWith communication interface RS-485 (EF007314)

Feature valueNo

Feature nameAnalogue output -10 V ... +10 V (EF006809)

Feature valueNo

Feature nameWith communication interface SSD (EF007315)

Feature valueNo

Feature nameWith communication interface SSI (EF007316)

Feature valueNo

Feature nameAnalogue output 0 V ... 10 V (EF006807)

Feature valueNo

Feature nameAnalogue output 0 mA ... 20 mA (EF006808)

Feature valueNo

Feature nameWith communication interface RS-232 (EF007312)

Feature valueNo

Feature nameWith communication interface DeviceNet (EF007308)

Feature valueNo

Feature nameWith monitoring function downstream switching devices (EF004052)

Feature valueNo

Feature nameWith reflector (EF007448)

Feature valueNo

Feature nameWith communication interface PROFIBUS (EF007311)

Feature valueNo

Feature nameSuitable for safety functions (EF001597)

Feature valueNo

Feature nameWith communication interface analogue (EF007305)

Feature valueNo

Feature nameWith communication interface INTERBUS (EF007310)

Feature valueNo

Feature nameWith communication interface RS-422 (EF007313)

Feature valueNo

Feature nameWith communication interface CANOpen (EF007307)

Feature valueNo

Feature nameWith communication interface Ethernet (EF007309)

Feature valueNo

Feature nameAnalogue output 4 mA ... 20 mA (EF006810)

Feature valueNo

Feature nameWith time function (EF003582)

Feature valueNo

Feature namePre failure notice (EF004129)

Feature valueNo

Feature nameWith communication interface AS-Interface (EF007306)

Feature valueNo

Feature nameWith other analogue output (EF007485)

Feature valueNo

Feature nameWith restart blockage (EF004054)

Feature valueNo

Feature nameNumber of protected contact energized outputs (EF003952)

Feature value0

Feature nameMax. switching distance (EF007367)

Feature value5 mm

Feature nameAWG-number (EF007010)

Feature value24

Feature nameFork depth (EF008290)

Feature value9 mm

Feature nameNumber of semiconductor outputs with signalling function (EF003945)

Feature value1

Feature nameFork width (EF008291)

Feature value5 mm

Feature nameWavelength of the sensor (EF004132)

Feature value940 nm

Feature nameResponse time (EF004094)

Feature value0.17 ms

Feature nameNumber of protected semiconductor outputs (EF003951)

Feature value0

Feature nameWidth sensor (EF007094)

Feature value13.2 mm

Feature nameRated switching distance (EF008289)

Feature value5 mm

Feature nameHeight of sensor (EF007283)

Feature value22.2 mm

Feature nameMax. output current (EF001315)

Feature value50 mA

Feature nameLength of sensor (EF007334)

Feature value13.4 mm

Feature nameSwitching frequency (EF003587)

Feature value3000 Hz

Feature nameNumber of contact energized outputs with signalling function (EF003946)

Feature value0

Feature nameMin. object size (EF008292)

Feature value0.8 mm

Feature nameRated control supply voltage DC (EF003980)

Feature value4.5 V

Feature nameAmbient temperature (EF002386)

Feature value-25 °C
