> >>>EE-SX675P EESX2268M 392326 OMRON Horseshoe 5mm Light/Osc. Select. PNP
Previous Product Next Product

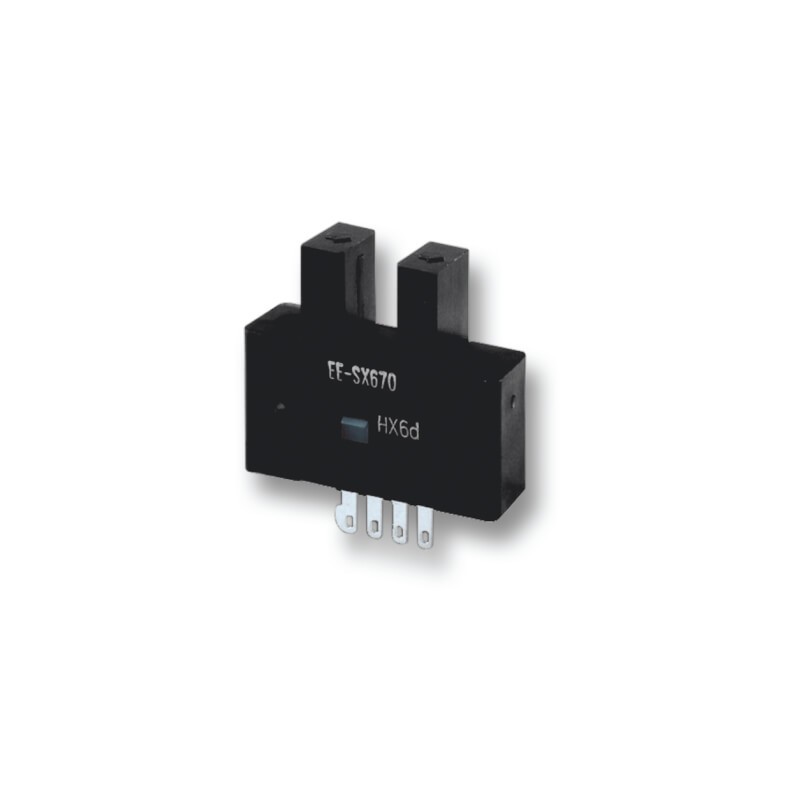

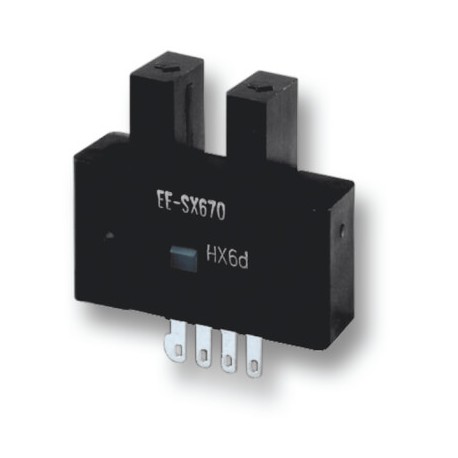

EE-SX675P EESX2268M 392326 OMRON Horseshoe 5mm Light/Osc. Select. PNP View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

EE-SX675P EESX2268M 392326 OMRON Horseshoe 5mm Light/Osc. Select. PNP

EE-SX675P

EESX2268M

EESX675P.1

OMRON

Available Ship on today

Horseshoe 5mm Light/Osc. Select. PNP

More details


Photoelectric sensors > Photomicrosensors

* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

Total price: $36.05
Unit price: $36.05

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

More info

▲


Features

Photo microsensor in plastic fork shape housing

For smaller size see the EE-SX95. For larger fork size sensors see the E3Z-G.

  • Response frequency up to 1 kHz
  • Wide operating voltage range: 5 to 24 VDC

Ordering information

Connector models

Sensor type

Sensing distance

Connection method

Operation Mode

Shape1

Order code2

NPN output

PNP output

Through-beam with slot

5 mm
(slot width)
(Infrared light)

Connector (4 pin)3

Dark-ON/Light-ON
(selectable)


EE-SX670

EE-SX670P


EE-SX671

EE-SX671P

T-shaped, 7 mmEE-SX47_67_rev01-4.png

EE-SX672

EE-SX672P


EE-SX673

EE-SX673P


EE-SX674

EE-SX674P

T-shaped, 10 mmEE-SX47_67_rev01-7.png

EE-SX675

EE-SX675P


EE-SX676

EE-SX676P


EE-SX677

EESX-677P

Specifications

Item

Through-beam

Standard

L-shaped

T-shaped,
slot center: 7 mm

Close-mounting

T-shaped,
slot center: 10 mm

F-shaped

R-shaped

NPN

EE-SX670

EE-SX671

EE-SX672

EE-SX673

EE-SX674

EE-SX675

EE-SX676

EE-SX677

PNP

EE-SX670P

EE-SX671P

EE-SX672P

EE-SX673P

EE-SX674P

EE-SX675P

EE-SX676P

EE-SX677P

Sensing distance

5 mm (slot width)

Power supply voltage

5 to 24 VDC ±10%, ripple (p-p): 10% max.

Response frequency

1 kHz min. (3 kHz average)

Ambient temperature

Operating: -25 to 55°C, Storage: -30 to 80°C

Degree of protection

IEC60529 IP50

Material

Case

PBT (polybutylene terephthalate)

Lens

Polycarbonate

Accessories (order separately)

Type

Cable length

Material

Order code

Connector with Cable

2 m

PVC

EE-1010 2M

Connector with Robot Cable

2 m

PVC

EE-1010R 2M

Note:For mechanical limit switches see pageRefer to Mechanical sensors/Limit switches


1.For shape dimensions refer to datasheet on www.industrial.omron.eu

2.For pre-wired models with 1 m cable add '-WR' to order reference (e.g. EE-SX670-WR)

3.Order connector separately from accessories

Datasheet - PDF

▲
Title: Size: Type:
EE-SX675P EESX675P.1 EESX2268M 240 Kbytes EE-SX675P EESX675P.1 EESX2268M
EE-SX675P EESX675P.1 EESX2268M e96e_xs_f_w_c_y92e_sensor_connectors_m8_and_m12_datasheet_en.pdf 2 Mbytes EE-SX675P EESX675P.1 EESX2268M
