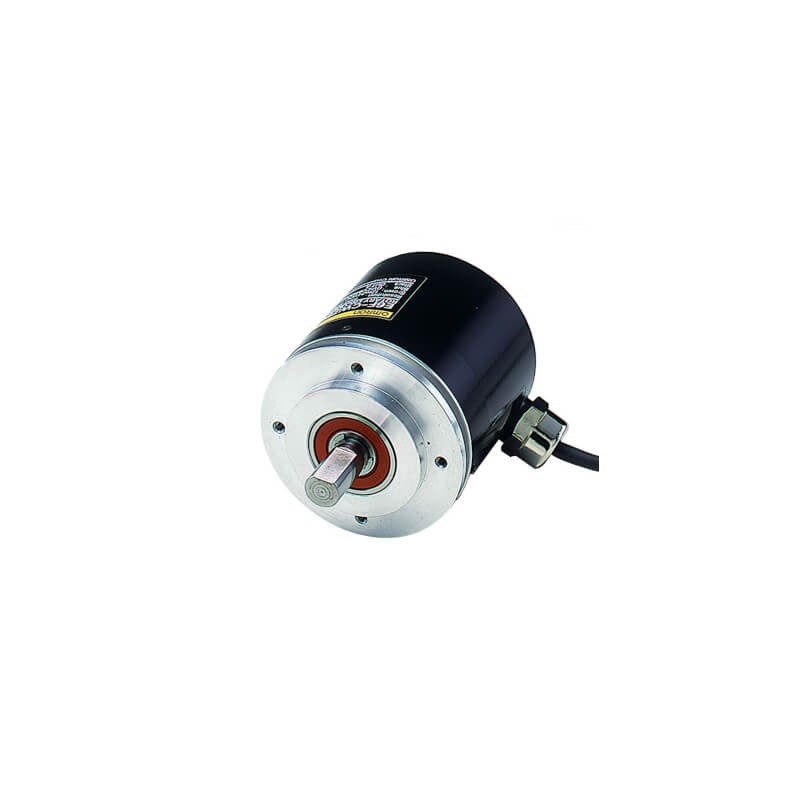

OMRON E6F-CWZ5G 500P/R 2M E6F 1032A E6FCWZ5G500PR2M - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

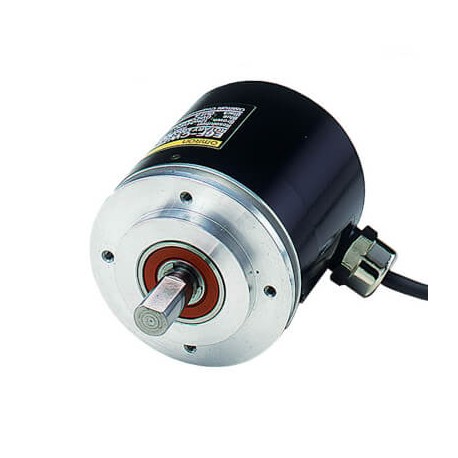

E6F-CWZ5G 500P/R 2M E6F 1032A E6FCWZ5G500PR2M OMRON Encoder, incremental, 500ppr, 12-24VDC, complimentary ou..

Reference: E6F-CWZ5G 500P/R 2M

Code: E6F 1032A

Catalog Number: E6FCWZ5G500PR2M

Manufacturer: OMRON

Description:

Encoder, incremental, 500ppr, 12-24VDC, complimentary output, 2m cable

Categories:

  • Sensors > Rotary encoder
  • OMRON > Encoders > E6F

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 511,97 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Specifications

ModelIncremental encoder
Construction size60 mm
Pulses per rotation500
Signal outputsA, B, Z
Shaft diameter10 mm
Power supply voltage12-24 V
Output typePNP/NPN
Connection methodCable
Cable length2 m

Accessories

E69-C10BAccessory encoder, shaft coupling for E6F encoder
E69-C10MAccessory encoder, shaft coupling dia. 10 mm, metal
E69-C610BShaft coupling for E6F-C encoder, Different end diameter

ETIM for 151250 Sensors (EC001486)

Feature nameExplosion safety category for dust (EF003998)
Feature valueNone
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature namePhysical measurement principle (EF008238)
Feature valueOptic
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP65
Feature nameStandard for interfaces (EF004017)
Feature valueOther
Feature nameModel (EF000010)
Feature valueIncremental encoder
Feature nameSignal outputs of rotary encoder (EF003590)
Feature valueA+B+0
Feature nameType of transmission medium (EF007513)
Feature valueOther
Feature nameType of electric connection (EF003961)
Feature valueCable
Feature nameHousing material (EF001596)
Feature valueZinc
Feature nameExplosion safety category for gas (EF003997)
Feature valueNone
Feature nameType of shaft encoder (EF006968)
Feature valueFull shaft
Feature nameProgrammable (EF000841)
Feature valueNo
Feature nameMax. pulses per revolution (EF003589)
Feature value500
Feature nameConstruction size (EF012282)
Feature value60 mm
Feature nameDiameter axle (EF007110)
Feature value9.985 mm
Feature nameNumber of steps per revolution (EF006938)
Feature value500
Feature nameNumber of revolutions (EF006943)
Feature value0
