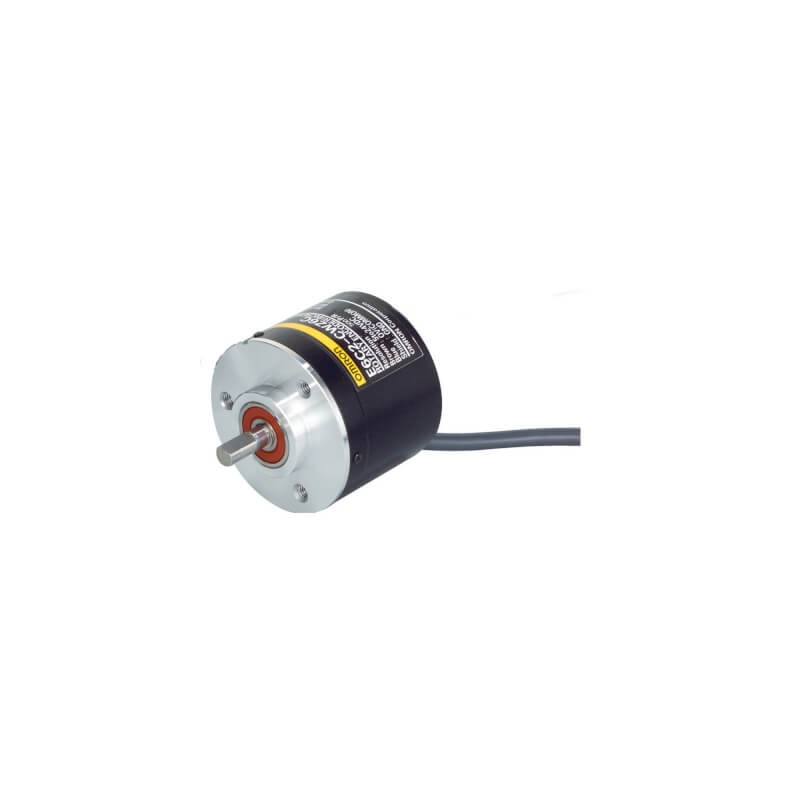

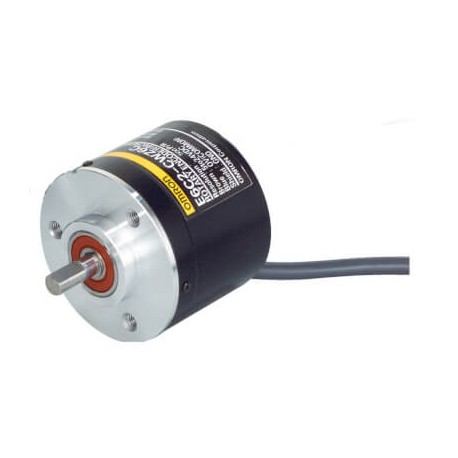

E6C2-CWZ5B-10 1000P/R 5M E6C27087M E6C2CWZ5B101000PR5MOMS OMRON Encoder, incremental, 1000 ppr, 12-24 VDC, P..
E6C2-CWZ5B-10 1000P/R 5M
E6C27087M
E6C2CWZ5B101000PR5MOMS
OMRON
Encoder, incremental, 1000 ppr, 12-24 VDC, PNP output, 5 m cable
Sensors > Rotary encoder
Encoders > E6C2-C
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
PDF
Best sellers
▲More info
▲Specifications
| Model | Incremental encoder |
| Construction size | 50 mm |
| Pulses per rotation | 1000 |
| Signal outputs | A, B, Z |
| Shaft diameter | 6 mm |
| Power supply voltage | 12-24 V |
| Output type | PNP |
| Connection method | Cable |
| Cable length | 5 m |
Accessories
| E69-C06B | Accessory encoder, shaft coupling for E6B2/E6C2-C/E6CP/E6D encoder | ||
| E69-C06M | Accessory encoder, shaft coupling dia. 6mm, metal | ||
| E69-C68B | Accessory encoder, shaft coupling dia. 6mm and 8mm |
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Degree of protection (NEMA) (EF011959) | Other |
| Physical measurement principle (EF008238) | Optic |
| Degree of protection (IP) (EF005474) | IP64 |
| Standard for interfaces (EF004017) | Other |
| Model (EF000010) | Incremental encoder |
| Signal outputs of rotary encoder (EF003590) | A+B+0 |
| Type of transmission medium (EF007513) | Other |
| Type of electric connection (EF003961) | Cable |
| Housing material (EF001596) | Aluminium |
| Explosion safety category for gas (EF003997) | None |
| Type of shaft encoder (EF006968) | Full shaft |
| Programmable (EF000841) | No |
| Max. pulses per revolution (EF003589) | 1000 |
| Construction size (EF012282) | 50 mm |
| Diameter axle (EF007110) | 5.979 mm |
| Number of steps per revolution (EF006938) | 1000 |
| Number of revolutions (EF006943) | 0 |
