> OMRON>Photoelectric sensors>E3Z>E3Z-R86 E3Z 4055C 685916 OMRON Eco-friendly DC 3h Mirror 4m PNP M8
Previous Product Next Product

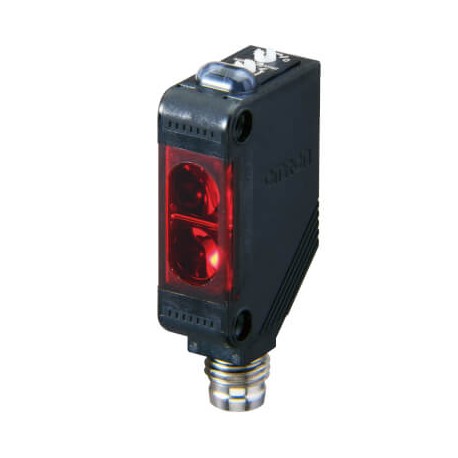

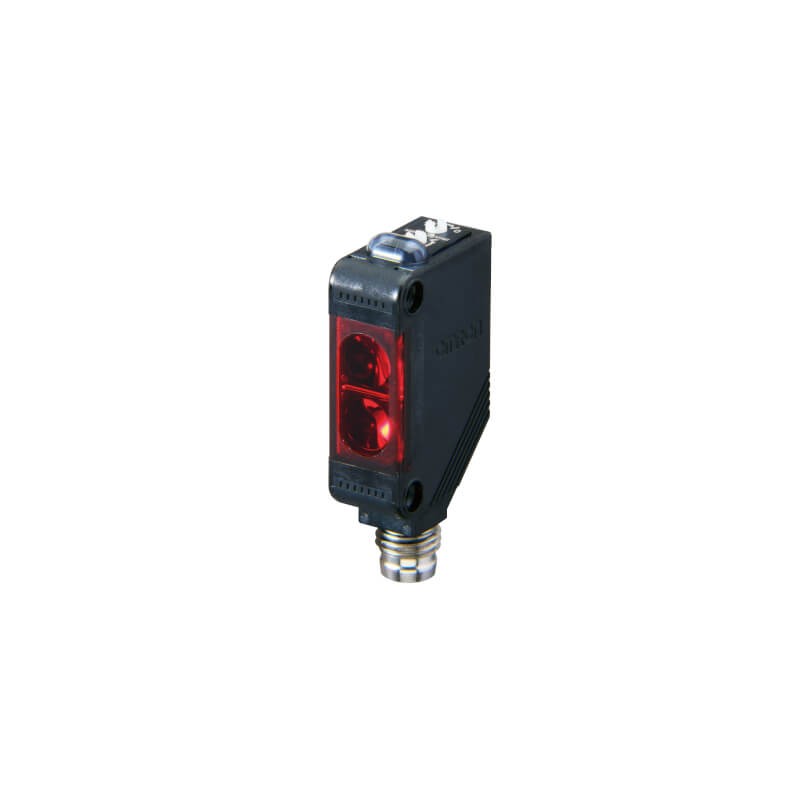

E3Z-R86 E3Z 4055C 685916 OMRON Eco-friendly DC 3h Mirror 4m PNP M8 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

E3Z-R86 E3Z 4055C 685916 OMRON Eco-friendly DC 3h Mirror 4m PNP M8

E3Z-R86

E3Z 4055C

E3ZR86OMI

OMRON

Available Ship on today

Photoelectric sensor, rectangular housing, red LED, retro-reflective, 4 m, PNP, Light-ON/Dark-ON, M8 4-pin connector

More details


Photoelectric sensors > E3Z

* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

Total price: $130.10
Unit price: $130.10

Quantity Price
1+$130.10
2+$111.66
3+$105.37
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Viewed products


More info

▲


Specifications

ShapeCuboid
Sensing methodRetro-reflective
Sensing distance4000 mm
Sensing distance (min.)100 mm
Setting methodManual adjustment
Connection methodConnector M8 - 4 pin
Output typePNP
Operation modeDark-ON, Light-ON
Response time1 ms
Material housingPBT
Thread sizeOther
Width10.8 mm
Height31 mm
Depth20 mm
Type of lightPolarized red light
Power supply voltage12-24 V
FeaturesM.S.R.
Degree of protection (IP)IP67

Accessories

E39-L104Mounting bracket for E3Z sensor, standard, vertical mounting
E39-L142Mounting Bracket, protective side wall (for E3Z)
E39-L150Sensor mounting Bracket for E3Z, 100mm high post
E39-L151Sensor mounting Bracket, for E3Z, 200mm high post
E39-L43Mounting bracket for E3Z sensor, side mounting
E39-L44Mounting bracket for E3Z sensor, rear mounting
E39-L93FHMounting bracket for E3Z, 3D telescope mounting
E39-L93FVBracket for E3Z sensor
E39-L93XY2 positioning rods and horizontal mounting bracket for E3Z, E3S-A, E3S-R1, E39-R1, E39-R3
E39-L96Optional reflector bracket for photoelectric sensor
E39-L98Protective metal cover for E3S-A/E3Z vertical sensor
E39-R1SAccessory photosensor, reflector, 40x60x7.5 mm, ABS & Acryllic
E39-R40Accessory photosensor, reflector, 84.5 x 84.5 x 8.7 mm, ABS & Acryllic
E39-R7Sensor reflector, round, 84mm dia
E39-RS1Reflective tape, self adhesive, 35 x 10 mm
E39-RS2Accessory photelectric sensor, reflective tape, 40 x 35 x 0.6, self adhesive
E39-RS25 5MAccessory photoelectric sensor, reflective tape, 25 mm x 5 m
E39-RS3Reflective tape, self-adhesive, 70x80mm
E39-RS50 5MAccessory photoelectric sensor, reflective tape, 50 mm x 5 m

Datasheet - PDF

▲
Title: Size: Type:
E3Z-R86 E3ZR86OMI E3Z 4055C EN_E3Z-T66.pdf 4 Mbytes E3Z-R86 E3ZR86OMI E3Z 4055C EN_E3Z-T66.pdf
E3Z-R86 E3ZR86OMI E3Z 4055C e308_e3z_dimension_drawings_sensors_and_reflectors_datasheet_en.pdf 195 Kbytes E3Z-R86 E3ZR86OMI E3Z 4055C EN_E3Z-T66.pdf
