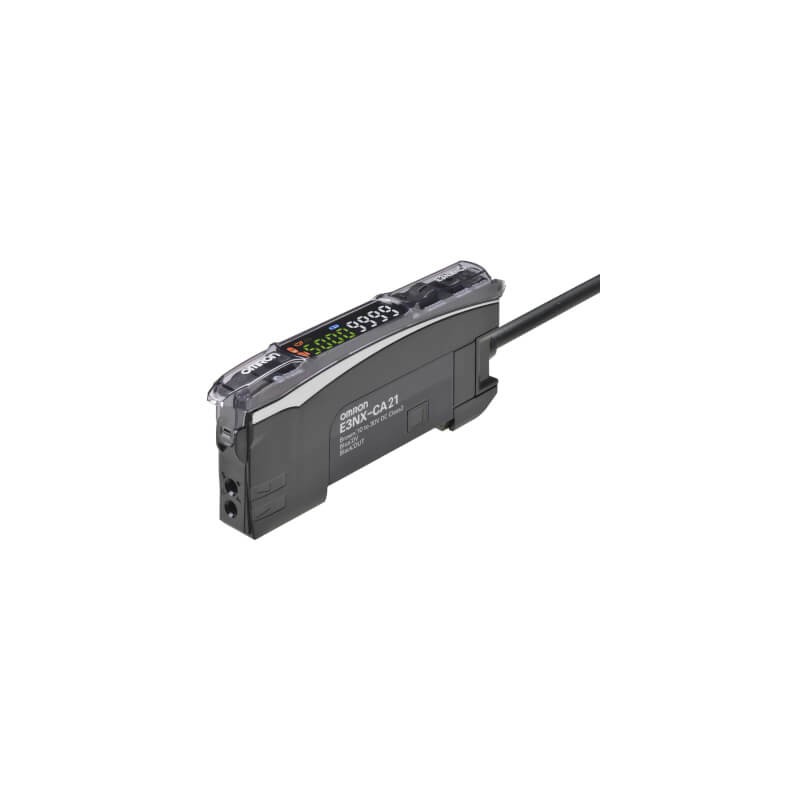

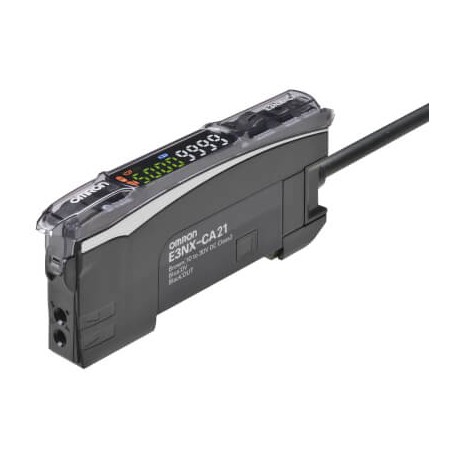

E3NX-CA51 2M E3NX0005B E3NXCA512M OMRON Amplifier Detection Marks Advanced Color white LED PNP Smart Tuning,..
E3NX-CA51 2M
E3NX0005B
E3NXCA512M
OMRON
Amplifier Detection Marks Advanced Color white LED PNP Smart Tuning, cable 2m
Fiber amplifier, advanced model, color mark detection white LED, PNP output, smart tuning, 2m cable
Sensors > Contrast sensor
Advanced sensors > N-Smart
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Voltage type (EF000187) | DC |
| Construction type housing (EF004008) | Cuboid |
| Laser protection class (EF004027) | Other |
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | Other |
| Setting procedure (EF003994) | Teach-In |
| Material of optical surface (EF004134) | Other |
| Type of switch function (EF003963) | Programmable/configurable |
| Type of electric connection (EF003961) | Cable |
| Material fibre optics core (EF004137) | Plastic |
| Housing material (EF001596) | Plastic |
| Type of light (EF004029) | White light |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| Type of switching output (EF003962) | PNP |
| Operation agent-safety class (EF003982) | Safety class 0 |
| Analogue output -10 V ... +10 V (EF006809) | No |
| With fibre optics connection (EF004050) | Yes |
| Analogue output 0 V ... 10 V (EF006807) | No |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| With exchange lens (EF004053) | No |
| With blanking function (EF003968) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| With time function (EF003582) | Yes |
| AWG-number (EF007010) | 24 |
| No-load current (EF004028) | 0.1 mA |
| Number of semiconductor outputs with signalling function (EF003945) | 2 |
| Width sensor (EF007094) | 10 mm |
| Height of sensor (EF007283) | 33.5 mm |
| Max. output current (EF001315) | 100 mA |
| Length of sensor (EF007334) | 71.8 mm |
| Switching frequency (EF003587) | 10000 Hz |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Rated control supply voltage DC (EF003980) | 10 V |
| Ambient temperature (EF002386) | -25 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| E3NX-CA51 2M E3NXCA512M E3NX0005B EN_E3NX-CA51-2M.pdf | 1 Mbytes |
|
