E3JM-DS70M4T-G E3JM2102G E3JMDS70M4TGOMS,1 OMRON Photoelectric sensor, diffuse, 700 mm, AC/DC, relay, timer ..
E3JM-DS70M4T-G
E3JM2102G
E3JMDS70M4TGOMS.1
OMRON

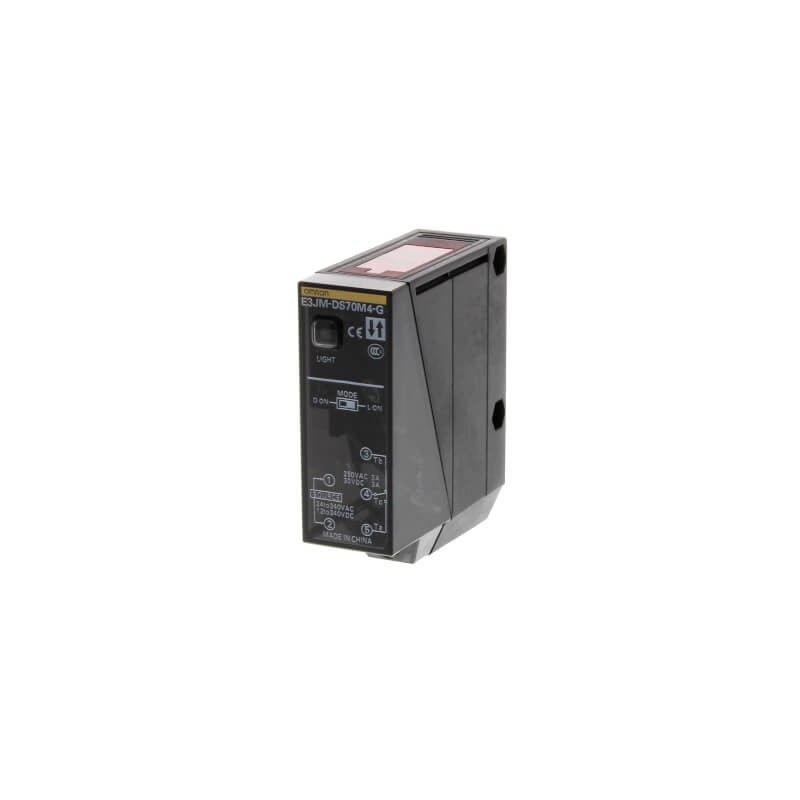

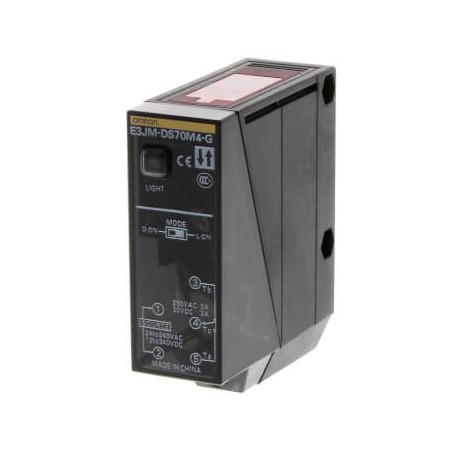

Photoelectric sensor, diffuse, 700 mm, AC/DC, relay, timer 5 s, conduit size PG13.5
Sensors > Diffuse reflective photoelectric sensor
Photoelectric sensors > E3JM
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP66 |
| Material of optical surface (EF004134) | Plastic |
| Type of interface for safety communication (EF003956) | Other |
| Housing material (EF001596) | Plastic |
| Operation agent-safety class (EF003982) | Safety class 2 |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Voltage type (EF000187) | AC/DC |
| Construction type housing (EF004008) | Cuboid |
| Laser protection class (EF004027) | None |
| Setting procedure (EF003994) | Manual adjustment |
| Sensing mode (EF007503) | Light-/dark switching |
| Type of switch function (EF003963) | Change-over contact (NO/NC) |
| Type of electric connection (EF003961) | Screw connection |
| Type of light (EF004029) | Infrared light |
| Material of cable sheath (EF004136) | Other |
| Type of switching output (EF003962) | Relay contact |
| With communication interface RS-485 (EF007314) | No |
| With communication interface SSD (EF007315) | No |
| With communication interface SSI (EF007316) | No |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| With communication interface RS-232 (EF007312) | No |
| With monitoring function downstream switching devices (EF004052) | No |
| With communication interface INTERBUS (EF007310) | No |
| With communication interface CANOpen (EF007307) | No |
| With communication interface Ethernet (EF007309) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| With communication interface AS-Interface (EF007306) | No |
| With restart blockage (EF004054) | No |
| Analogue output -10 V ... +10 V (EF006809) | No |
| Analogue output 0 V ... 10 V (EF006807) | No |
| With communication interface DeviceNet (EF007308) | No |
| With reflector (EF007448) | No |
| With communication interface PROFIBUS (EF007311) | No |
| Suitable for safety functions (EF001597) | No |
| With communication interface analogue (EF007305) | No |
| With communication interface RS-422 (EF007313) | No |
| With time function (EF003582) | Yes |
| Pre failure notice (EF004129) | No |
| With other analogue output (EF007485) | No |
| Number of semiconductor outputs with signalling function (EF003945) | 0 |
| Height of sensor (EF007283) | 80 mm |
| Switching frequency (EF003587) | 16 Hz |
| Number of contact energized outputs with signalling function (EF003946) | 1 |
| Number of protected contact energized outputs (EF003952) | 0 |
| Max. switching distance (EF007367) | 700 mm |
| AWG-number (EF007010) | 22 |
| Light dot (EF004030) | 100 mm² |
| Wavelength of the sensor (EF004132) | 950 nm |
| Response time (EF004094) | 30 ms |
| Number of protected semiconductor outputs (EF003951) | 0 |
| Width sensor (EF007094) | 25 mm |
| Max. output current (EF001315) | 3000 mA |
| Length of sensor (EF007334) | 75 mm |
| Rated control supply voltage AC 50 Hz (EF003978) | 100 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 100 V |
| Operating distance (EF004121) | 0 mm |
| Rated control supply voltage DC (EF003980) | 24 V |
| Ambient temperature (EF002386) | -25 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 28 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| E3JM-DS70M4T-G E3JMDS70M4TGOMS.1 E3JM2102G EN_E3JM-DS70M4T-G.pdf | 1 Mbytes |
|
