OMRON E3JM-DS70M4 E3JM2098E E3JMDS70M4OMS.1 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

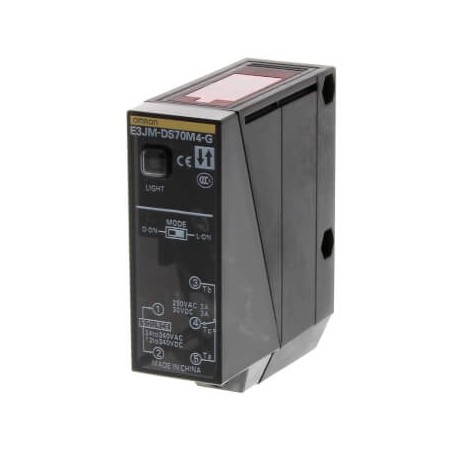

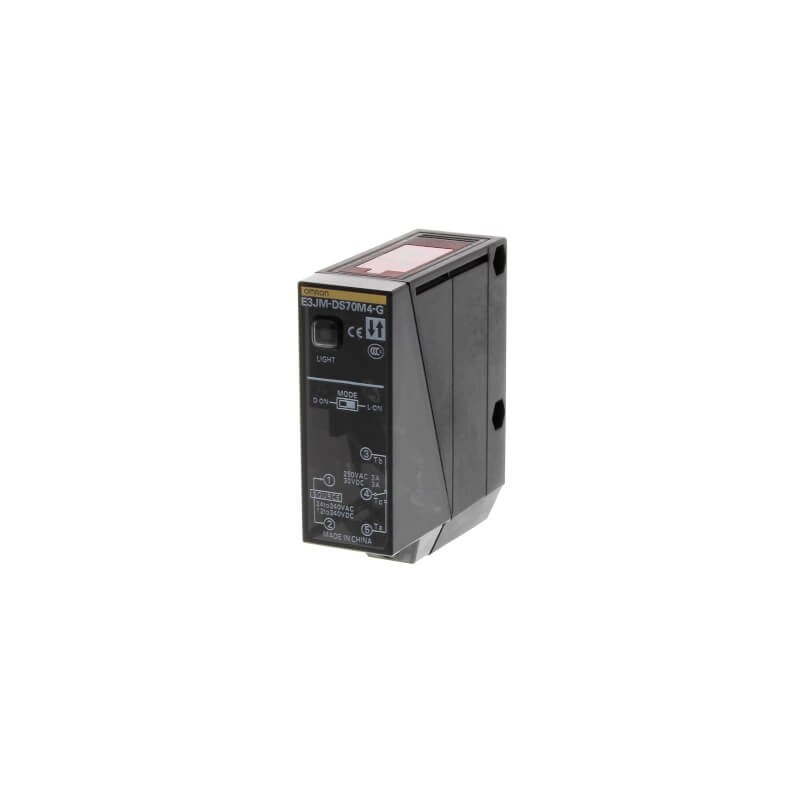

E3JM-DS70M4 E3JM2098E E3JMDS70M4OMS,1 OMRON Photoelectric sensor, diffuse, 700 mm, AC/DC, relay

Reference: E3JM-DS70M4

Code: E3JM2098E

Catalog Number: E3JMDS70M4OMS.1

Manufacturer: OMRON

Description:

Photoelectric sensor, diffuse, 700 mm, AC/DC, relay

Categories:

  • Sensors > Diffuse reflective photoelectric sensor
  • OMRON > Photoelectric sensors > E3JM

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 108,01 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

ShapeCuboidSensing methodDiffuse reflectiveSensing distance700 mmSetting methodManual adjustmentConnection methodTerminal blockOutput typeRelayOperation modeDark-ON, Light-ONResponse time30 msMaterial housingABSThread sizeOtherProduct Width (unpacked)25 mmProduct Height (unpacked)65 mmProduct Depth (unpacked)75 mmType of lightInfrared lightPower supply voltage12-240 VSupply voltage AC100-240 VSupply voltage DC24-240 VFeaturesConduit PF1/2, Multi voltage power supply

ETIM for 720666 Sensors (EC001821)

Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP66
Feature nameMaterial of optical surface (EF004134)
Feature valuePlastic
Feature nameType of interface for safety communication (EF003956)
Feature valueOther
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameOperation agent-safety class (EF003982)
Feature valueSafety class 2
Feature nameExplosion safety category for gas (EF003997)
Feature valueNone
Feature nameExplosion safety category for dust (EF003998)
Feature valueNone
Feature nameVoltage type (EF000187)
Feature valueAC/DC
Feature nameConstruction type housing (EF004008)
Feature valueCuboid
Feature nameLaser protection class (EF004027)
Feature valueNone
Feature nameSetting procedure (EF003994)
Feature valueManual adjustment
Feature nameSensing mode (EF007503)
Feature valueLight-/dark switching
Feature nameType of switch function (EF003963)
Feature valueChange-over contact (NO/NC)
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameType of light (EF004029)
Feature valueInfrared light
Feature nameMaterial of cable sheath (EF004136)
Feature valueOther
Feature nameType of switching output (EF003962)
Feature valueRelay contact
Feature nameWith communication interface RS-485 (EF007314)
Feature valueNo
Feature nameWith communication interface SSD (EF007315)
Feature valueNo
Feature nameWith communication interface SSI (EF007316)
Feature valueNo
Feature nameAnalogue output 0 mA ... 20 mA (EF006808)
Feature valueNo
Feature nameWith communication interface RS-232 (EF007312)
Feature valueNo
Feature nameWith monitoring function downstream switching devices (EF004052)
Feature valueNo
Feature nameWith communication interface INTERBUS (EF007310)
Feature valueNo
Feature nameWith communication interface CANOpen (EF007307)
Feature valueNo
Feature nameWith communication interface Ethernet (EF007309)
Feature valueNo
Feature nameAnalogue output 4 mA ... 20 mA (EF006810)
Feature valueNo
Feature nameWith communication interface AS-Interface (EF007306)
Feature valueNo
Feature nameWith restart blockage (EF004054)
Feature valueNo
Feature nameAnalogue output -10 V ... +10 V (EF006809)
Feature valueNo
Feature nameAnalogue output 0 V ... 10 V (EF006807)
Feature valueNo
Feature nameWith communication interface DeviceNet (EF007308)
Feature valueNo
Feature nameWith reflector (EF007448)
Feature valueNo
Feature nameWith communication interface PROFIBUS (EF007311)
Feature valueNo
Feature nameSuitable for safety functions (EF001597)
Feature valueNo
Feature nameWith communication interface analogue (EF007305)
Feature valueNo
Feature nameWith communication interface RS-422 (EF007313)
Feature valueNo
Feature nameWith time function (EF003582)
Feature valueNo
Feature namePre failure notice (EF004129)
Feature valueNo
Feature nameWith other analogue output (EF007485)
Feature valueNo
Feature nameNumber of semiconductor outputs with signalling function (EF003945)
Feature value0
Feature nameHeight of sensor (EF007283)
Feature value80 mm
Feature nameSwitching frequency (EF003587)
Feature value16 Hz
Feature nameNumber of contact energized outputs with signalling function (EF003946)
Feature value1
Feature nameNumber of protected contact energized outputs (EF003952)
Feature value0
Feature nameMax. switching distance (EF007367)
Feature value700 mm
Feature nameAWG-number (EF007010)
Feature value22
Feature nameLight dot (EF004030)
Feature value100 mm²
Feature nameWavelength of the sensor (EF004132)
Feature value950 nm
Feature nameResponse time (EF004094)
Feature value30 ms
Feature nameNumber of protected semiconductor outputs (EF003951)
Feature value0
Feature nameWidth sensor (EF007094)
Feature value25 mm
Feature nameMax. output current (EF001315)
Feature value3000 mA
Feature nameLength of sensor (EF007334)
Feature value75 mm
Feature nameRated control supply voltage AC 50 Hz (EF003978)
Feature value100 V
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value100 V
Feature nameOperating distance (EF004121)
Feature value0 mm
Feature nameRated control supply voltage DC (EF003980)
Feature value24 V
Feature nameAmbient temperature (EF002386)
Feature value-25 °C
