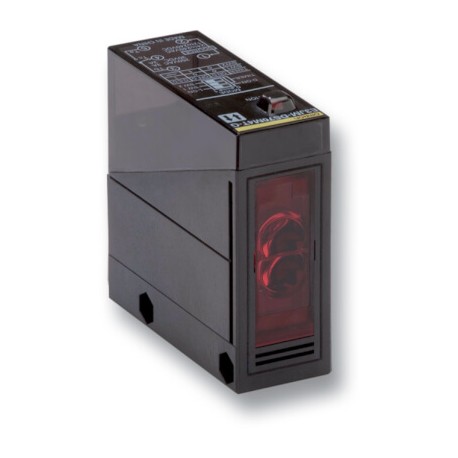

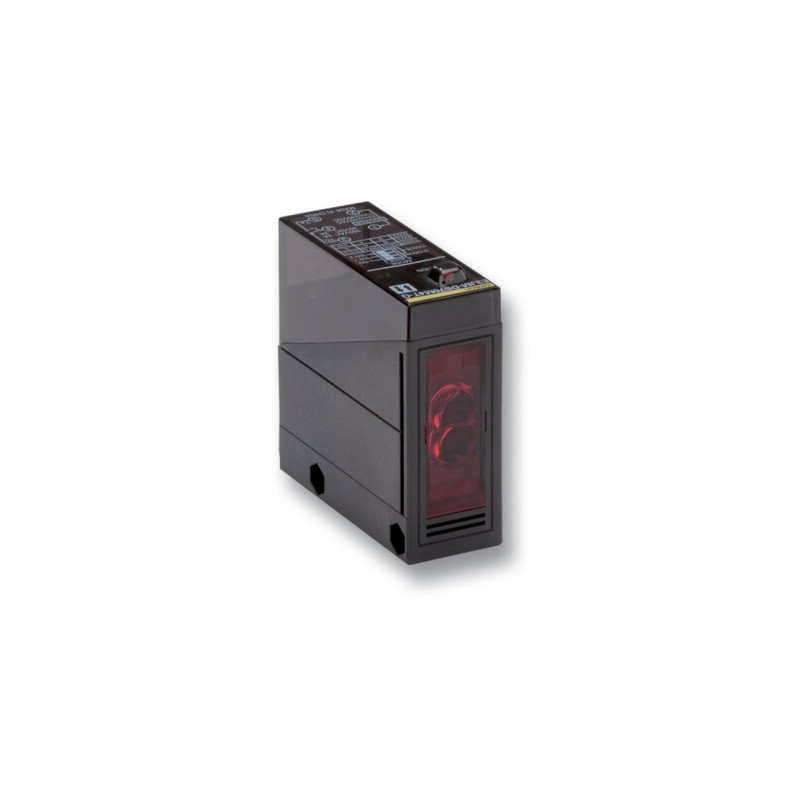

E3JM-10M4-N 323343 E3JM7087G OMRON Multialim. Barrier 10m Relay PF1/2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

E3JM-10M4-N 323343 E3JM7087G OMRON Multialim. Barrier 10m Relay PF1/2

E3JM-10M4-N

323343

E3JM7087G

OMRON

Available Ship on today

Multialim. Barrier 10m Relay PF1/2

More details


Photoelectric sensors > E3JM

* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Features

Multi voltage photoelectric sensor in plastic housing with timer function

The square sized E3JM family provides 12 to 240 VDC and 24 to 240 VAC power supply voltage, an enhanced sensing distance and a timer function.

  • 12 to 240 VDC and 24 to 240 VAC supply voltage
  • Relay or solid state relay output
  • Timer function

Ordering information

Sensing method

Appearance

Connection
method

Sensing distance

Operation mode

Output
configuration

Functions

Order code

Conduit socket

thread size:

PF1/2

Conduit socket thread size:

PG13.5

Conduit socket thread size:
1/2-14NPT
UL-listed models

Through-beam

(Emitter +
Receiver)1


Terminal block

10 m

Light-ON
Dark-ON
(switch
selectable)

Relay

−

E3JM-10M4-NN

E3JM-10M4-G-NN

E3JM-10M4-NN-US

Timer

E3JM-10M4T-NN

E3JM-10M4T-G-NN

E3JM-10M4T-NN-US

DC SSR

−

E3JM-10S4-NN

E3JM-10S4-G-NN

E3JM-10S4-NN-US

Timer

E3JM-10S4T-NN

E3JM-10S4T-G-NN

E3JM-10S4T-NN-US

Retro-reflective
with MSR function


E39-R1 (provided)

4 m

Relay

−

E3JM-R4M4

E3JM-R4M4-G

E3JM-R4M4-US

Timer

E3JM-R4M4T

E3JM-R4M4T-G

E3JM-R4M4T-US

DC SSR

−

E3JM-R4S4

E3JM-R4S4-G

E3JM-R4S4-US

Timer

E3JM-R4S4T

E3JM-R4S4T-G

E3JM-R4S4T-US

Diffuse-reflective


700 mm

Relay

−

E3JM-DS70M4

E3JM-DS70M4-G

E3JM-DS70M4-US

Timer

E3JM-DS70M4T

E3JM-DS70M4T-G

E3JM-DS70M4T-US

DC SSR

−

E3JM-DS70S4

E3JM-DS70S4-G

E3JM-DS70S4-US

Timer

E3JM-DS70S4T

E3JM-DS70S4T-G

E3JM-DS70S4T-US

Specifications

Sensing method

Through-beam model

Retro-reflective model
(with MSR function)

Diffuse-reflective model

Item

Model

E3JM-10⬜4(T)-NN

E3JM-10⬜4(T)-G-NN

E3JM-10⬜4(T)-NN-US

E3JM-R4⬜4(T)

E3JM-R4⬜4(T)-G

E3JM-R4⬜4(T)-US

E3JM-DS70⬜4(T)

E3JM-DS70⬜4(T)-G

E3JM-DS70⬜4(T)-US

Sensing distance

10 m

4 m (When using E39-R1)

White paper (200 × 200 mm):
700 mm

Standard sensing object

Opaque: 14.8-mm dia. min.

Opaque: 75-mm dia. min.

---

Light source (wavelength)

Infrared LED (950 nm)

Red LED (660 nm)

Infrared LED (950 nm)

Power supply voltage

12 to 240 VDC±10%, ripple (p-p): 10% max.

24 to 240 VAC±10%, 50/60 Hz

Response time

Relay output

(E3JM-⬜⬜M4 (T)(-⬜) models) Operate or reset: 30 ms max.

DC SSR output

(E3JM-⬜⬜S4 (T)(-⬜) models) Operate or reset: 5 ms max.

Ambient temperature range

Operating: −25°C to 55°C,
Storage: −30°C to 70°C (with no icing or condensation)

Degree of protection

IEC 60529: IP66

Connection method

Terminal block

Material

Case

ABS (Acrylonitril Butadiene Styrene)

Lens

Methacrylic resin

Cover

Polycarbonate

Mounting Bracket

Iron
1.Through-beam Sensors are sold in sets that include both the Emitter and Receiver. An order for the Emitter or Receiver alone cannot be accepted.

Datasheet - PDF

▲
Title: Size: Type:
E3JM-10M4-N E3JM7087G 323343 e3jm_datasheet_en.pdf 941 Kbytes E3JM-10M4-N E3JM7087G 323343 e3jm_datasheet_en.pdf
