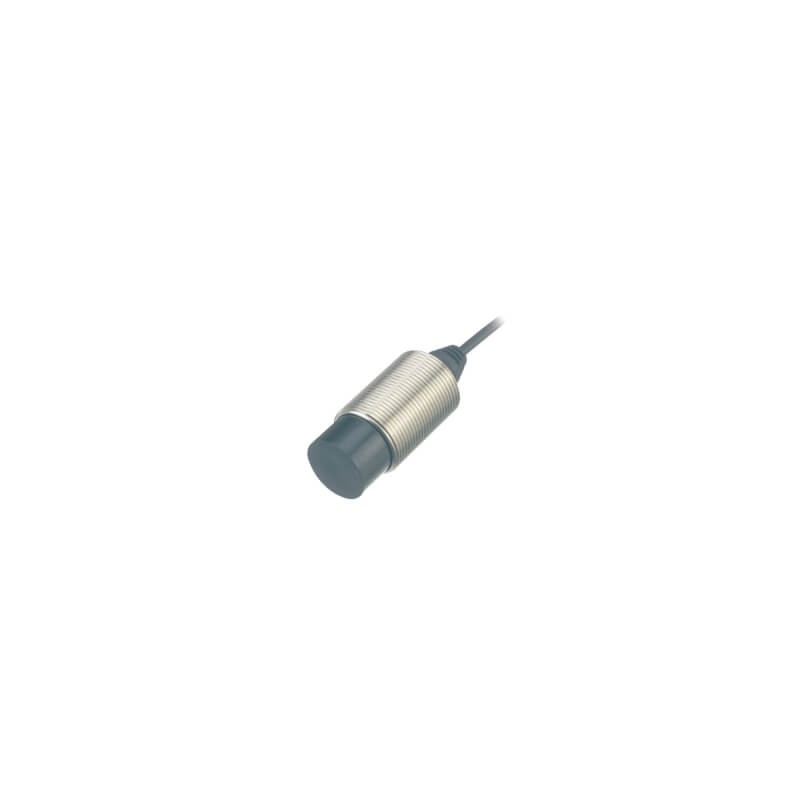

E2NC-EM07M E2NC0021H E2NCEM07M OMRON Sensor head non-shielded, screw M18, distance 7 mm, repeat accuracy 5 á..
E2NC-EM07M
E2NC0021H
E2NCEM07M
OMRON
Sensor head non-shielded, screw M18, distance 7 mm, repeat accuracy 5 ám (for use with E2NC amplifier)
Sensor head, unshielded, M18 housing, sensing distance 7 mm, repeat accuracy 5 µm, 2.6 m standard cable
Sensors > Inductive proximity switch
Advanced sensors > Other Advanced Sensors
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA) (EF011959) | Other |
| Mechanical mounting condition for sensor (EF004041) | Not flat |
| Type of interface for safety communication (EF003956) | None |
| Housing material (EF001596) | Metal |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Voltage type (EF000187) | DC |
| Construction type housing (EF004008) | Cylinder, screw-thread |
| Coating housing (EF001601) | Other |
| Type of actuation (EF006949) | Metallic Target |
| Type of switch function (EF003963) | Programmable/configurable |
| Type of electric connection (EF003961) | Cable with connector |
| Type of interface (EF006977) | None |
| Type of switching output (EF003962) | PNP/NPN |
| Cascadable (EF000507) | No |
| With monitoring function downstream switching devices (EF004052) | No |
| Compression-resistant (EF007106) | No |
| Suitable for safety functions (EF001597) | No |
| Number of semiconductor outputs with signalling function (EF003945) | 2 |
| Switching frequency (EF003587) | 3300 Hz |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Number of protected contact energized outputs (EF003952) | 0 |
| Number of protected semiconductor outputs (EF003951) | 0 |
| Diameter sensor (EF007111) | 18 mm |
| Switching distance (EF003647) | 7 mm |
| Length of sensor (EF007334) | 46.3 mm |
| Supply voltage (EF004127) | 10 V |
| Rated control supply voltage DC (EF003980) | 10 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| E2NC-EM07M E2NCEM07M E2NC0021H EN_E2NC-EM07M.pdf | 7 Mbytes |
|
