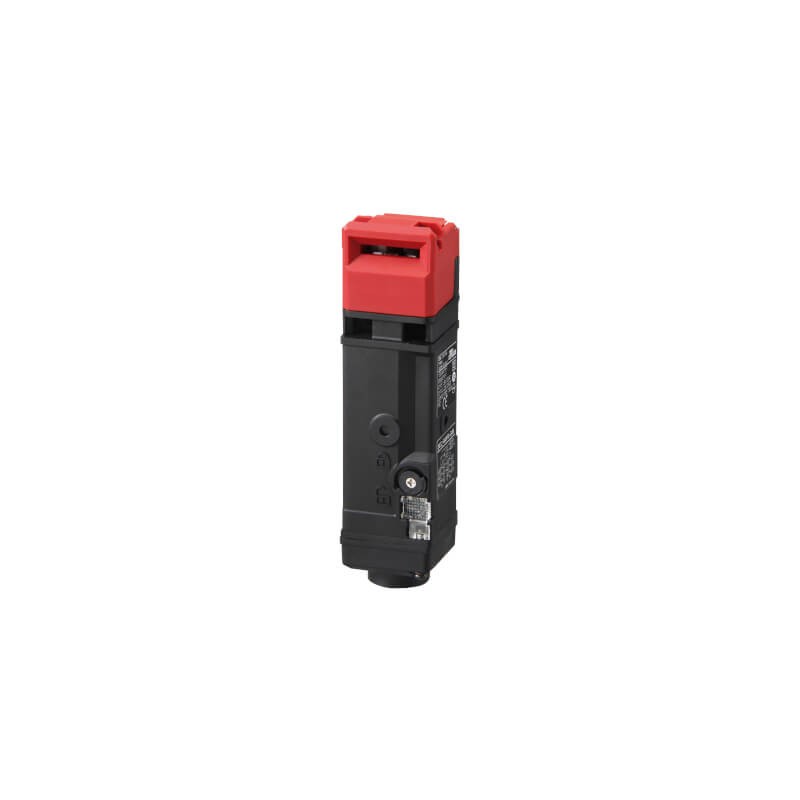

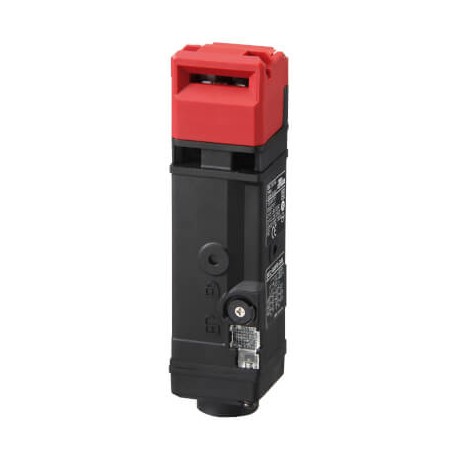

D4SL-N2HFA-DN D4SL2122A D4SLN2HFADN OMRON Guard lock safety door switch G1/2 coduit, 3nc contact forms+2NC, ..
D4SL-N2HFA-DN
D4SL2122A
D4SLN2HFADN
OMRON
Guard lock safety door switch G1/2 coduit, 3nc contact forms+2NC, resin head, solenoid release, indicator, connector
Sensors > Position switch with guard locking
Safety > D4DL/DS/DH/DR/GL/NL/NH/NS
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Specifications
| Door switch type | Key-operated |
| Guard-lock | |
| Material housing | Plastic |
| Material head | Resin |
| Ambient temperature (operating) | -10-55 °C |
| Holding force | 1300 N |
| Direction of operation | Adjustable |
| Door contacts NC | 3 |
| Door contacts NO | 0 |
| Lock monitor contacts NC | 2 |
| Lock monitor contacts NO | 0 |
| Lock/Release key type | Standard key |
| Lock/Release key position | Front + Back |
| Lock/Release key material | Metal |
| Solenoid voltage | 24 V |
| With LED indicator | |
| Connection method | System connector |
| Cable length | 0 m |
| Degree of protection (IP) | IP67 |
| Conduit size | G1/2 |
| Number of conduits | 1 |
| Shape | Cuboid |
| Overall length | 155 mm |
| Height of sensor | 39 mm |
| Width sensor | 39 mm |
| Lock/Release logic | Power to unlock (Mechanical lock) |
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Construction type housing (EF004008) | Cuboid |
| Degree of protection (NEMA) (EF011959) | 4X |
| Coating housing (EF001601) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Type of interface for safety communication (EF003956) | None |
| Type of electric connection (EF003961) | Other |
| Type of interface (EF006977) | None |
| Explosion safety category for gas (EF003997) | None |
| With auxiliary release (EF011964) | Yes |
| With status indication (EF001602) | Yes |
| Suitable for safety functions (EF001597) | Yes |
| With escape release (EF007172) | Yes |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Guard locking force (EF007552) | 1300 N |
| Rated operation current Ie at DC-13, 125 V (EF007085) | 0.22 A |
| Number of safety auxiliary contacts (EF006940) | 0 |
| Number of contacts as normally closed contact (EF008255) | 5 |
| Rated operation current Ie at AC-15, 125 V (EF007082) | 1.5 A |
| Width sensor (EF007094) | 39 mm |
| Height of sensor (EF007283) | 39 mm |
| Length of sensor (EF007334) | 155 mm |
| Ambient temperature during operating (EF007515) | -10 °C |
| Rated control supply voltage magnet drive DC (EF007070) | 20.4 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| D4SL-N2HFA-DN D4SLN2HFADN D4SL2122A EN_D4SL-N2NFA-D.pdf | 6 Mbytes |
|
| D4SL-N2HFA-DN D4SLN2HFADN D4SL2122A c146_d4sl_n_guard_lock_safety_door_switch_datasheet_en.pdf | 4 Mbytes |
|
