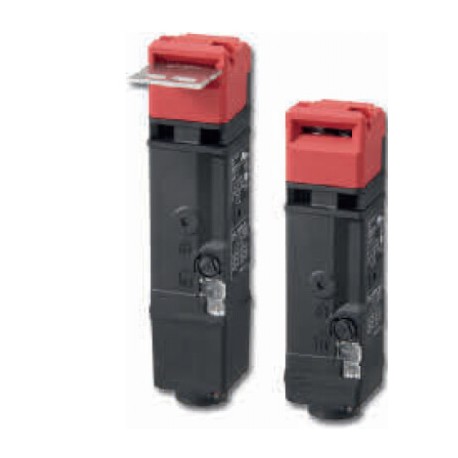

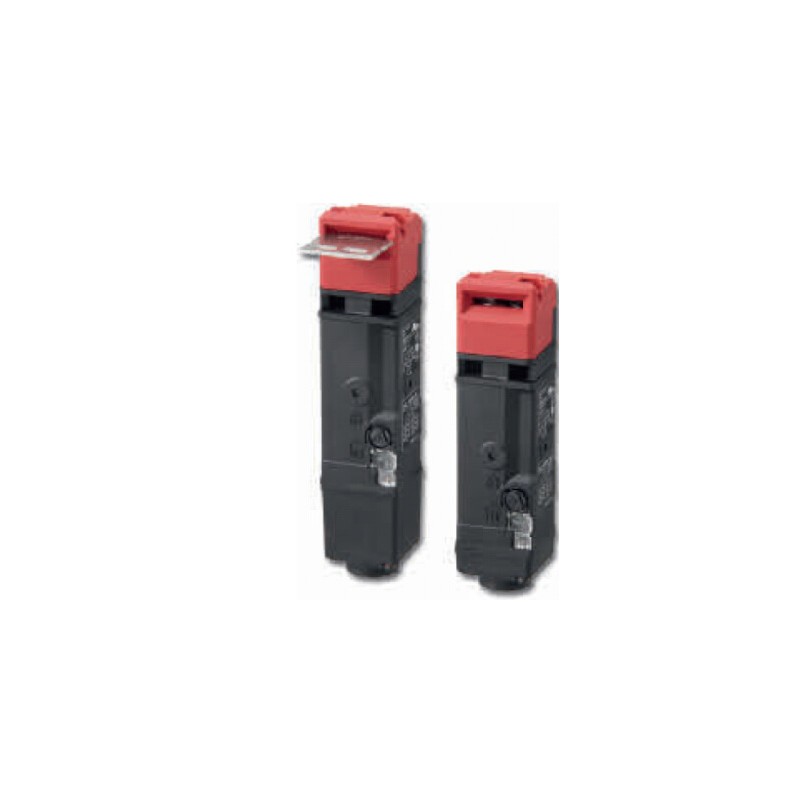

D4SL-N2HFA-D D4SL2121C D4SLN2HFAD OMRON Mechanical locking 3nc contact forms + 2NC IP67 G1/2 LED Plastic Ter..
D4SL-N2HFA-D
D4SL2121C
D4SLN2HFAD
OMRON
Mechanical locking 3nc contact forms + 2NC IP67 G1/2 LED Plastic Terminals
Mechanical Lock 3NC + 2NC IP67 G1/2 LED Plastic Terminals
Sensors > Position switch with guard locking
Safety > D4DL/DS/DH/DR/GL/NL/NH/NS
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Specs
| Door switch type | Key-operated |
| Guard-lock | |
| Material housing | Plastic |
| Material head | Resin |
| Ambient temperature (operating) | -10-55 °C |
| Holding force | 1300 N |
| Direction of operation | Adjustable |
| Door contacts NC | 3 |
| Door contacts NO | 0 |
| Lock monitor contacts NC | 2 |
| Lock monitor contacts NO | 0 |
| Lock/Release key type | Standard key |
| Lock/Release key position | Front + Back |
| Lock/Release key material | Metal |
| Solenoid voltage | 24 V |
| LED indicator | |
| Connection method | Terminal block |
| Cable length | 0 m |
| Degree of protection (IP) | IP67 |
| Conduit size | G1/2 |
| Number of conduits | 1 |
| Switch action | Slow action |
| Shape | Cuboid |
| Overall length of sensor | 179.9 mm |
| Height of sensor | 179.9 mm |
| Width of sensor | 39 mm |
| Switch without actuator | |
| Lock/Release logic | Power to unlock (Mechanical lock) |
accessories
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| D4SL-N2HFA-D D4SLN2HFAD D4SL2121C c146_d4sl_n_guard_lock_safety_door_switch_datasheet_en.pdf | 4 Mbytes |
|
