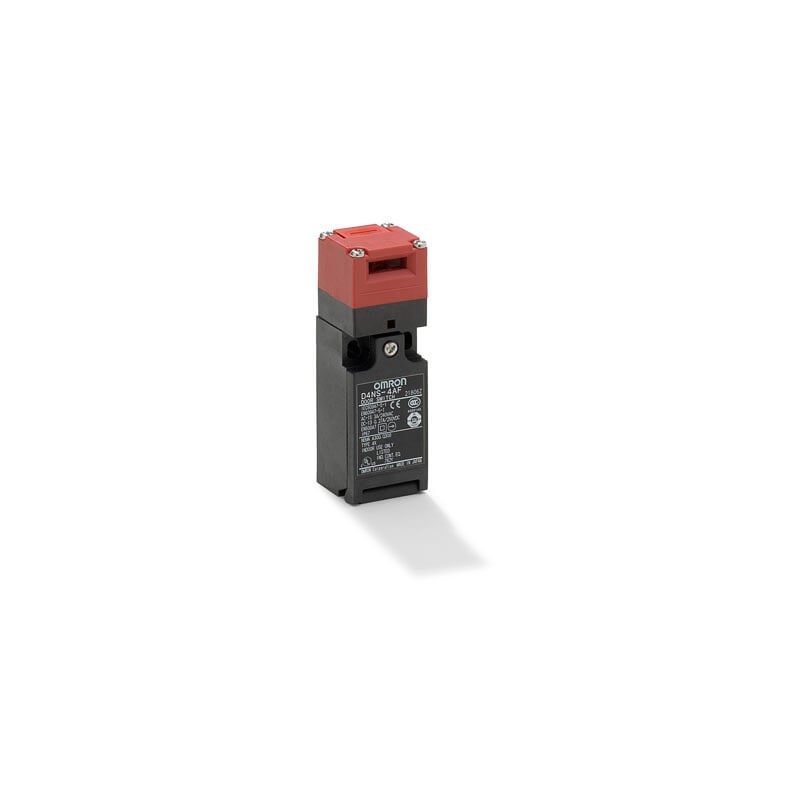

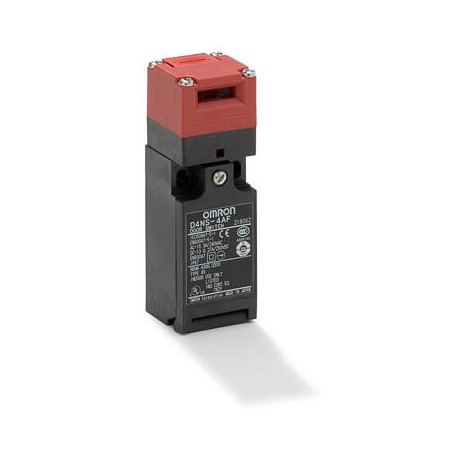

D4NS-8FF D4NS0048D D4NS8FF OMRON Plastic 2NC/1NO M20 2 entries

Reference: D4NS-8FF

Code: D4NS0048D

Catalog Number: D4NS8FF

Manufacturer: OMRON

Description:

Plastic 2NC/1NO M20 2 entries
Plastic 2NC/1NA M20 2 inputs
Safety interlock switch, 2-Conduit, 2NC/1NO, MBB Contacts, M20

Categories:

  • Sensors > Position switch with separate actuator
  • OMRON > Safety > D4DL/DS/DH/DR/GL/NL/NH/NS

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 42,22 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Features

Key-operated door switch in plastic housing

The D4NS line-up includes three-contact models with 2NC/1NC and 3NC contact forms in addition to the previous contact forms, 1NC/1NO and 2NC. Models with M12 connectors and conduit opening, such as M20, are also available.

  • Line-up with three contacts: 2NC/1NC and 3NC contact forms
  • Line-up with two contacts 1NC/1NO and 2NC
  • M12 connector types available
  • Standardised gold-clad contacts for high contact reliability
  • Applicable for standard loads and micro loads

Ordering information

Switches (with approved direct opening contacts)

Type

Contact configuration

Conduit opening/connector

Order code

1-conduit

Slow-action

1NC/1NO

M20

D4NS-4AF

2NC

M20

D4NS-4BF

2NC/1NO

M20

D4NS-4CF

3NC

M20

D4NS-4DF

Slow-action MBB contact

1NC/1NO

M20

D4NS-4EF

2NC/1NO

M20

D4NS-4FF

Operation keys (order separately)

Type

Order code

Horizontal mounting


D4DS-K1

Vertical mounting


D4DS-K2

Type

Order code

Adjustable mounting (horizontal)


D4DS-K3

Adjustable mounting
(horizontal/vertical)


D4DS-K5

Specifications

Degree of protection

IP67 (EN60947-5-1) (This applies for the switch only. The degree of protection for the key hole is IP00.)

Durability1

Mechanical

1,000,000 operations min.

Electrical

500,000 operations min. for a resistive load of 3 A at 250 VAC

300,000 operations min. for a resistive load of 10 A at 250 VAC

Operating speed

0.05 to 0.5 m/s

Operating frequency

30 operations/minute max.

Direct opening force2

60 N min.

Direct opening travel2

10 mm min.

Minimum applicable load

Resistive load of 1 mA at 5 VDC (N-level reference value)

Protection against electric shock

Class II (double insulation)

Pollution degree (operating environment)

3 (EN60947-5-1)

Contact gap

2×2 mm min

Conditional short-circuit current

100 A (EN60947-5-1)

Rated open thermal current (Ith)

10 A (EN60947-5-1)

Ambient temperature

Operating:-30°C to 70°C with no icing

Note:The above values are initial values.

1.The durability is for an ambient temperature of 5°C to 35°C and an ambient humidity of 40 to 70%. For more details, consult your Omron representative.

2.These figures are minimum requirements for safe operation.

ETIM for 163115 Sensors (EC002592)

Feature nameExplosion safety category for dust (EF003998)
Feature valueNone
Feature nameConstruction type housing (EF004008)
Feature valueCuboid
Feature nameType of switching contact (EF003591)
Feature valueSlow-action switch
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP67
Feature nameType of interface for safety communication (EF003956)
Feature valueNone
Feature nameType of electric connection (EF003961)
Feature valueCable entry metrical
Feature nameType of interface (EF006977)
Feature valueNone
Feature nameHousing material (EF001596)
Feature valueOther
Feature nameExplosion safety category for gas (EF003997)
Feature valueNone
Feature nameWith status indication (EF001602)
Feature valueNo
Feature nameSuitable for safety functions (EF001597)
Feature valueYes
Feature nameForced opening (EF006694)
Feature valueNo
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value0
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value1
Feature nameRated operation current Ie at AC-15, 230 V (EF001385)
Feature value3 A
Feature nameNumber of safety auxiliary contacts (EF006940)
Feature value0
Feature nameRated operation current Ie at DC-13, 230 V (EF001386)
Feature value0.27 A
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value2
Feature nameWidth sensor (EF007094)
Feature value56 mm
Feature nameHeight of sensor (EF007283)
Feature value30 mm
Feature nameLength of sensor (EF007334)
Feature value88 mm
Feature nameAmbient temperature during operating (EF007515)
Feature value-30 °C

DATASHEET - PDF

Title
Size
Type
D4NS-8FF D4NS8FF D4NS0048D c128_d4ns_safety_door_switch_datasheet_en.pdf
631 Kbytes
PDF CATALOGO OMRON AUTOMATION EN
19 Mbytes
PDF CATALOG OMRON 2024 EN
25 Mbytes
