OMRON D4B-4A15N D4BN4023C D4B4A15N - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

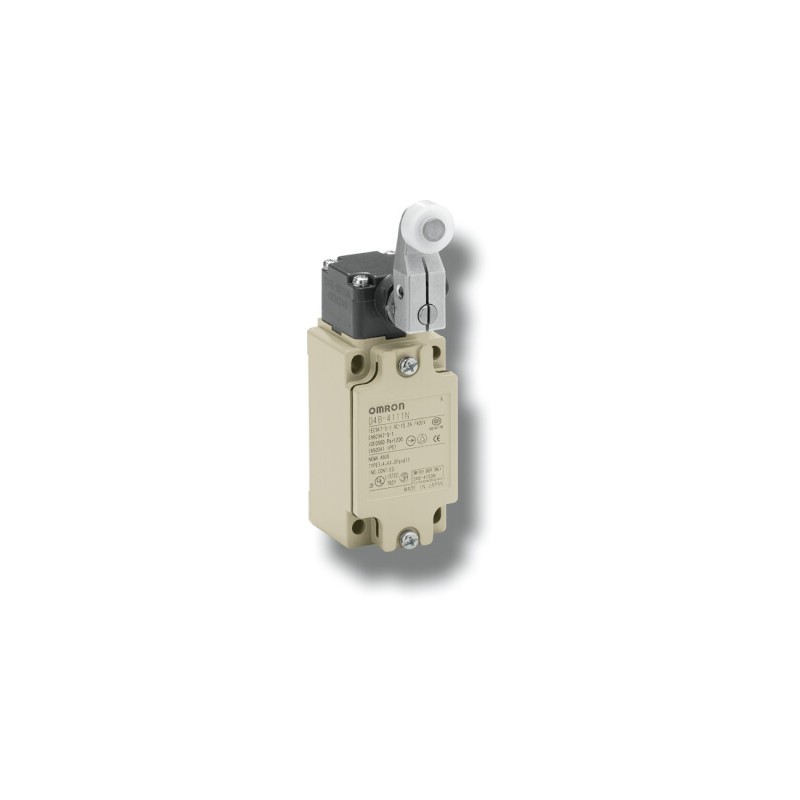

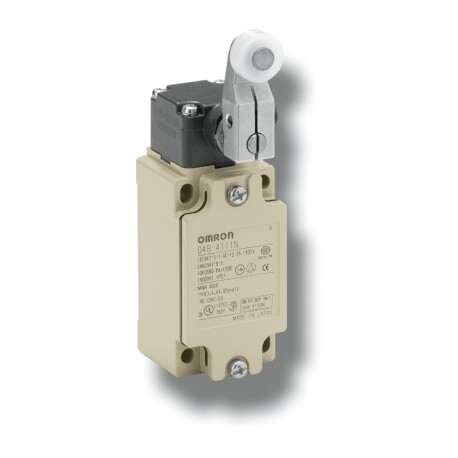

D4B-4A15N D4BN4023C D4B4A15N OMRON Metal 2NC Roller plunger adjustable M20

Reference: D4B-4A15N

Code: D4BN4023C

Catalog Number: D4B4A15N

Manufacturer: OMRON

Description:

Metal 2NC Roller plunger adjustable M20
Metallic 2NC Adjustable Pulley M20
Limit switch, stainless steel roller lever, DPDB 2-NC, slow action, 10 A, M20 conduit

Categories:

  • Sensors > End switch
  • OMRON > Safety > D4B

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 80,23 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Features

Limit switch with metal housing

The D4B series of limit switches in a rugged metal housing is suitable for both safety and non-safety applications due to its direct opening mechanism and TÜV approval. Furthermore with the increased temperature range and enhanced mechanical switching lifetime, the D4B is first choice for all applications from standard to demanding environments and for highest flexibility in mounting and connectivity preferences.

  • Direct opening mechanism and approval by notified body
  • Rugged metal housing and extended mechanical switching lifetime (snap action models)
  • Terminal block for direct wiring

Ordering information

Actuator type

Connection method

Order code1

1NC/1NO (snap-action)

1NC/1NO (slow-action)

2NC (slow-action)


Roller lever2

Terminal block with
M20 conduit

D4B-4111N

D4B-4511N

D4B-4A11N


Adjustable roller lever

D4B-4116N

D4B-4516N

D4B-4A16N


Adjustable rod lever

D4B-4117N

D4B-4517N

D4B-4A17N


Plain

D4B-4170N

D4B-4570N

D4B-4A70N


Roller

D4B-4171N

D4B-4571N

D4B-4A71N

Specifications

Item

Snap-action

Slow-action

Durability3

Mechanical

30,000,000 operations min.

10,000,000 operations min.

Electrical

500,000 operations min. (at a 250 VAC, 10 A resistive load)

Operating speed

1 mm/s to 0.5 m/s

Operating frequency

Mechanical

120 operations/min

Electrical

30 operations/min

Rated frequency

50/60 Hz

Contact resistance

25 mΩ max. (initial value)

Pollution degree (operating environment)

3 (EN60947-5-1)

Conditional short-circuit current

100 A (EN60947-5-1)

Conventional enclosed thermal current (Ith)

20 A (EN60947-5-1)

Protection against electric shock

Class I (with ground terminal)

Ambient temperature

Operating

-40 to 80°C (with no icing)4

Degree of protection

IP67 (EN60947-5-1)

1NO/1NC Contact (Snap-action)

If metal deposition between mating contacts occurs on the NC contact side, they can be pulled apart by the shearing force and tensile force generated when part B of the safety cam or plunger engages part A of the movable contact blade. When the safety cam or plunger is moved in the direction of the arrow, the Limit Switch releases.


1NC/1NO Contact (Slow-action)


2NC Contact (Slow-action)


1.The NC contacts provide the approved direct opening mechanism.D4B_rev02-1.png

2.For models with stainless steel rollers and temperature resistance of -40°C refer to WL-_-TC.

3.The values are acquired for an ambient temperature of 5 to 35°C and an ambient humidity of 40 to 70%.

4.-25 to 80°C for the flexible-rod actuator.

ETIM for 374542 Sensors (EC000030)

Feature nameExplosion safety category for dust (EF003998)
Feature valueNone
Feature nameConstruction type housing (EF004008)
Feature valueCuboid
Feature nameDegree of protection (NEMA) (EF011959)
Feature value6P
Feature nameCoating housing (EF001601)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP67
Feature nameAlignment of the control element (EF008793)
Feature valueRoller cam straight
Feature nameType of control element (EF006976)
Feature valueRoller lever
Feature nameType of interface for safety communication (EF003956)
Feature valueNone
Feature nameType of electric connection (EF003961)
Feature valueCable entry metrical
Feature nameType of interface (EF006977)
Feature valueNone
Feature nameSwitching function (EF000189)
Feature valueSlow-action switch
Feature nameHousing material (EF001596)
Feature valueMetal
Feature nameExplosion safety category for gas (EF003997)
Feature valueNone
Feature nameSwitching function latching (EF007447)
Feature valueNo
Feature nameWith status indication (EF001602)
Feature valueNo
Feature nameSuitable for safety functions (EF001597)
Feature valueYes
Feature nameForced opening (EF006694)
Feature valueYes
Feature nameOutput electronic (EF006987)
Feature valueNo
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value0
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameRated operation current Ie at AC-15, 230 V (EF001385)
Feature value10 A
Feature nameRated operation current Ie at DC-13, 125 V (EF007085)
Feature value0.8 A
Feature nameNumber of safety auxiliary contacts (EF006940)
Feature value0
Feature nameRated operation current Ie at DC-13, 24 V (EF007087)
Feature value6 A
Feature nameRated operation current Ie at DC-13, 230 V (EF001386)
Feature value0.4 A
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value2
Feature nameRated operation current Ie at AC-15, 125 V (EF007082)
Feature value10 A
Feature nameWidth sensor (EF007094)
Feature value40 mm
Feature nameHeight of sensor (EF007283)
Feature value131.3 mm
Feature nameLength of sensor (EF007334)
Feature value43 mm
Feature nameAmbient temperature during operating (EF007515)
Feature value-40 °C
