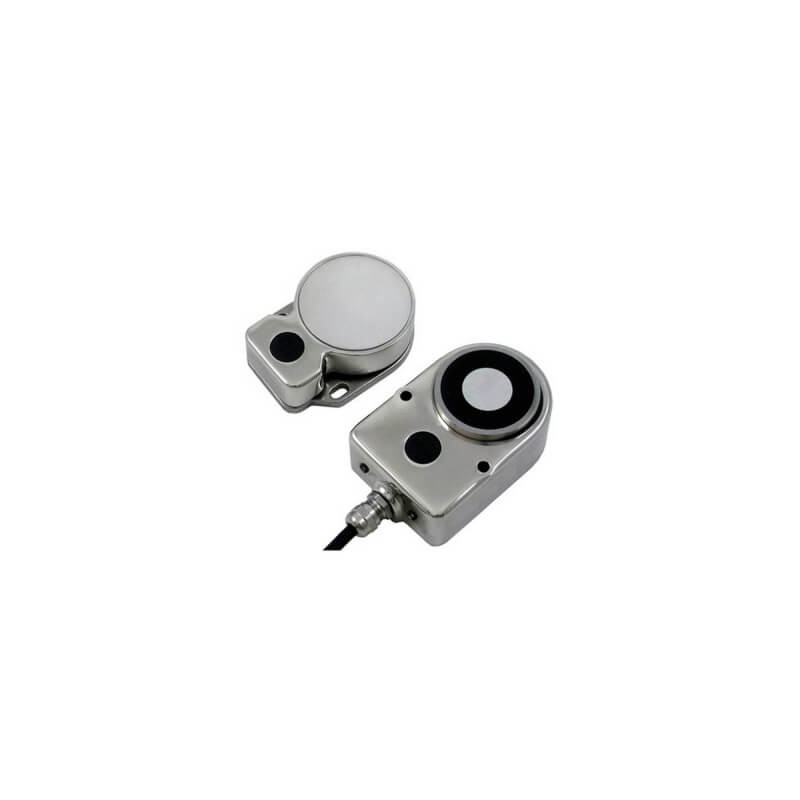

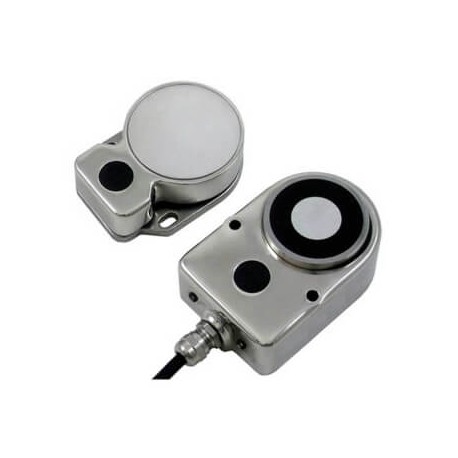

D40ML-SS2-B-M12 AA044839B 669731 OMRON Basic Stainless Steel PLe RFID Magnetic Blocking Switch. IP69K 600N M..
D40ML-SS2-B-M12
AA044839B
D40MLSS2BM12
OMRON
Switch Magnetic Lock PLe Basic RFID Stainless steel. IP69K 600N M12
Basic Stainless Steel PLe RFID Magnetic Blocking Switch. IP69K 600N M12
RFID Magnetic Locking Safety Switch,Stainless Steel, 600N, Basic Actuator Code, Pigtail w/M12 Connector
Safety > Contactless Switches TGR
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
More info
▲Specifications
| Door switch type | RFID magnetic |
| Guard-lock | |
| Coding | Basic |
| Material housing | Stainless steel |
| Ambient temperature (operating) | -25-40 °C |
| Holding force | 600 N |
| Door contacts NC | 2 |
| Door contacts NO | 0 |
| Lock monitor contacts NC | 0 |
| Lock monitor contacts NO | 1 |
| Lock type | Solenoid |
| Release type | Solenoid |
| Lock/Release key type | N/A |
| Solenoid voltage | 24 V |
| With LED indicator | |
| Connection method | M12 Pre-wired connector |
| Cable length | 0.25 m |
| Degree of protection (IP) | IP67 |
| Overall length | 96 mm |
| Height of sensor | 37 mm |
| Width sensor | 64 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| D40ML-SS2-B-M12 669731 AA044839B EN_D40ML-SS2-B-10M.pdf | 434 Kbytes |
 |
| D40ML-SS2-B-M12 669731 AA044839B f22e_d40ml_rfid_magnetic_locking_safety_switches_datasheet_en.pdf | 397 Kbytes |
|
