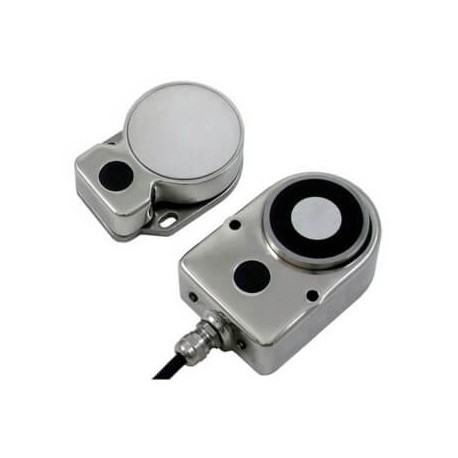

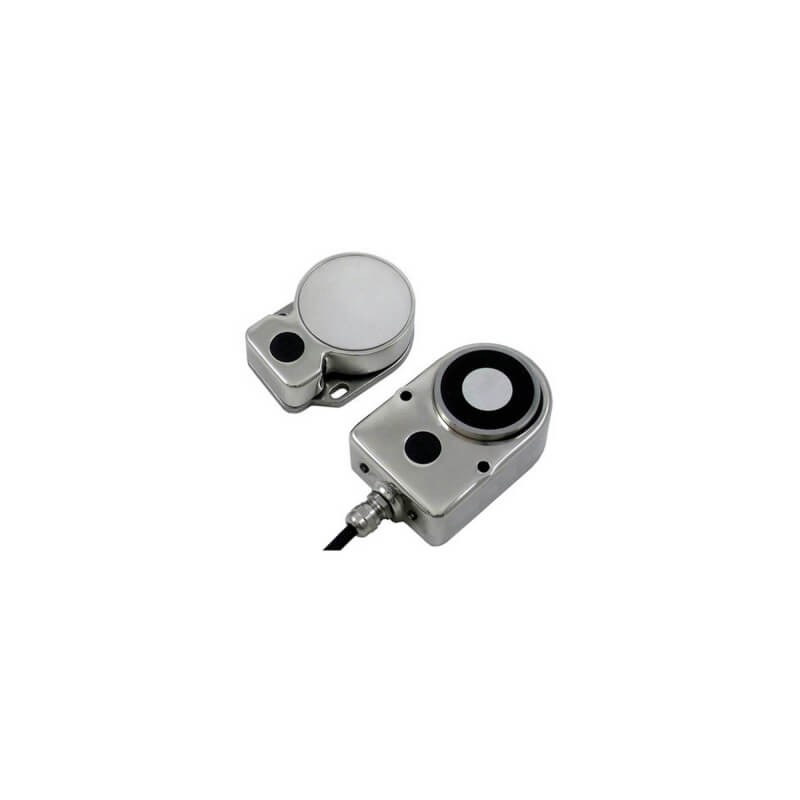

D40ML-SS2-B-5M AA044821M D40MLSS2B5M OMRON Switch Magnetic Lock PLe Basic RFID Stainless steel. IP69K 600N c..
D40ML-SS2-B-5M
AA044821M
D40MLSS2B5M
OMRON
Switch Magnetic Lock PLe Basic RFID Stainless steel. IP69K 600N cable 5m
RFID Magnetic Locking Safety Switch,Stainless Steel, 600N, Basic Actuator Code, 5m Cable
Sensors > Position switch with guard locking
Safety > Contactless Switches TGR
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Construction type housing (EF004008) | Special construction |
| Degree of protection (NEMA) (EF011959) | Other |
| Coating housing (EF001601) | Uncoated |
| Degree of protection (IP) (EF005474) | Other |
| Type of interface for safety communication (EF003956) | None |
| Type of electric connection (EF003961) | With cable preassembled |
| Type of interface (EF006977) | None |
| Housing material (EF001596) | Metal |
| Explosion safety category for gas (EF003997) | None |
| With status indication (EF001602) | Yes |
| Suitable for safety functions (EF001597) | Yes |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Guard locking force (EF007552) | 600 N |
| Number of safety auxiliary contacts (EF006940) | 1 |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 0.2 A |
| Number of contacts as normally closed contact (EF008255) | 2 |
| Width sensor (EF007094) | 64 mm |
| Height of sensor (EF007283) | 37 mm |
| Length of sensor (EF007334) | 96 mm |
| Ambient temperature during operating (EF007515) | -25 °C |
| Rated control supply voltage magnet drive DC (EF007070) | 21.6 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| D40ML-SS2-B-5M D40MLSS2B5M AA044821M EN_D40ML-SS2-B-5M.pdf | 434 Kbytes |
|
| D40ML-SS2-B-5M D40MLSS2B5M AA044821M f22e_d40ml_rfid_magnetic_locking_safety_switches_datasheet_en.pdf | 397 Kbytes |
|
