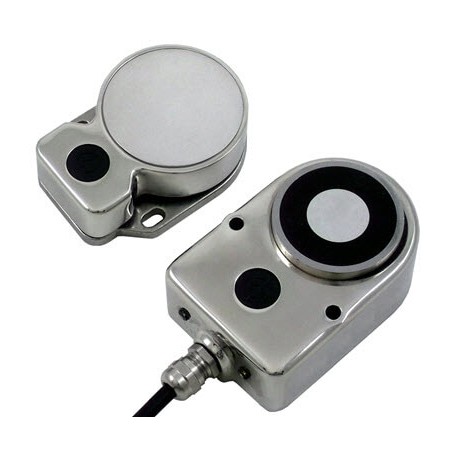

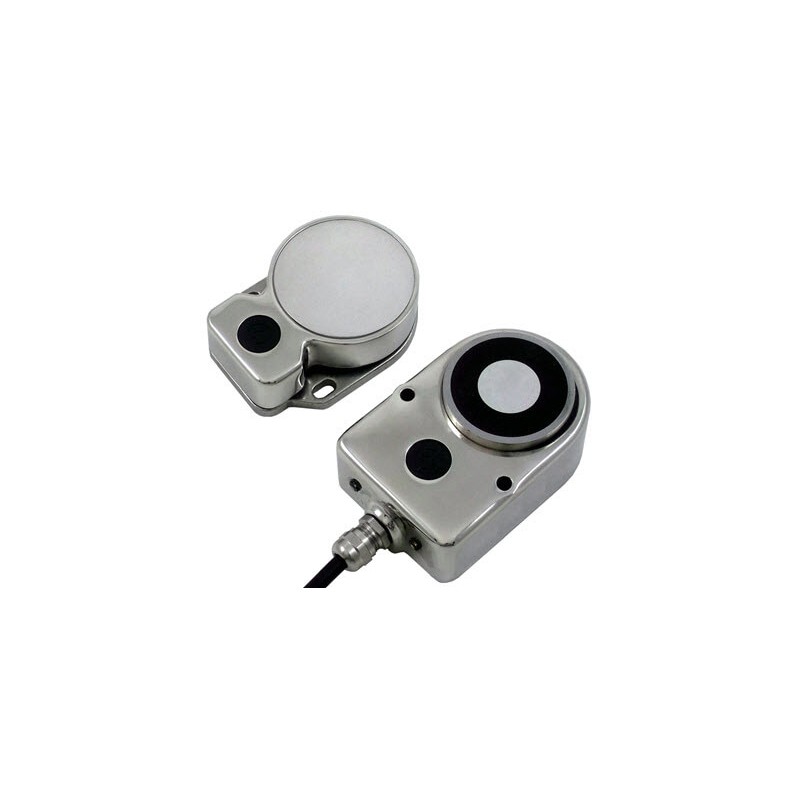

D40ML-SS1-B-10M AA044807D D40MLSS1B10M OMRON Switch Magnetic Lock PLe Basic RFID Stainless steel. IP69K 950N..
D40ML-SS1-B-10M
AA044807D
D40MLSS1B10M
OMRON
Switch Magnetic Lock PLe Basic RFID Stainless steel. IP69K 950N cable 10m
Basic Stainless Steel PLe RFID Magnetic Blocking Switch. IP69K 950N cable 10m
RFID Magnetic Locking Safety Switch, Stainless Steel, 950N, Basic Actuator Code, 10m Cable
Sensors > Position switch with guard locking
Safety > Contactless Switches TGR
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Construction type housing (EF004008) | Special construction |
| Degree of protection (NEMA) (EF011959) | Other |
| Coating housing (EF001601) | Uncoated |
| Degree of protection (IP) (EF005474) | Other |
| Type of interface for safety communication (EF003956) | None |
| Type of electric connection (EF003961) | With cable preassembled |
| Type of interface (EF006977) | None |
| Housing material (EF001596) | Metal |
| Explosion safety category for gas (EF003997) | None |
| With status indication (EF001602) | Yes |
| Suitable for safety functions (EF001597) | Yes |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Guard locking force (EF007552) | 950 N |
| Number of safety auxiliary contacts (EF006940) | 1 |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 0.2 A |
| Number of contacts as normally closed contact (EF008255) | 2 |
| Width sensor (EF007094) | 80 mm |
| Height of sensor (EF007283) | 43 mm |
| Length of sensor (EF007334) | 115 mm |
| Ambient temperature during operating (EF007515) | -25 °C |
| Rated control supply voltage magnet drive DC (EF007070) | 21.6 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| D40ML-SS1-B-10M D40MLSS1B10M AA044807D f22e_d40ml_rfid_magnetic_locking_safety_switches_datasheet_en.pdf | 397 Kbytes |
|
