OMRONControl SystemsCP1CP1W-TS102 CP1W9288F 672573 OMRON Expansion Module 4 Inputs Pt100

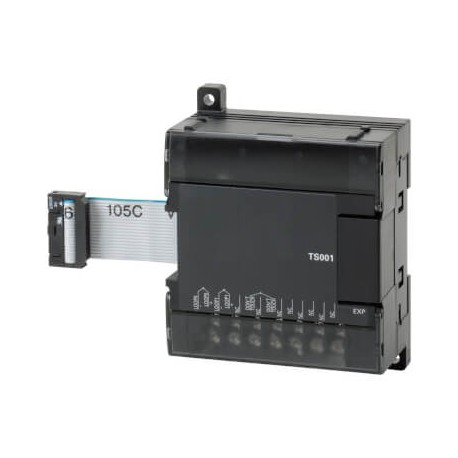

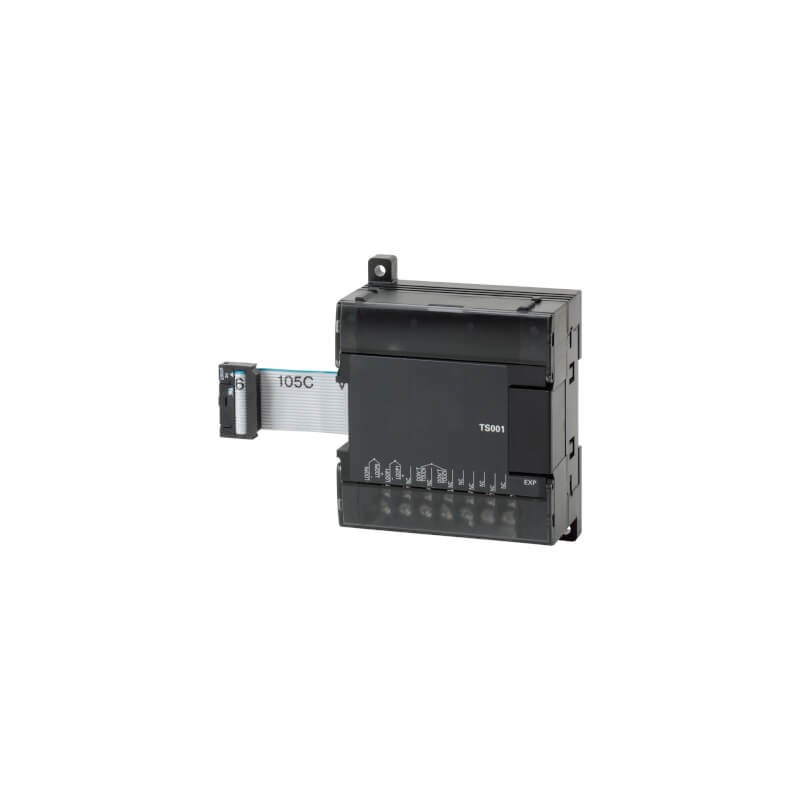

OMRON CP1W-TS102 CP1W9288F CP1WTS102.2 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

CP1W-TS102 CP1W9288F 672573 OMRON Expansion Module 4 Inputs Pt100

Reference: CP1W-TS102

Code: CP1W9288F

Catalog Number: CP1WTS102.2

Manufacturer: OMRON

Description:

Module Expansion 4 Pt100 Inputs
I/O expansion unit, 4 x RTD inputs Pt100

Categories:

  • PLC's > PLC analogue I/O-module
  • OMRON > Control Systems > CP1

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 587,24 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Specifications

Type of moduleAnalog I/O
Number of analog inputs4
Linear analog input typeNone
Temperature input typePt100
Resolution of the analog inputs12 Bit
Number of analog outputs0
Linear analog output typeNone
Height90 mm
Width86 mm
Depth50 mm
Weight250 g

ETIM for 672573 PLC's (EC001420)

Feature nameExplosion safety category for dust (EF003998)
Feature valueNone
Feature namePerformance level according to EN ISO 13849-1 (EF007399)
Feature valueLevel a
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameSIL according to IEC 61508 (EF009889)
Feature valueNone
Feature nameExplosion safety category for gas (EF003997)
Feature valueNone
Feature nameOutput, current (EF003212)
Feature valueNo
Feature nameInput, resistor (EF003206)
Feature valueNo
Feature nameInput, voltage (EF003205)
Feature valueNo
Feature nameInput, thermocouple (EF003208)
Feature valueNo
Feature nameAnalogue inputs configurable (EF008518)
Feature valueYes
Feature nameAppendant operation agent (Ex ib) (EF004142)
Feature valueNo
Feature nameInput, current (EF003204)
Feature valueNo
Feature nameAnalogue outputs configurable (EF008519)
Feature valueNo
Feature nameAppendant operation agent (Ex ia) (EF004141)
Feature valueNo
Feature nameInput, resistance thermometer (EF003207)
Feature valueYes
Feature nameSuitable for safety functions (EF001597)
Feature valueNo
Feature nameInput signal, configurable (EF003209)
Feature valueYes
Feature nameOutput signal configurable (EF003214)
Feature valueNo
Feature nameOutput, voltage (EF003213)
Feature valueNo
Feature nameNumber of analogue inputs (EF001994)
Feature value4
Feature nameNumber of analogue outputs (EF001995)
Feature value0
Feature nameWidth (EF000008)
Feature value86 mm
Feature nameResolution of the analogue inputs (EF003575)
Feature value12 Bit
Feature nameHeight (EF000040)
Feature value90 mm
Feature nameDepth (EF000049)
Feature value50 mm

DATASHEET - PDF

Title
Size
Type
CP1W-TS102 CP1WTS102.2 CP1W9288F p080_cp_series_cp1h_cpu_unit_datasheet_en.pdf
2 Mbytes
PDF CATALOGO OMRON AUTOMATION EN
19 Mbytes
PDF CATALOG OMRON 2024 EN
25 Mbytes
