OMRONControl SystemsCP1CP1W-8ED CP1W9268A CP1W8ED,2 OMRON Module Expansion 8 Inputs DC

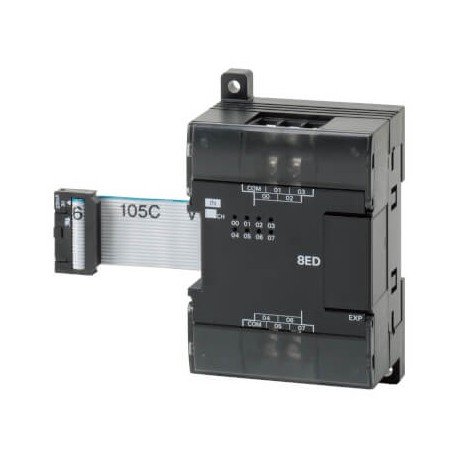

OMRON CP1W-8ED CP1W9268A CP1W8ED.2 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

CP1W-8ED CP1W9268A CP1W8ED,2 OMRON Module Expansion 8 Inputs DC

Reference: CP1W-8ED

Code: CP1W9268A

Catalog Number: CP1W8ED.2

Manufacturer: OMRON

Description:

Module Expansion 8 Inputs DC
I/O expansion unit, 8 x 24 VDC inputs

Categories:

  • PLC's > PLC digital I/O-module
  • OMRON > Control Systems > CP1

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 217,33 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Type of moduleDigital I/ONumber of digital inputs8Digital input typePNP/NPNOFF/ON delay0-32 msPermitted voltage at input20.4-26.4 VNumber of digital outputs0Digital output typeNoneOutput current0.3 AProduct Height (unpacked)90 mmProduct Width (unpacked)66 mmProduct Depth (unpacked)50 mmProduct Weight (unpacked)200 g

ETIM for 670916 PLC's (EC001419)

Feature nameExplosion safety category for dust (EF003998)
Feature valueNone
Feature nameType of voltage (input voltage) (EF003033)
Feature valueDC
Feature namePerformance level according to EN ISO 13849-1 (EF007399)
Feature valueLevel a
Feature nameType of digital output (EF003601)
Feature valueNone
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameSIL according to IEC 61508 (EF009889)
Feature valueNone
Feature nameVoltage type (supply voltage) (EF002991)
Feature valueDC
Feature nameExplosion safety category for gas (EF003997)
Feature valueNone
Feature nameDigital inputs configurable (EF008516)
Feature valueYes
Feature nameDigital outputs configurable (EF008520)
Feature valueNo
Feature nameAppendant operation agent (Ex ib) (EF004142)
Feature valueNo
Feature nameAppendant operation agent (Ex ia) (EF004141)
Feature valueNo
Feature nameRedundancy (EF003156)
Feature valueNo
Feature nameSuitable for safety functions (EF001597)
Feature valueNo
Feature nameShort-circuit protection, outputs available (EF003203)
Feature valueNo
Feature nameInput current at signal 1 (EF001428)
Feature value5 mA
Feature nameNumber of digital outputs (EF001993)
Feature value0
Feature nameWidth (EF000008)
Feature value66 mm
Feature nameNumber of digital inputs (EF001992)
Feature value8
Feature nameHeight (EF000040)
Feature value90 mm
Feature nameDepth (EF000049)
Feature value50 mm
Feature namePermitted voltage at input (EF007554)
Feature value20.4 V
Feature nameTime delay at signal change (EF002382)
Feature value0 ms

DATASHEET - PDF

Title
Size
Type
PDF CATALOGO OMRON AUTOMATION EN
19 Mbytes
PDF CATALOG OMRON 2024 EN
25 Mbytes
