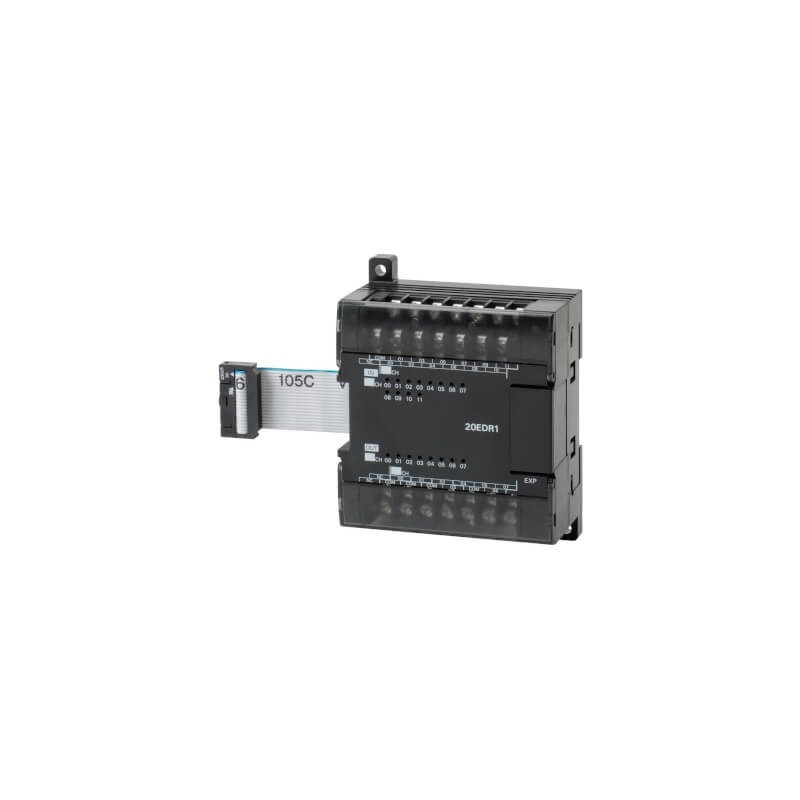

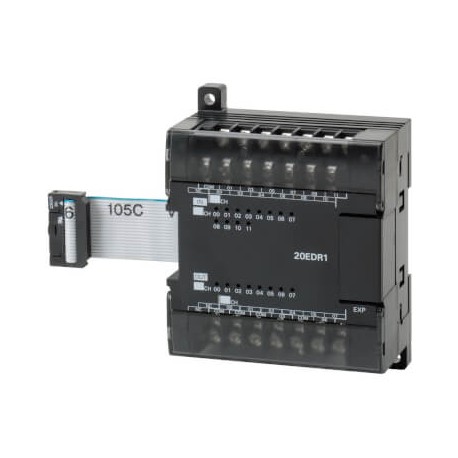

CP1W-20EDR1 CP1W9259B 670923 OMRON Expansion Module 12/8 I/O Relay Outputs
CP1W-20EDR1
CP1W9259B
CP1W20EDR1.1
OMRON
Module Expansion 12/8 I/O relay Outputs
I/O expansion unit, 12 x 24 VDC inputs, 8 x relay outputs 2 A
PLC's > PLC digital I/O-module
Control Systems > CP1
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Specifications
| Type of module | Digital I/O |
| Number of digital inputs | 12 |
| Digital input type | PNP/NPN |
| OFF/ON delay | 0-32 ms |
| Permitted voltage at input | 20.4-26.4 V |
| Digital output type | Relay NO |
| Number of digital outputs | 8 |
| Output current | 2 A |
| Permitted voltage at output | 5-250 V |
| Height | 90 mm |
| Width | 86 mm |
| Depth | 50 mm |
| Weight | 300 g |
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Type of voltage (input voltage) (EF003033) | DC |
| Type of output voltage (EF008222) | AC/DC |
| Performance level according to EN ISO 13849-1 (EF007399) | Level a |
| Type of digital output (EF003601) | Relay |
| Type of electric connection (EF003961) | Screw connection |
| SIL according to IEC 61508 (EF009889) | None |
| Voltage type (supply voltage) (EF002991) | DC |
| Explosion safety category for gas (EF003997) | None |
| Digital inputs configurable (EF008516) | Yes |
| Digital outputs configurable (EF008520) | Yes |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Redundancy (EF003156) | No |
| Suitable for safety functions (EF001597) | No |
| Short-circuit protection, outputs available (EF003203) | No |
| Input current at signal 1 (EF001428) | 5 mA |
| Number of digital outputs (EF001993) | 8 |
| Output current (EF003202) | 2 A |
| Width (EF000008) | 86 mm |
| Number of digital inputs (EF001992) | 12 |
| Height (EF000040) | 90 mm |
| Depth (EF000049) | 50 mm |
| Permitted voltage at input (EF007554) | 20.4 V |
| Time delay at signal change (EF002382) | 0 ms |
| Permitted voltage at output (EF007553) | 5 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
