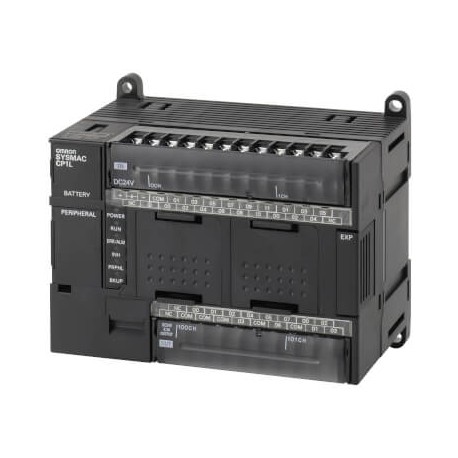

CP1L-M30DR-A CP1W9241M 668695 OMRON CPU 18/12 I/O AC Relay Outputs
CP1L-M30DR-A
CP1W9241M
CP1LM30DRA.1
OMRON
CPU 18/12 I/O AC relay Outputs
PLC, 100-240 VAC supply, 18 x 24 VDC inputs, 12 x relay outputs 2 A, 10K steps program + 32K words data memory
Control Systems > CPM2A
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
More info
▲Specifications
| Supply voltage type | AC |
| Number of digital inputs | 18 |
| Input type | PNP/NPN |
| Number of digital outputs | 12 |
| Output type | Relay |
| Program capacity | 10 K steps |
| Data memory capacity | 32 K words |
| Logic execution time | 0.55 µs |
| Communication port(s) | USB |
| Number of Ethernet ports | 0 |
| Number of USB ports | 1 |
| Number of RS-232 ports | 0 |
| Number of RS-485 ports | 0 |
| Communication option(s) | CompoBus/S Slave, Serial RS-232C, Serial RS-422, Serial RS-485 |
| Number of encoder input channels | 4 |
| Max. encoder input frequency | 100 kHz |
| Max. number of PTP axes | 0 |
| Max. pulse output frequency | 0 kHz |
| Function Block programming | |
| Battery-free memory backup | |
| Real-time clock | |
| Analog option boards | |
| Max. number of analog I/O channels | 25 |
| Max. number of local I/O points | 150 |
| Max. number of expansion units | 3 |
| Built-in auxiliary 24 VDC output | 300 mA |
| Operating temperature range | 0-55 °C |
| Height | 90 mm |
| Width | 130 mm |
| Depth | 85 mm |
| Weight | 610 g |
Accessories
| CP1W-CIF01 | CP1 RS-232C (15 m max.) serial communication option board | |
| CP1W-CIF11 | CP1 RS422/485 (50 m max.) serial communication option board | |
| CP1W-CIF12-V1 | CP1 RS422/485 (isolated 500 m max.) serial communication option board | |
| CP1W-CIF41 | CP1 Ethernet communications option, 1 x RJ45 socket | |
| CP1W-CN221 | USB Programming cable, A-type male to B-type male, 1.8 m | |
| CP1W-CN811 | I/O expansion cable for CP1-series, 80 cm | |
| CP1W-DAM01 | LCD option board to CP1L and CP1H | |
| CP1W-ME05M | CP1 memory cassette (for upload/download of user program) | |
| CXONE-LT01-EV4 | CX-One Lite v4.x software, for Windows 2000/XP/Vista, single-user licence only, (requires CDs, CXOne-LTCD-EV4), limited to program the CPx PLC platform |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| CP1L-M30DR-A CP1LM30DRA.1 CP1W9241M RU_CP1L-L20DR-D.pdf | 3 Mbytes |
 |
