Images are for illustrative purposes only. Please refer to data sheet for details.

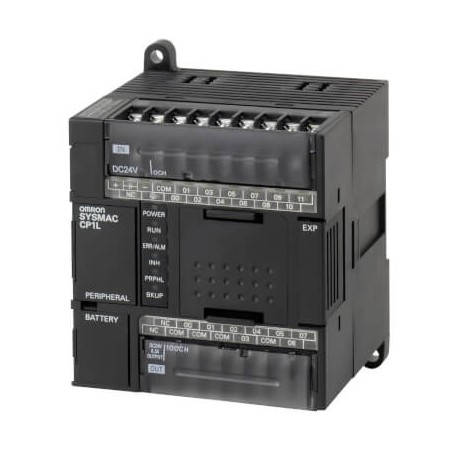

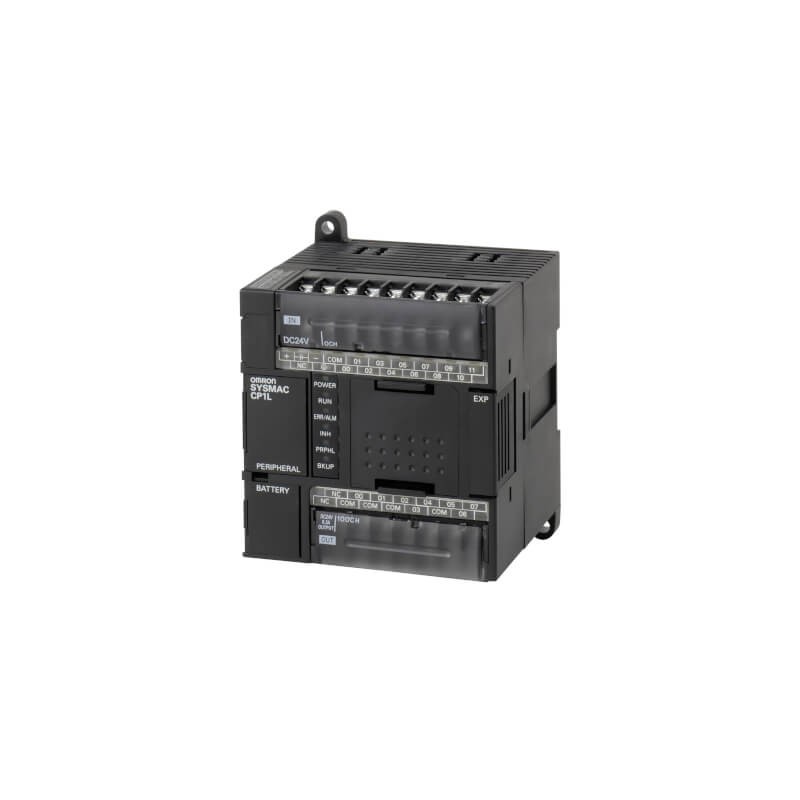

CP1L-J14DR-A CP1W9220G CP1LJ14DRA,1 OMRON CPU 8/6 I/O AC Relay Outputs Basic
Reference: CP1L-J14DR-A
Code: CP1W9220G
Catalog Number: CP1LJ14DRA.1
Manufacturer: OMRON
Description:
CPU 8/6 I/O AC Relay Outputs Basic
PLC, 100-240 VAC supply, 8 x 24 VDC inputs, 6 x relay outputs 2 A, 1K steps program + 10K words data memory
Categories:
- PLC's > PLC CPU-module
- OMRON > Control Systems > CPM2A
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
- More Info
- Reviews
MORE INFO
Specifications
| Supply voltage type | AC/DC |
| Number of digital inputs | 8 |
| Input type | PNP/NPN |
| Number of digital outputs | 6 |
| Output type | Relay |
| Program capacity | 1 K steps |
| Data memory capacity | 10 K words |
| Logic execution time | 0.55 µs |
| Communication port(s) | USB |
| Number of Ethernet ports | 0 |
| Number of USB ports | 1 |
| Number of RS-232 ports | 0 |
| Number of RS-485 ports | 0 |
| Communication option(s) | CompoBus/S Slave, Serial RS-232C, Serial RS-422, Serial RS-485 |
| Number of encoder input channels | 4 |
| Max. encoder input frequency | 20 kHz |
| Max. number of PTP axes | 0 |
| Max. pulse output frequency | 0 kHz |
| Function Block programming | |
| Battery-free memory backup | |
| Real-time clock | |
| Analog option boards | |
| Max. number of analog I/O channels | 8 |
| Max. number of local I/O points | 54 |
| Max. number of expansion units | 1 |
| Built-in auxiliary 24 VDC output | 200 mA |
| Operating temperature range | 0-55 °C |
| Height | 90 mm |
| Depth | 85 mm |
Accessories
| CP1W-CN221 | USB Programming cable, A-type male to B-type male, 1.8 m | |
| CXONE-LT01-EV4 | CX-One Lite v4.x software, for Windows 2000/XP/Vista, single-user licence only, (requires CDs, CXOne-LTCD-EV4), limited to program the CPx PLC platform |
