CP1L-EL20DT1-D
CP1W9212F
CP1LEL20DT1D.1
OMRON
1
Available Ship on today

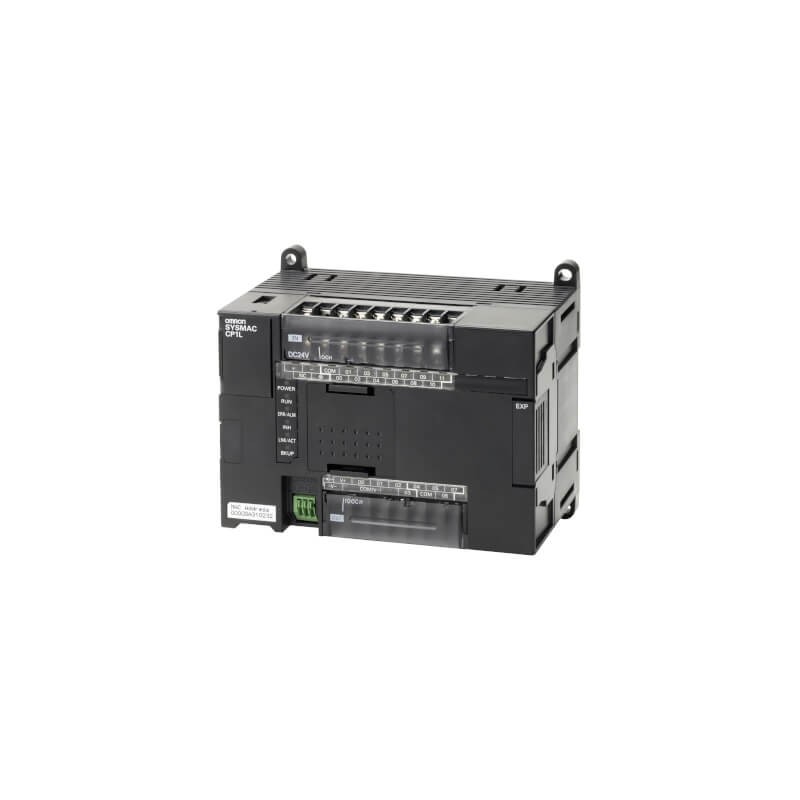

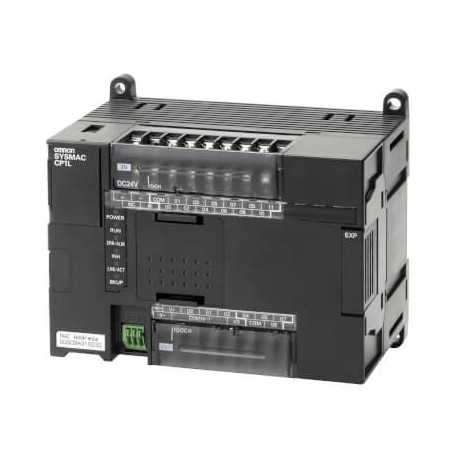

CPU Ethernet - 12/8 I/O DC PNP Outputs
PLC, 24 VDC supply, 12 x 24 VDC inputs, 8 x PNP outputs 0.3 A, 2 x analog inputs, 5K steps program + 10K words data memory, 1 x Ethernet port
Control Systems > CPM2A
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Supply voltage type | DC |
Number of digital inputs | 12 |
Input type | PNP/NPN |
Number of digital outputs | 8 |
Output type | PNP |
Program capacity | 15 K steps |
Data memory capacity | 10 K words |
Logic execution time | 0.55 µs |
Communication port(s) | Ethernet TCP/IP |
Number of Ethernet ports | 1 |
Number of USB ports | 0 |
Number of RS-232 ports | 0 |
Number of RS-485 ports | 0 |
Communication option(s) | CompoBus/S Slave, Serial RS-232C, Serial RS-422, Serial RS-485 |
Number of encoder input channels | 4 |
Max. encoder input frequency | 100 kHz |
Max. number of PTP axes | 2 |
Max. pulse output frequency | 100 kHz |
Function Block programming | |
Battery-free memory backup | |
Real-time clock | |
Analog option boards | |
Max. number of analog I/O channels | 14 |
Max. number of local I/O points | 60 |
Max. number of expansion units | 1 |
Built-in auxiliary 24 VDC output | 0 mA |
Operating temperature range | 0-55 °C |
Height | 90 mm |
Width | 130 mm |
Depth | 85 mm |
Title: | Size: | Type: |
---|---|---|
CP1L-EL20DT1-D CP1LEL20DT1D.1 CP1W9212F ES_CP1L-EL20DT-D.pdf | 3 Mbytes |
