CJ1W-F130
AA037491G
CJ1WF130
OMRON
1
Available Ship on today

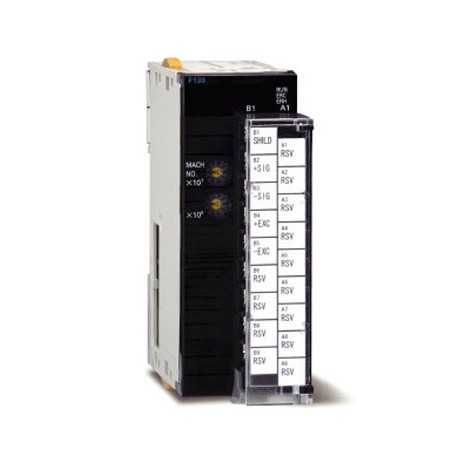

Unit Load Cell, 1 ch, 0.33 ms time conversion, 24 bit resolution, terminals with screws
Load cell input unit, 1 channel, high-performance, 10 VDC or 2.5 VDC, max. 4 x 350 Ohm load cells, screw terminal
Control Systems > Special Control Systems
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
I/O system | CJ I/O Bus |
Expansion unit type | Special I/O Unit |
Type of module | Weighing |
Temperature input type | None |
Linear analog input type | Load cell |
Linear analog output type | None |
I/O connection type | Screw |
Number of I/O connectors | 1 |
Detachable I/O connector | |
Suitable for safety functions | |
Height | 90 mm |
Width | 31 mm |
Depth | 89 mm |
Weight | 160 g |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGO OMRON AUTOMATION EN.pdf | 28 Mbytes | |
PDF CATALOG OMRON EN.pdf | 24 Mbytes | |
CJ1W-F130 372912 AA037491G ES_CJ1W-F130.pdf | 804 Kbytes |
