AL 25-10 H 1m AA047342G AL2510H1M OMRON Bracket Horizontal Mount 1000mm for sensitive edge IS 25.30 TT
AL 25-10 H 1m
AA047342G
AL2510H1M
OMRON
Bracket Horizontal Mount 1000mm for sensitive edge IS 25.30 TT
Sensors > Pressure sensitive protective device
Safety > Others Safety
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info

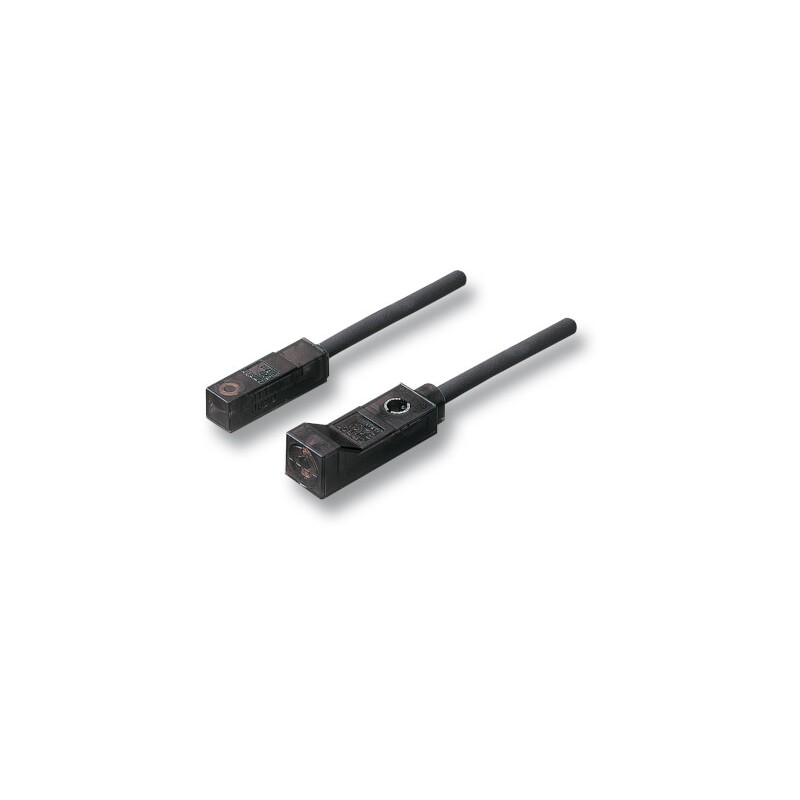

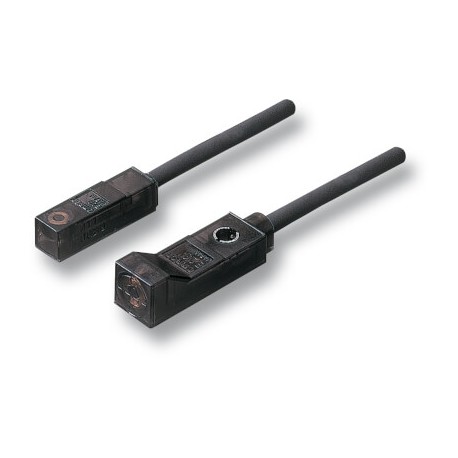

▲Miniature square inductive sensor in plastic housing
The E2S family features miniature block style plastic housings for simple mounting on flat surfaces. The durable plastic housing with front or side facing sensing surfaces, provide best value-performance ratio for machine part movement detection.
- Miniature housing with long sensing ranges
- Front and side facing sensing surfaces
- Simple mounting with one screw
- IP67
Ordering information
DC 2-wire
| Size in mm (H × W × D) | Sensing distance | Sensing face | Order code (pre-wired types with 1 m cable length) | ||||
|---|---|---|---|---|---|---|---|
Operation mode NO | Operation mode NC | ||||||
19 × 6 × 6 | - | ¢ | 1.6 mm | ¢ | - | E2S-W11 1M | E2S-W12 1M |
- | ¢ | E2S-Q11 1M | E2S-Q12 1M | ||||
23 × 8 × 8 | 2.5 mm | ¢ | - | E2S-W21 1M | E2S-W22 1M | ||
- | ¢ | E2S-Q21 1M | E2S-Q22 1M | ||||
DC 3-wire
| Size in mm (H × W × D) | Sensing distance | Sensing face | Output specifications | Order code (pre-wired types with 1m cable length) | ||||
|---|---|---|---|---|---|---|---|---|
Operation mode NO | Operation mode NC | |||||||
19 × 6 × 6 | - | ¢ | 1.6 mm | ¢ | - | NPN | E2S-W13 1M | E2S-W14 1M |
- | ¢ | E2S-Q13 1M | E2S-Q14 1M | |||||
27 × 8 × 8 | 2.5 mm | ¢ | - | E2S-W23 1M | E2S-W24 1M | |||
- | ¢ | E2S-Q23 1M | E2S-Q24 1M | |||||
19 × 6 × 6 | 1.6 mm | ¢ | - | PNP | E2S-W15 1M | E2S-W16 1M | ||
- | ¢ | E2S-Q15 1M | E2S-Q16 1M | |||||
23 × 8 × 8 | 2.5 mm | ¢ | - | E2S-W25 1M | E2S-W26 1M | |||
- | ¢ | E2S-Q25 1M | E2S-Q26 1M | |||||
Specifications
Item | E2S-W1 E2S-Q1 | E2S-W2 E2S-Q2 | |
|---|---|---|---|
Sensing distance | 1.6 mm±10% | 2.5 mm±15% | |
Response frequency | 1 kHz min. | ||
Power supply voltage (operating voltage) | 12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max. | ||
Protective circuits | Surge suppressor; power supply reverse polarity protection | ||
Ambient temperature | Operating | -25 to 70°C | |
Storage | -40 to 85°C (with no icing or condensation) | ||
Degree of protection | IEC60529 IP67 | ||
Material | Case | Polyarylate | |
