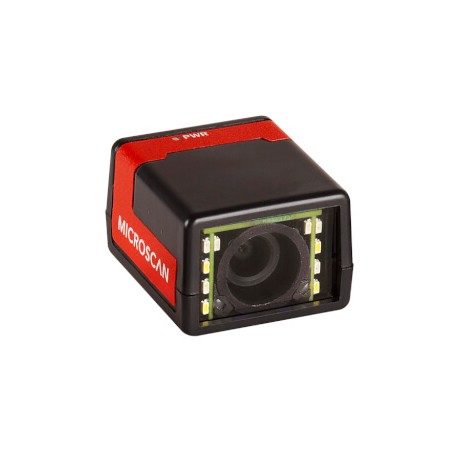

98-9000057-01 3Z4U1542A 98900005701 OMRON Kit, mirror RA, MicroHAWK 20
98-9000057-01
3Z4U1542A
98900005701
OMRON
Kit, mirror RA, MicroHAWK 20
Sensors > Accessories/spare parts for sensor technology
Industrial barcode readers > Accessories for BarCode Readers and Smart Cameras
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info

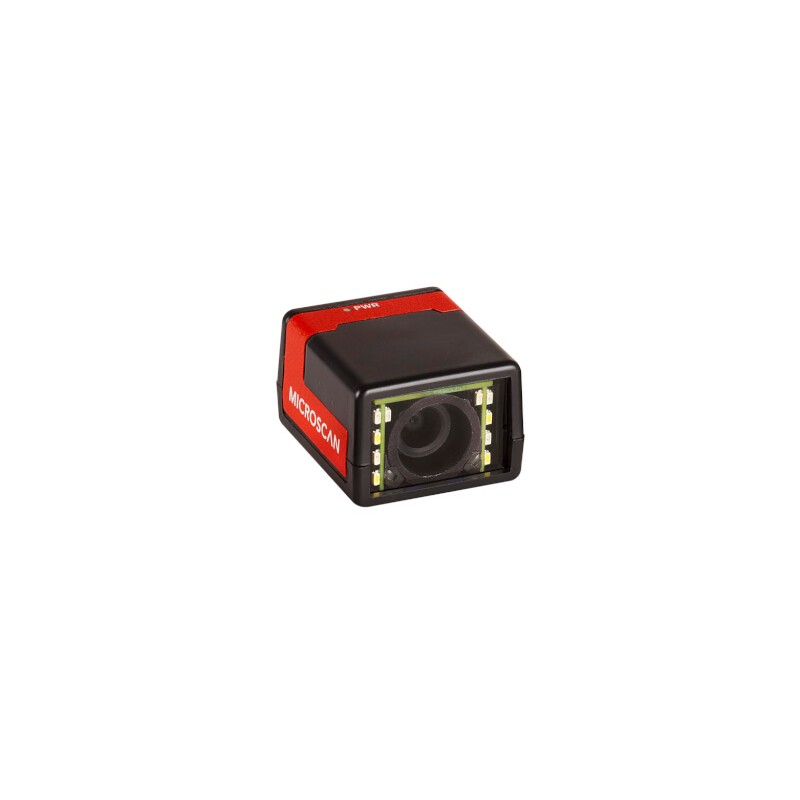

▲MicroHAWK ID-20 OEM Barcode Reader
The world’s smallest full-featured and fully-integrated barcode imager, MicroHAWK ID-20 offers OEMs and engineers a perfect set of value and performance options in a tiny, simple, and streamlined solution for embedded designs or WIP traceability. ID-20, the only reader of its kind, offers a single-cable solution that uses USB for both communication (USB 2.0 and Ethernet over USB) and power to enable plug-and-play integration. Mini is now micro and incredibly easy to use.
- Ultra-compact (19.5 mm x 28.7 mm x 33.9 mm)
- IP40
- USB 2.0, Ethernet over USB
- X-Mode advanced decoding algorithms
- Integrated targeting and read/pass indicators
- WebLink browser-based setup interface
Ordering information
BarcodeReader
| Description | Order code |
|---|---|
| MicroHAWK, ID-20, WVGA, SD, 64 mm, Plus decoding | 7211-1064-0002 |
| MicroHAWK, ID-20, WVGA, SD, 102 mm, Plus decoding | 7211-1102-0002 |
| MicroHAWK, ID-20, WVGA, HD, 50 mm, X-Mode decoding | 7211-2050-0003 |
| MicroHAWK, ID-20, SXGA, SD, 81 mm, Plus decoding | 7212-1081-0002 |
| MicroHAWK, ID-20, SXGA, SD, 81 mm, X-Mode decoding | 7212-1081-0003 |
| MicroHAWK, ID-20, SXGA, SD, 102 mm, Plus decoding | 7212-1102-0002 |
| MicroHAWK, ID-20, SXGA, SD, 102 mm, X-Modedecoding | 7212-1102-0003 |
| MicroHAWK, ID-20, SXGA, HD, 64 mm, Plus decoding | 7212-2064-0002 |
- Suggested configurations.The ID-20 can be ordered to specification for OEM designs.
- All ID-20 models include a 2 m USB 2.0 cable.
Licenseupgrade
Licensed features on MicroHAWK products are fieldupgradable by purchasing a license upgrade:
| License upgrade | Order code |
|---|---|
| License, AutoID, High Speed, MicroHAWK | LIC-701-001 |
| License, AutoID, Plus Decoder 1D/2D, MicroHAWK | LIC-701-002 |
| License, AutoID, X-Mode Decoder, MicroHAWK | LIC-701-003 |
| License, AutoID, High Speed, Plus Decoder 1D/2D,MicroHAWK | LIC-701-004 |
| License, AutoID, High Speed, X-Mode Decoder,MicroHAWK | LIC-701-005 |
Accessories
Mounting
| Type | Description | Order code |
|---|---|---|
| Standard mounts | Kit, L Bracket, MicroHAWK | 98-9000041-01 |
| Kit, 1/4-20 Camera mount, MicroHAWK | 98-9000047-01 | |
| Kit, mounting, APG, MS-4, MINI, MicroHAWK | 98-9000054-01 |
Optical and illumination
| Type | Description | Order code |
|---|---|---|
| Mirror | Kit, Right angle mirror, MicroHAWK 20 | 98-9000057-01 |
Specifications
| Decoder | Standard (High-Contrast 1D) | |
| Plus (High-Contrast 1D/2D) | ||
| X-Mode (Poor or Damaged) | ||
| Speed | Standard (up to 10 FPS) | |
| Density | Standard, High-Density or UHD | |
| Sensor (CMOS) | WVGA 0.34MP (752×480)Global Shutter, up to60 FPS | |
| SXGA 1.2MP (1280×960)Global Shutter, up to42 FPS | ||
| QSXGA 5.0MP (2592×1944)Rolling Shutter, upto 5 FPSBayer pattern color sensor | ||
| Exposure | 50 to 100,000 µs Default: 2,500 µs | |
| Focus | Fixed Focus at 50-300 mm (SD, HD); 64 or 400mm (UHD) | |
| Connectivity | USB 2.0 High Speed (Ethernet over USB) / HID | |
| Connector | Micro-B USB | |
| Cable | 2 m USB cable included | |
| Illumination | Inner LEDs | 4 White/4 Red |
| Outer LEDs | N/A | |
| Discrete I/O | N/A | |
| Electrical | 5 VDC ± 5%, 350 mA at 5 VDC (typ.) | |
| Dimensions | 24 × 34 × 39 mm | |
| Weight | 26 g | |
| Enclosure | IP40, Plastic | |
| Indicators | Target Pattern, Good Read Green Flash | |
| Light Source | Type | High output LEDs |
| Wavelength | 625 nm (Inner Red) nominal / 617 nm (OuterRed) nominal | |
| Operating Life | 50,000 hours @ 25° C | |
| Environmental | Operating Temperature | 0° to 45° C (32° to 113° F) |
| Storage Temperature | –50° to 75° C (–58° to 167° F) | |
| Humidity | 5% to 95% (non-condensing) | |
| Emissions | EN 55022:2010 Class B Limits | |
| Safety and Quality | Certifications | FCC, CE, UL |
| RoHS Compliant | Yes | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
