OMRONPhotoelectric sensorsE3C-LDAE3C-LR15N 2M E3C 2060G E3CLR15N2M OMRON Laser Sensor Head, Coaxial Retroreflective, 7 m, Variable Spot, Ligh..
OMRON E3C-LR15N 2M E3C 2060G E3CLR15N2M - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

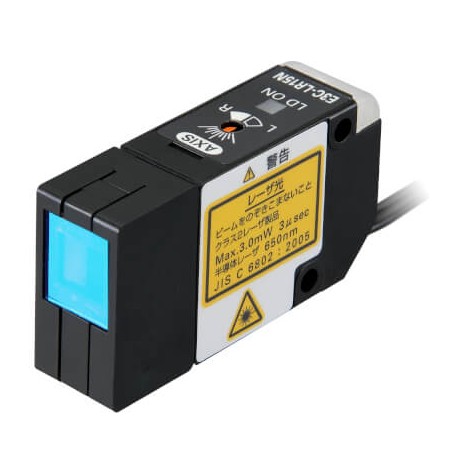

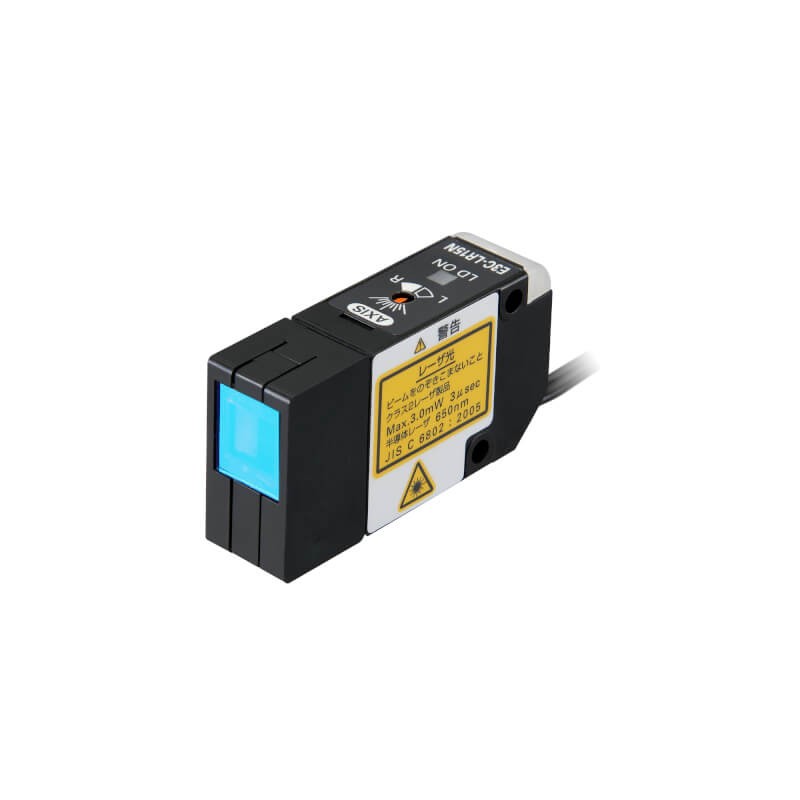

E3C-LR15N 2M E3C 2060G E3CLR15N2M OMRON Laser Sensor Head, Coaxial Retroreflective, 7 m, Variable Spot, Ligh..

Reference: E3C-LR15N 2M

Code: E3C 2060G

Catalog Number: E3CLR15N2M

Manufacturer: OMRON

Description:

Laser Sensor Head, Coaxial Retroreflective, 7 m, Variable Spot, Light Intensity Optimized for Glass, 2 M Cable
Laser sensor head, coaxial retroreflective, 7 m, variable spot, glass optimised light intensity, 2 m cable
Laser sensor head, coaxial retro-reflective, 7 m, variable spot, light intensity optimized for glass, 2 m cable

Categories:

  • Sensors > Retroreflective photoelectric sensor
  • OMRON > Photoelectric sensors > E3C-LDA

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 546,51 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

ShapeCuboidSensing methodCoaxial retro-reflectiveSensing distance7000 mmSensing distance (min.)0 mmSetting methodTeach-InConnection methodCableCable length2 mResponse time0.08 msMaterial housingABSType of lightLaser diode, red lightLaser class2Power supply voltage12-24 VFeaturesHigh precision positioning & detection, M.S.R.

ETIM for 707111 Sensors (EC002717)

Feature nameExplosion safety category for dust (EF003998)
Feature valueNone
Feature nameVoltage type (EF000187)
Feature valueDC
Feature nameConstruction type housing (EF004008)
Feature valueCuboid
Feature nameLaser protection class (EF004027)
Feature valueClass 2
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP40
Feature nameSetting procedure (EF003994)
Feature valueTeach-In
Feature nameMaterial of optical surface (EF004134)
Feature valueGlass
Feature nameSensing mode (EF007503)
Feature valueLight-/dark switching
Feature nameType of interface for safety communication (EF003956)
Feature valueOther
Feature nameType of switch function (EF003963)
Feature valueProgrammable/configurable
Feature nameType of electric connection (EF003961)
Feature valueCable with connector
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameType of light (EF004029)
Feature valueLaser diode, red light
Feature nameType of switching output (EF003962)
Feature valuePNP/NPN
Feature nameOperation agent-safety class (EF003982)
Feature valueSafety class 3
Feature nameExplosion safety category for gas (EF003997)
Feature valueNone
Feature nameWith communication interface RS-485 (EF007314)
Feature valueNo
Feature nameAnalogue output -10 V ... +10 V (EF006809)
Feature valueNo
Feature nameWith communication interface SSD (EF007315)
Feature valueNo
Feature nameWith communication interface SSI (EF007316)
Feature valueNo
Feature nameAnalogue output 0 V ... 10 V (EF006807)
Feature valueNo
Feature nameAnalogue output 0 mA ... 20 mA (EF006808)
Feature valueNo
Feature nameWith communication interface RS-232 (EF007312)
Feature valueNo
Feature nameWith communication interface DeviceNet (EF007308)
Feature valueNo
Feature nameWith monitoring function downstream switching devices (EF004052)
Feature valueNo
Feature nameWith reflector (EF007448)
Feature valueNo
Feature nameWith communication interface PROFIBUS (EF007311)
Feature valueNo
Feature nameSuitable for safety functions (EF001597)
Feature valueNo
Feature nameWith communication interface analogue (EF007305)
Feature valueNo
Feature nameWith communication interface INTERBUS (EF007310)
Feature valueNo
Feature nameWith communication interface RS-422 (EF007313)
Feature valueNo
Feature nameWith communication interface CANOpen (EF007307)
Feature valueNo
Feature nameWith communication interface Ethernet (EF007309)
Feature valueNo
Feature nameAnalogue output 4 mA ... 20 mA (EF006810)
Feature valueNo
Feature nameWith time function (EF003582)
Feature valueNo
Feature namePre failure notice (EF004129)
Feature valueNo
Feature nameWith communication interface AS-Interface (EF007306)
Feature valueNo
Feature nameWith other analogue output (EF007485)
Feature valueNo
Feature nameWith restart blockage (EF004054)
Feature valueNo
Feature nameNumber of protected contact energized outputs (EF003952)
Feature value0
Feature nameMax. switching distance (EF007367)
Feature value7000 mm
Feature nameNumber of semiconductor outputs with signalling function (EF003945)
Feature value2
Feature nameWavelength of the sensor (EF004132)
Feature value650 nm
Feature nameResponse time (EF004094)
Feature value0.08 ms
Feature nameNumber of protected semiconductor outputs (EF003951)
Feature value0
Feature nameMin. reflector distance (EF004046)
Feature value0 mm
Feature nameWidth sensor (EF007094)
Feature value12.8 mm
Feature nameRated switching distance (EF008289)
Feature value7000 mm
Feature nameHeight of sensor (EF007283)
Feature value25 mm
Feature nameLength of sensor (EF007334)
Feature value46.6 mm
Feature nameSwitching frequency (EF003587)
Feature value6.5 Hz
Feature nameNumber of contact energized outputs with signalling function (EF003946)
Feature value0
Feature nameRated control supply voltage DC (EF003980)
Feature value12 V
Feature nameAmbient temperature (EF002386)
Feature value-10 °C
