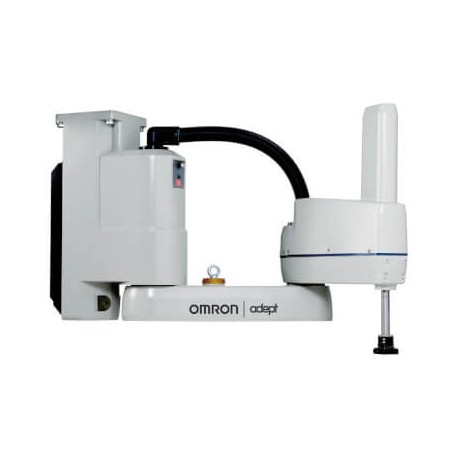

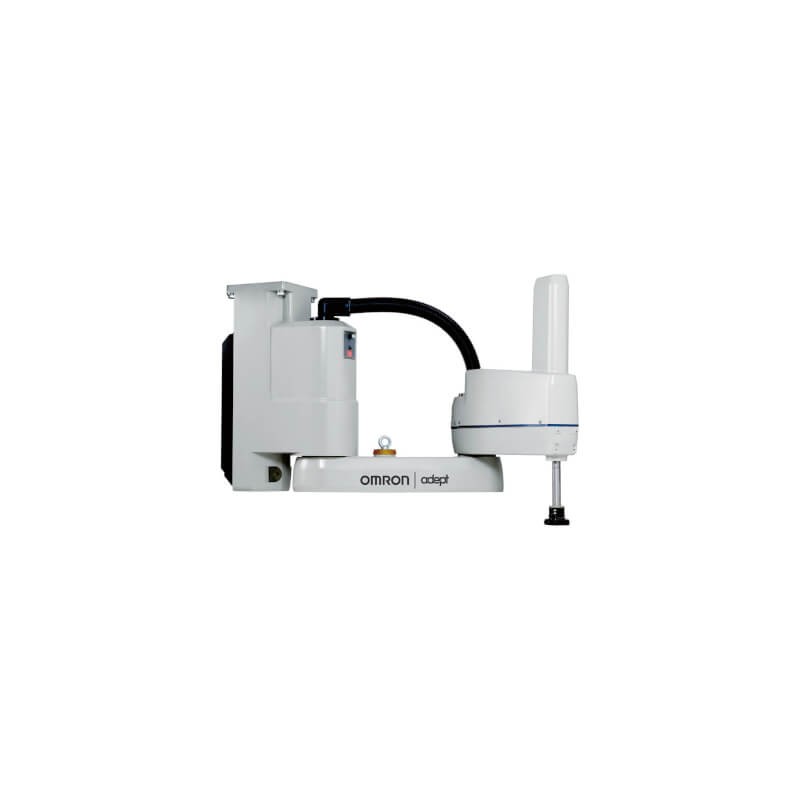

Cobra 800 Pro Inverted, IP65, Additional

eCobra 800 Pro Inverted, Add-On, 5.5 kg payload, 800mm reach, 4 axis, 210mm Zaxis, IP65

More details


Home > OMRON

* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Viewed products


Best sellers

More info



Specifications

Robot typeScara
Robot controllerEX Controller
eCobra typePro
Degree of protection (IP)IP65
Cleanroom classNone
Payload5.5 kg
Reach800 mm
Z-Stroke210 mm
Cycle time0.54 s
Moment of inertia450 kg·cm²
Repeatability0.017 mm
Degrees of freedom4
Number of joints4
Suitable for pedestal/floor mounting
Suitable for ceiling mounting
ePLC
EtherCAT communication
TCP/IP communication
RS232 communication
Vision
Conveyor tracking
Force sensor
PackXpert
I/O-Blox
Number of I/O-Blox8

Accessories

02853-000ADEPT Cobra 600/800 All Spare_Part Valve Kit, 24VDC
03695-000Cable, XIO Termination Block to XIO Connector on Robot
04677-030IO Blox extension cable, 3.0 m (connects IO Blox to robot)
04679-030IO Blox extension cable, 3.0 m (connects IO Blox to IO Blox)
09443-000Cable, Belt Encoder to M12 Female, Y-Adapter, 2-Encoder Support, 3 m
09446-050Encoder Extension Cable, M12 Male to M12 Female, 8-pin, 5 m
10046-010T20 Pendant with 10 m Cable (jumper plug included)
10048-000T20 Pendant-Jumper Plug
10051-003ADEPT Cobra 600/800 All Spare_Part T20 Pendant Adapter Cable
10079-000T20 Pendant Wall Bracket
13463-000XBELTIO Cable
90356-30100IO Blox 8/IP-8/OP to (expansion - connects to previous IO Blox)
90356-30200IO Blox 8/IP-8/OP (1st IO Blox - connects to robot)
90356-40100XIO Termination Block, 12/IP-8/OP
