OBO BETTERMANNEGS device systems - OBO BETTERMANNWS-UB RW0.5 6120920 OBO BETTERMANN SWITCH MULTIPLE

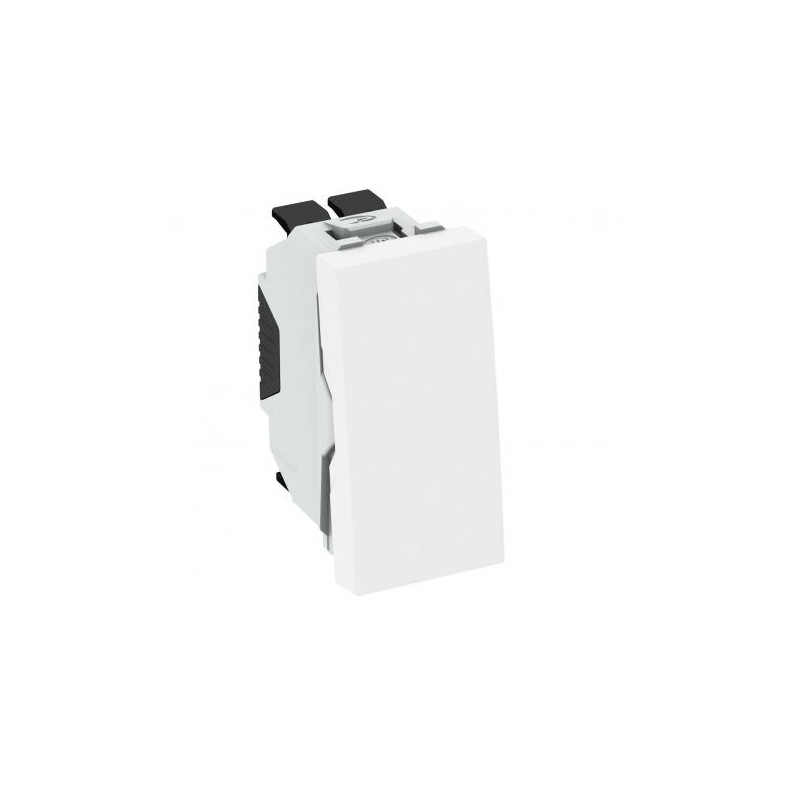

OBO BETTERMANN WS-UB RW0.5 6120920 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

WS-UB RW0.5 6120920 OBO BETTERMANN SWITCH MULTIPLE

Reference: WS-UB RW0.5

Code: 6120920

Manufacturer: OBO BETTERMANN

Description:

SWITCH MULTIPLE
Switch multiple 10 A, 250 V pure white 9010 Polycarbonate, PC
One-way/changeover switch, 1/2 module. Changeover switch 1-pin, 10 A, 250 V~, with screwless terminals.For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

Categories:

  • Domestic switching devices > Installation switch
  • OBO BETTERMANN > EGS device systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 13,39 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Circuit typeChangeover switch
ColourPure white; RAL 9010
Connection typeScrewless terminal
Depth36 mm
Dimension10 A, 250 V
Fastening typeLock
Halogen-freeyes
Height45 mm
Illuminationno
Labelling panelno
MaterialPolycarbonate
Mounting typeDevice installation duct
Nominal current10 A
Nominal voltage250 V
Protection ratingIP20
Surface versionMatt
Text box/labelling areano
Warning lightno
Width22,5 mm

ETIM for 6120920 Domestic wiring accessories and controls (EC001590)

Feature nameWiring system (EF002960)
Feature valueTwo-way switch
Feature nameMounting method (EF000003)
Feature valueTrunking mounted
Feature nameType of fastening (EF002442)
Feature valueEngage (snap)
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameMaterial quality (EF001257)
Feature valueOther
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameColour (EF000007)
Feature valueWhite
Feature nameRAL-number (similar) (EF003882)
Feature value9010
Feature nameLabel space/information surface (EF009419)
Feature valueNo
Feature nameLighting (EF000134)
Feature valueNo
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP20
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature nameConnection type (EF000124)
Feature valueScrewless terminal
Feature nameDevice width (EF008808)
Feature value22.5 mm
Feature nameDevice height (EF008809)
Feature value45 mm
Feature nameDevice depth (EF008810)
Feature value36 mm

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE INSTALLATION SYSTEMS OBO EN
23 Mbytes
