WDB L 400 A2 6363750 OBO BETTERMANN Wall and ceiling bracket WDB L 400 A2, light load version B400mm Stainle..
WDB L 400 A2
6363750
OBO BETTERMANN

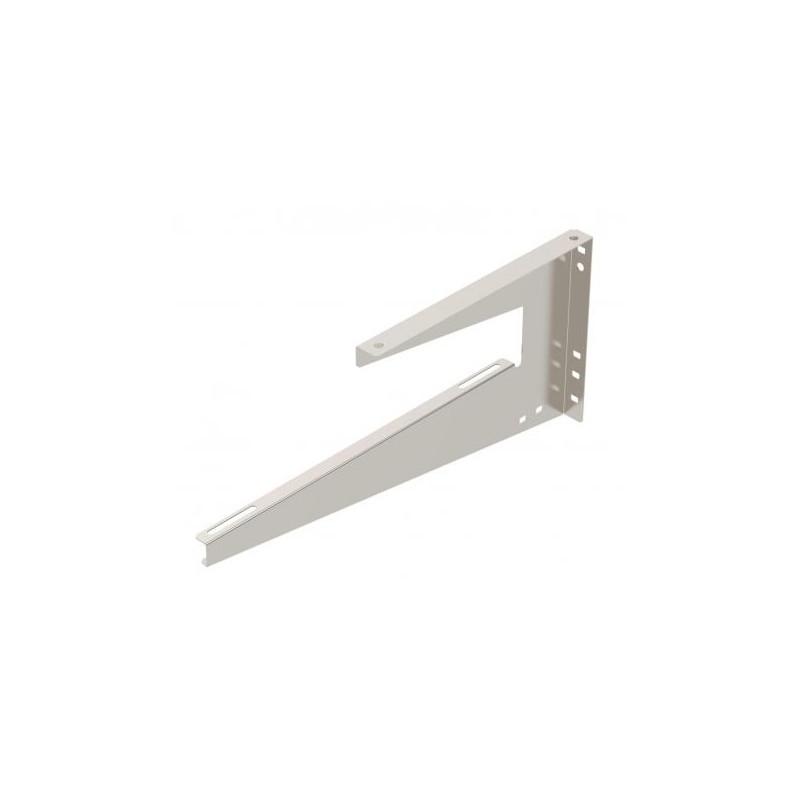

Wall and ceiling bracket WDB L 400 A2, light load version B400mm Stainless steel 1.4301, A2, 1.4301 Polished, with post-treatment
Wall and ceiling bracket A2. Wall and ceiling clamp for universal structural fastening.
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Adjustable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 3,7738 kg CO2e / 1 Piece |
| Colour | stainless steel |
| Dimension | B400mm |
| Dimension A | 300 mm |
| Dimension B | 410 mm |
| Dimension H | 226 mm |
| Dimension H1 (mm) | 65 |
| Dimension L | 490 mm |
| F in kN ceiling | 0,12 kN |
| F in kN wall | 0,12 kN |
| for width min. | 400 |
| Height | 226 mm |
| Hole diameter | 7 mm |
|---|---|
| Length | 490 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Material thickness | 1,25 mm |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Suitable for mesh cable tray | yes |
| Suitable for metric threaded rod | 8 |
| Surface | Bright, treated |
| Tray fastening | Screw-on |
| Version for | Suspension bracket (C clamp) |
| Width | 410 mm |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Mounting bracket (C-shape) |
| Suitable for wire mesh tray (EF005163) | Yes |
| Suitable for cable ladder (EF005165) | Yes |
| Suitable for cable tray (EF005166) | Yes |
| Tray mounting (EF005212) | Screw fix |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Stainless steel |
| Material quality (EF001257) | Rustproof and acidproof steel |
| Surface protection (EF000139) | Other |
