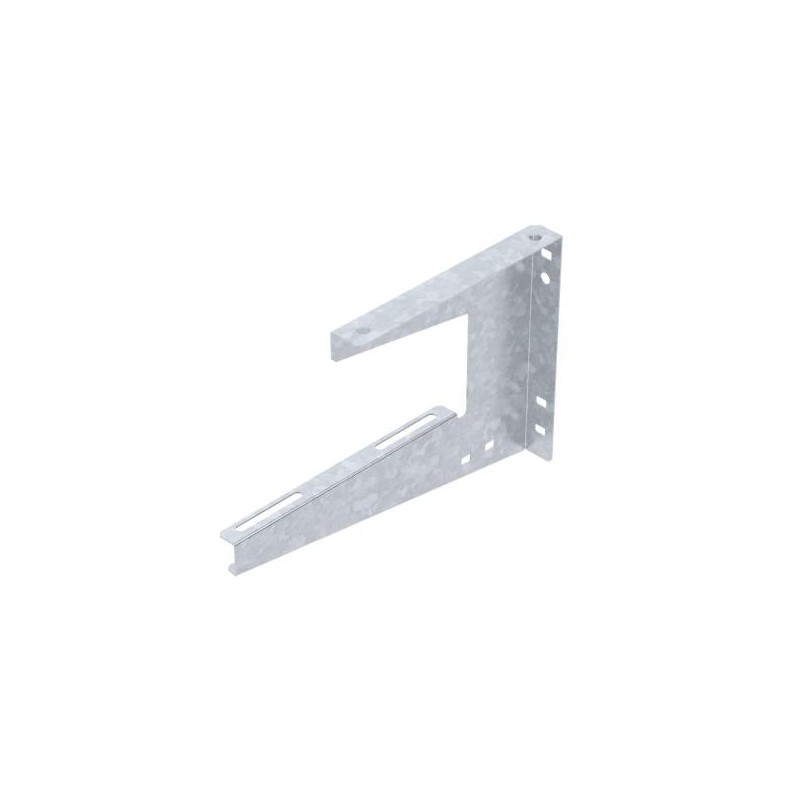

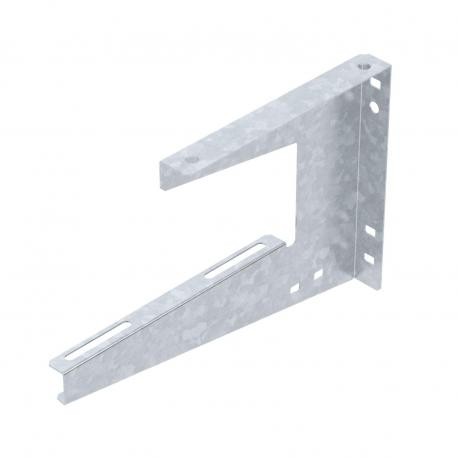

WDB L 200 FT 6363726 OBO BETTERMANN Wall and ceiling bracket WDB L 200 FT, light load version B200mm Steel, ..
WDB L 200 FT
6363726
OBO BETTERMANN
Wall and ceiling bracket WDB L 200 FT, light load version B200mm Steel, St Hot dip galvanized, DIN EN ISO 1461
Wall and ceiling bracket FT. Wall and ceiling bracket for universal structural fastening.
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Adjustable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 1,2935 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | B200mm |
| Dimension A | 195 mm |
| Dimension B | 210 mm |
| Dimension H | 194 mm |
| Dimension H1 (mm) | 80 |
| Dimension L | 285 mm |
| F in kN ceiling | 0,3 kN |
| F in kN wall | 0,3 kN |
| for width min. | 200 |
| Height | 194 mm |
| Hole diameter | 7 mm |
|---|---|
| Length | 285 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Material thickness | 1,25 mm |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Suitable for mesh cable tray | yes |
| Suitable for metric threaded rod | 8 |
| Surface | Hot-dip galvanised |
| Tray fastening | Screw-on |
| Version for | Suspension bracket (C clamp) |
| Width | 210 mm |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Mounting bracket (C-shape) |
| Suitable for wire mesh tray (EF005163) | Yes |
| Suitable for cable ladder (EF005165) | Yes |
| Suitable for cable tray (EF005166) | Yes |
| Tray mounting (EF005212) | Screw fix |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Hot dip galvanized |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
