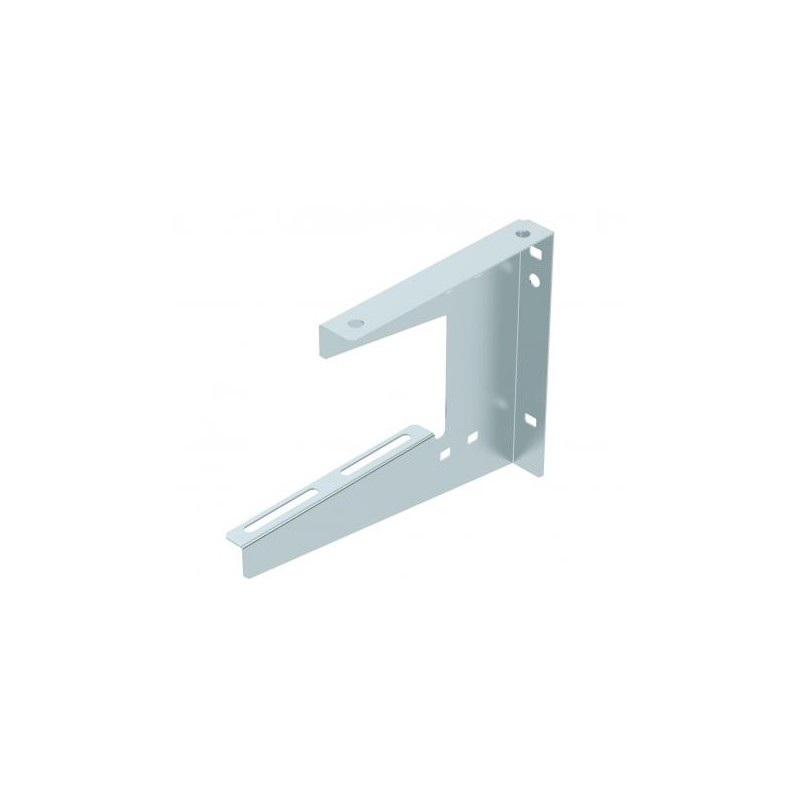

WDB L 150 FS 6363704 OBO BETTERMANN Wall and ceiling bracket WDB L 150 FS, light load version B150mm Steel, ..
WDB L 150 FS
6363704
OBO BETTERMANN
Wall and ceiling bracket WDB L 150 FS, light load version B150mm Steel, St galvanized strip, DIN EN 10346
Wall and ceiling bracket FS. Wall and ceiling bracket for universal structural fastening.
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Adjustable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 1,2424 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | B150mm |
| Dimension A | 170 mm |
| Dimension B | 160 mm |
| Dimension H | 186 mm |
| Dimension H1 (mm) | 84 |
| Dimension L | 235 mm |
| F in kN ceiling | 0,22 kN |
| F in kN wall | 0,22 kN |
| for width min. | 150 |
| Height | 186 mm |
| Hole diameter | 7 mm |
|---|---|
| Length | 235 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Material thickness | 1,25 mm |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Suitable for mesh cable tray | yes |
| Suitable for metric threaded rod | 8 |
| Surface | Strip galvanized |
| Tray fastening | Screw-on |
| Version for | Suspension bracket (C clamp) |
| Width | 160 mm |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Mounting bracket (C-shape) |
| Suitable for wire mesh tray (EF005163) | Yes |
| Suitable for cable ladder (EF005165) | Yes |
| Suitable for cable tray (EF005166) | Yes |
| Tray mounting (EF005212) | Screw fix |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Pre-galvanised |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
