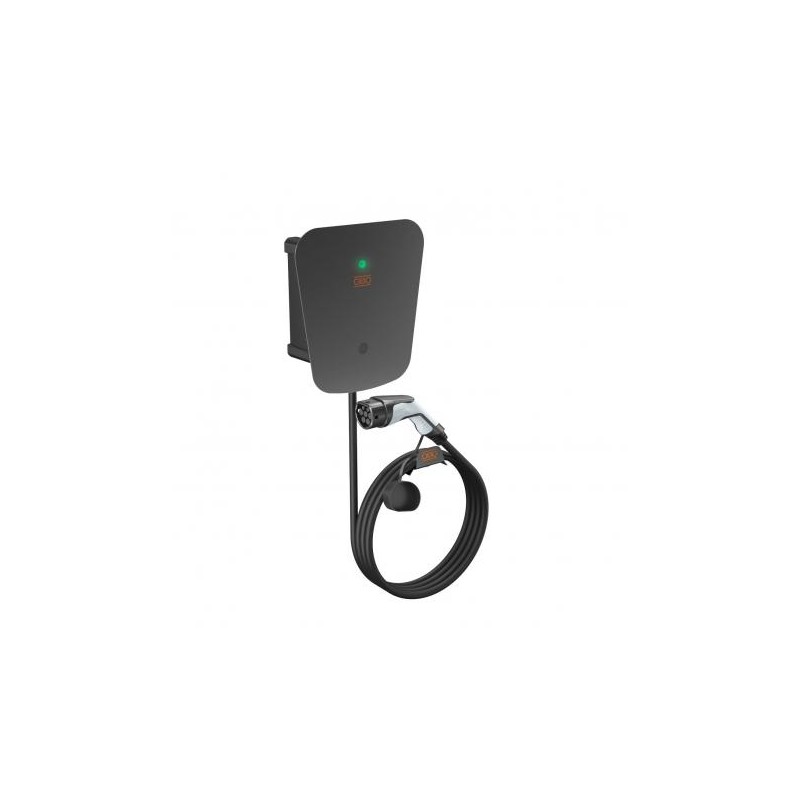

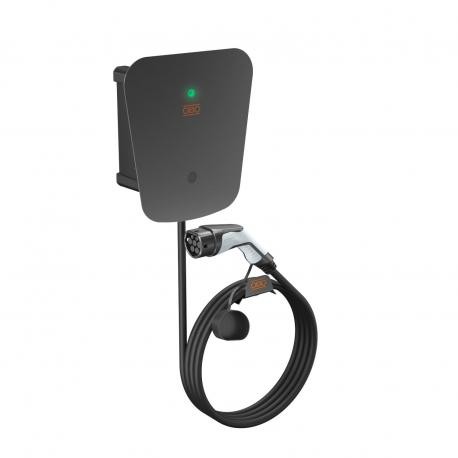

WB AC BL 6570020 OBO BETTERMANN WB AC BL charging station, Basic 330x300x127 Polycarbonate, PC lacquered
WB AC BL
6570020
OBO BETTERMANN
WB AC BL charging station, Basic 330x300x127 Polycarbonate, PC lacquered
Ion Charging station Basic. The Ion charging station for the charging of electrical vehicles in private areas as a singular charging point. Suitable for permanent mounting on the wall in interior or protected exterior areas. • Charging according to Mode 3 in accordance with IEC 61851-1• Single, double and three-phase charging• Suitable for TN and TT networks• Integrated temperature monitoring• DC error current monitoring• Status information via LED display• Prewired, ready for connection• Including 5 m charging cable with type 2 charging connector and cable bracket• Supply from above or below• Stainless steel design elements• Charging power can be limited to a fixed value, factory-set value 11 kW• Modbus RTU protocol via RS-485 interface for bidirectional communication• Can be controlled
Home > OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 15,4409 kg CO2e / 1 Piece |
|---|---|
| Colour | Black |
| Depth | 127 mm |
| Dimension | 330x300x127 |
| Height | 330 mm |
| IFTTT support | no |
| Material | Polycarbonate |
| Max. Output per charging point | 22 kW |
| Nominal connection output | 22 kW |
| Number of charging points | 1 |
| Number of type 2 charging connectors | 1 |
| Protection rating | IP66 |
|---|---|
| Protection rating IK code | IK08 |
| Surface | Painted |
| Surge protection | no |
| Version for | 3-phase |
| Width | 300 mm |
| With circuit breaker | no |
| With communication interface | yes |
| With domestic junction box (HAK) | no |
| With energy meter | no |
| With load management | no |
| Feature Name | Feature Value |
|---|---|
| Installation side connection model (EF025053) | 3-phase |
| Nominal connection power (EF002136) | 22 kW |
| Number of charging units (EF009078) | 1 |
| Max. power per charging point (EF009300) | 22 kW |
| Width (EF000008) | 300 mm |
| Height (EF000040) | 330 mm |
| Depth (EF000049) | 127 mm |
| Mounting method (EF000003) | Wall mounting |
| Number of vehicle connectors Type 1 (EF009301) | 0 |
| Number of vehicle connectors Type 1 CCS (EF009302) | 0 |
| Number of vehicle connectors Type 2 (EF009303) | 1 |
| Number of vehicle connectors Type 2 CCS (EF009304) | 0 |
| Number of socket outlets Type 2 (EF009305) | 0 |
| Number of vehicle connectors GB AC (EF009306) | 0 |
| Number of vehicle connectors GB DC (EF009307) | 0 |
| Number of socket outlets GB (EF009308) | 0 |
| Number of socket outlets Type 3 (EF009309) | 0 |
| Number of vehicle connectors CHAdeMO (EF009310) | 0 |
| Number of CEE socket outlets (IEC 60309) (EF006577) | 0 |
| With house connection box (EF009089) | No |
| Number of household socket outlets (EF009311) | 0 |
| Number of earth leakage circuit breakers type A (EF009091) | 0 |
| Number of earth leakage circuit breakers type B (EF009092) | 0 |
| With miniature circuit breaker (MCB) (EF009314) | No |
| With energy meter (EF009313) | No |
| Housing material (EF001596) | Plastic |
| Degree of protection (IP) (EF005474) | IP66 |
| Impact strength (EF004293) | IK08 |
| IFTTT support available (EF011072) | No |
