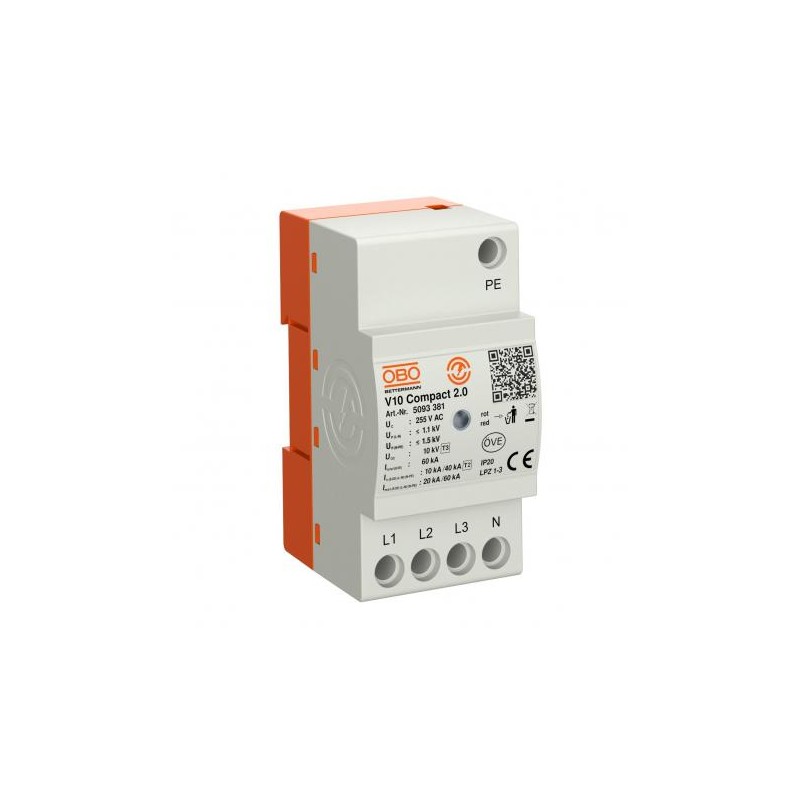

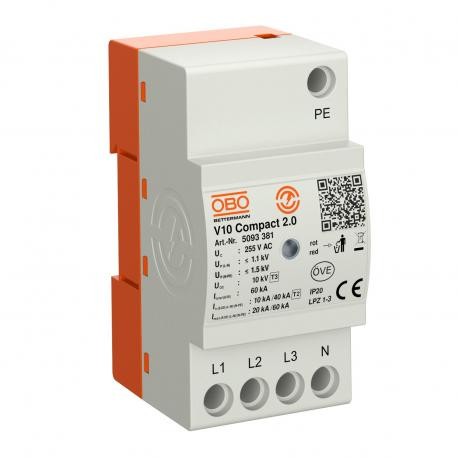

V10 Compact2.0 5093381 OBO BETTERMANN Surge Arrester V10 Compact2.0, V10 Compact 2.0 255V
V10 Compact2.0
5093381
OBO BETTERMANN
Surge Arrester V10 Compact2.0, V10 Compact 2.0 255V
Discharger w/ overvoltages V10 Compact2.0 V10 Compact 2.0 255V
Surge arrester V10 Compact. Surge protective device, compact module, type 2+3• Surge protection in main and sub-distributions according to IEC 60364-4-44• Arresting capacity up to 60 kA (8/20) in total• Integrated 3+1 solution for TN and TT network systems on 45 mm module width • High-performance varistor technology • Including thermic and dynamic cut-off unit and visual status display Application: Main and sub-distribution as well as device protection in three-phase current systems.
TBS Transient and lightning protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Arrester surge current (8/20 µs) [total] | 60 kA |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,7671 kg CO2e / 1 Piece |
| Conductor cross-section, flexible (fine-wire), max. | 10 mm² |
| Conductor cross-section, flexible (fine-wire), max. | 8 AWG |
| Conductor cross-section, flexible (fine-wire), min. | 13 AWG |
| Conductor cross-section, flexible (fine-wire), min. | 2,5 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), max. | 10 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), max. | 8 AWG |
| Conductor cross-section, rigid (single-wire/multiwire), min. | 2,5 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), min. | 13 AWG |
| Dimension | 255V |
| Follow current quenching capacity (eff) [N-PE] | 0,1 kA |
| Height | 90 mm |
| Installation type | DIN rail 35 mm |
| Integrated back-up fuse | no |
| Length | 60,5 mm |
| Lightning protection zone LPZ | 1→3 |
| Max. mains-side overcurrent protection | 63 A gG |
| Maximum back-up fuse | 63 A |
| Maximum continuous voltage AC | 255 V |
| Maximum discharge current (8/20 μs) | 20 kA |
| Maximum discharge current (8/20 μs) [L-N] | 20 kA |
| Maximum discharge current (8/20 μs) [N-PE] | 60 kA |
| Network form | All |
| Nominal discharge current (8/20 µs) | 10 kA |
| Nominal discharge current (8/20 µs) [L-N] | 10 kA |
|---|---|
| Nominal discharge current (8/20 µs) [N-PE] | 40 kA |
| Nominal voltage AC (50/60 Hz) | 230 V |
| Operating temperature, max. | 70 °C |
| Operating temperature, min. | -40 °C |
| Permitted temperature range, max. | 70 °C |
| Permitted temperature range, min. | -40 °C |
| Pole number | 4 |
| Pole version | 3+N/PE |
| Protection level [L-N] | ≤1,1 |
| Protection rating | IP20 |
| Response time | <25 ns |
| Signalling on device | Visual |
| SPD to EN 61643-11 | Type 2+3 |
| SPD to IEC 61643-1 | Class II+III |
| Test class, type 2 | yes |
| Test class, type 3 | yes |
| TN network form | yes |
| TN-C-S network form | yes |
| TN-S network form | yes |
| Torque | 2 Nm |
| TT network form | yes |
| Version for | 3+NPE |
| Width | 45 mm |
| Feature Name | Feature Value |
|---|---|
| System configuration TN (EF009928) | Yes |
| System configuration TN-C-S (EF009933) | Yes |
| System configuration TN-S (EF009930) | Yes |
| System configuration TT (EF009931) | Yes |
| Nominal discharge surge current (8/20) (EF004214) | 10 kA |
| Max. discharge surge current (8/20) (EF012274) | 20 kA |
| Nominal voltage AC (EF004220) | 230 V |
| Max. continuous voltage AC (EF004198) | 255 V |
| Voltage protection level L-N (EF004236) | 1.1 kV |
| Integrated backup fuse (EF008797) | No |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Construction size (EF002566) | Other |
| Max. conductor cross section solid (solid, stranded) (EF008827) | 10 mm² |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 10 mm² |
| Signalling at the device (EF004241) | Optic |
| Category type 2 (EF004230) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SURGE PROTECTION OBO EN.pdf | 24 Mbytes |
|
