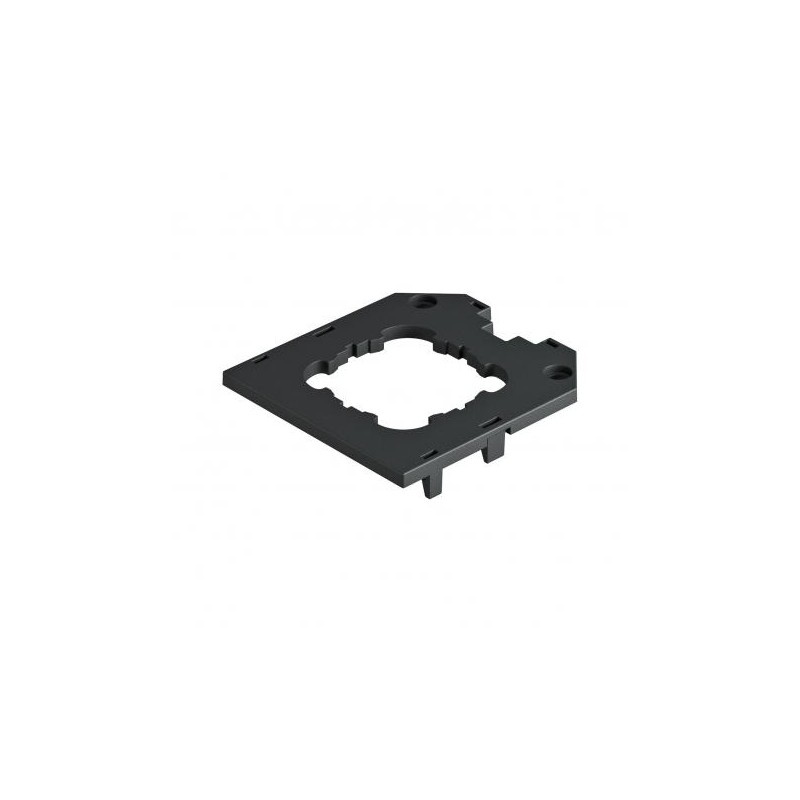

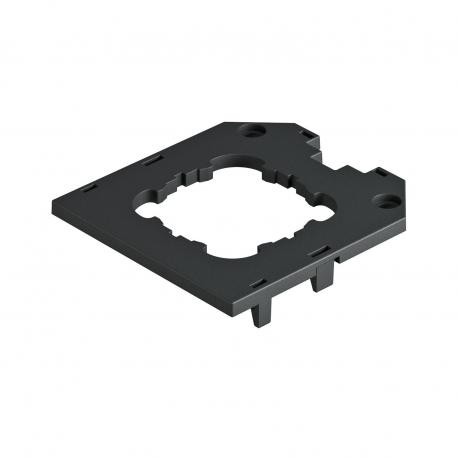

UT3 D1 7408781 OBO BETTERMANN TAPAETA P/UT3, RING BEARER, UT3 D1
UT3 D1
7408781
OBO BETTERMANN
10
TAPAETA P/UT3, RING BEARER, UT3 D1
Mat for UT3, carrier ring 82,5x76x4 black graphite 9011 Polyamide, PA
Cover plate for universal support UT3, round installation opening for EKR device. Cover plate for the installation of 1 installation device with 50 mm central plate.
Sub-floor systems > Cover plate for installation units
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Application | Mounting box |
|---|---|
| Blanking lid | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,061 kg CO2e / 1 Piece |
| Colour | Graphite black; RAL 9011 |
| Dimension | 82,5x76x4 |
| Division in UT3 | 1/2 |
| Fastening type | Lockable |
| Installation technology | 50 mm central plate |
| Labelling panel | no |
|---|---|
| Length | 82,5 mm |
| Material | Polyamide |
| Number of installable devices | 1 |
| Number of round openings | 1 |
| Number of single openings | 1 |
| Suitable for labelling panel | no |
| Width | 76 mm |
| Feature Name | Feature Value |
|---|---|
| Cover plate length (EF007902) | 82.5 mm |
| Application (EF000041) | Device cup |
| Number of single openings (EF001118) | 1 |
| Number of double openings (EF001119) | 0 |
| Number of triple openings (EF001120) | 0 |
| Number of CEE-/perilex openings (EF001121) | 0 |
| Number of square openings (EF005598) | 0 |
| Number of round openings (EF006412) | 1 |
| Number of oval openings (EF006413) | 0 |
| Installation technique (EF001474) | Other |
| Type of fastening (EF002442) | Snap |
| Blind plate (EF005651) | No |
| With label area (EF005040) | No |
| Suitable for label area (EF004523) | No |
| Material (EF002169) | Polyamide (PA) |
| Colour (EF000007) | Black |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
