UDHOME9 2M 7427328 OBO BETTERMANN UNIT PORTAMEC. COMPLETE UDHOME9 2M
UDHOME9 2M
7427328
OBO BETTERMANN
UNIT PORTAMEC. COMPLETE UDHOME9 2M

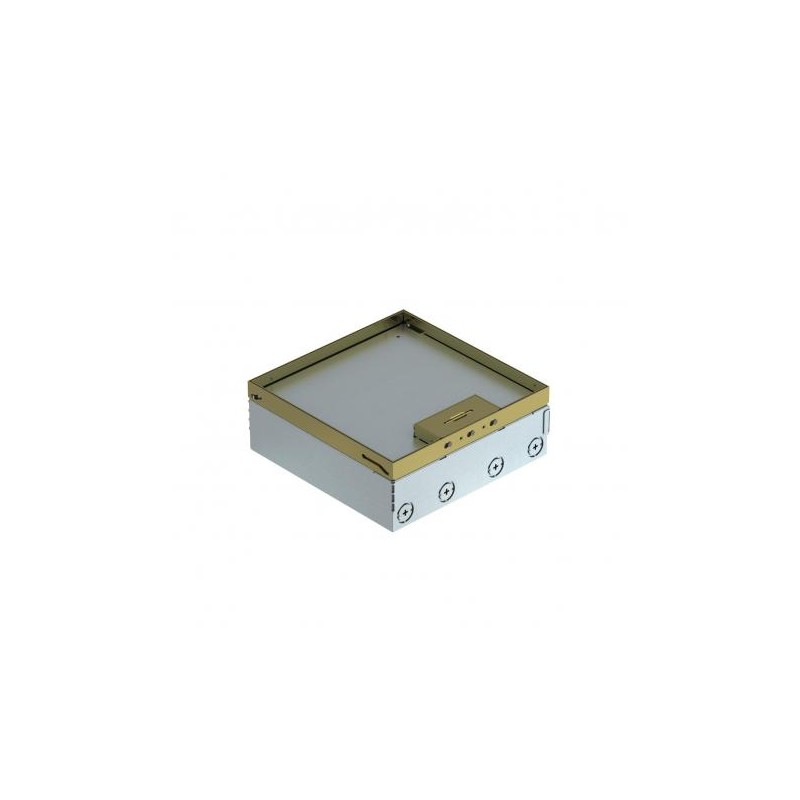

UDHOME9 floor box, freely equippable, brass. Square floor box for use in dry-cleaned cavity and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M25). Empty housing for up to three UT4 universal supports for up to 12 Modul 45 ® devices. Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 95 mm, the height-adjustment range + 30 mm.Surfaces visible in the floor covering made of brass.
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Cable outlet version | Swivellable cord outlet |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 19,0193 kg CO2e / 1 Piece |
| Cover version | Floor covering recess |
| Equipment | Empty housing |
| Floor covering thickness | 15 mm |
| Floor height, max. | 125 mm |
| Floor height, min. | 95 mm |
| Height-adjustment range, max. | 125 mm |
| Height-adjustment range, min. | 95 mm |
| Length | 246 mm |
| Length of external dimensions | 243 mm |
| Length of installation dimensions | 246 mm |
| Material | Brass |
|---|---|
| Opening mechanism | Handle |
| Protection rating (IP) when unused | IP40 |
| Protection rating (IP) when used | IP20 |
| Protection rating IK code | IK10 |
| Screed height, max. | 110 mm |
| Screed height, min. | 95 mm |
| Vertical load, large area | to 5,000 N |
| Vertical load, small area | to 3,000 N |
| Wide external dimensions | 243 mm |
| Wide installation dimensions | 246 mm |
| Width | 246 mm |
Datasheet - PDF
