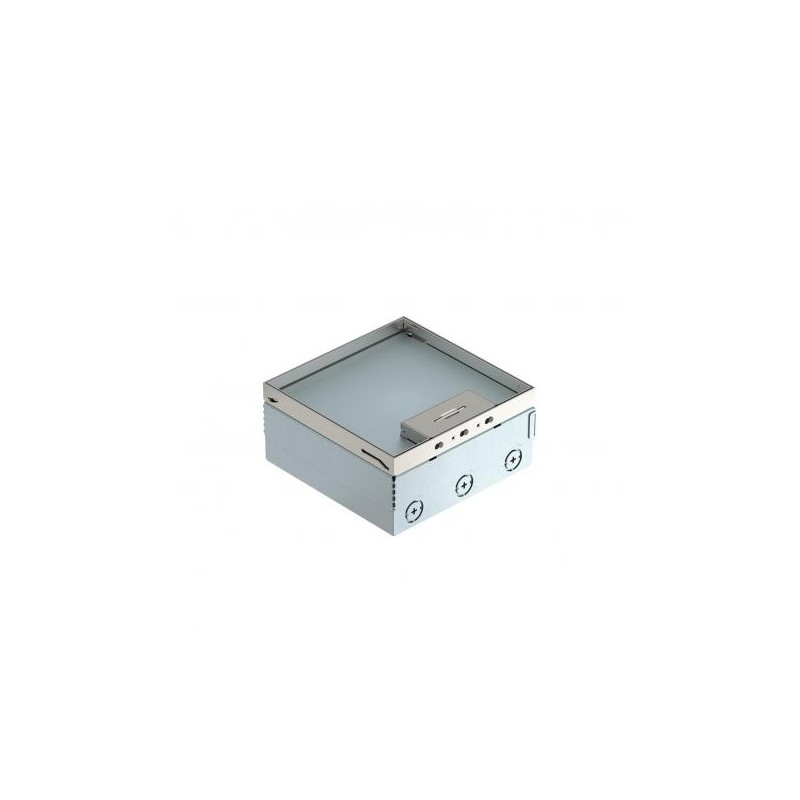

UDHOME4 2V 7427232 OBO BETTERMANN UNIT PORTAMEC. FULL UDHOME4 2V
UDHOME4 2V
7427232
OBO BETTERMANN
UNIT PORTAMEC. FULL UDHOME4 2V
UDHOME4 floor box, freely equippable, stainless steel. Square floor box for use in dry-cleaned cavity and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M25). Empty housing for up to 2 UT3 universal supports for up to 6 Modul 45 ® devices. Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 95 mm, the height-adjustment range + 30 mm.Surfaces visible in the floor covering made of stainless steel.
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Cable outlet version | Swivellable cord outlet |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 16,8469 kg CO2e / 1 Piece |
| Cover version | Floor covering recess |
| Equipment | Empty housing |
| Floor covering protection frame | no |
| Floor covering thickness | 15 mm |
| Floor height, max. | 125 mm |
| Floor height, min. | 95 mm |
| Height-adjustment range, max. | 125 mm |
| Height-adjustment range, min. | 95 mm |
| Length | 202 mm |
| Length of external dimensions | 199 mm |
| Length of installation dimensions | 202 mm |
| Material | Stainless steel 1.4301 |
| Number of mounting boxes | 2 |
| Opening mechanism | Handle |
| Protection rating (IP) when unused | IP40 |
|---|---|
| Protection rating (IP) when used | IP20 |
| Protection rating IK code | IK10 |
| Screed height, max. | 110 mm |
| Screed height, min. | 95 mm |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | no |
| Suitable for underfloor ducts | no |
| Suitable for wet care | no |
| Version for | Square |
| Vertical load, large area | to 5,000 N |
| Vertical load, small area | to 3,000 N |
| Wide external dimensions | 199 mm |
| Wide installation dimensions | 202 mm |
| Width | 202 mm |
| With floor covering recess | yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
