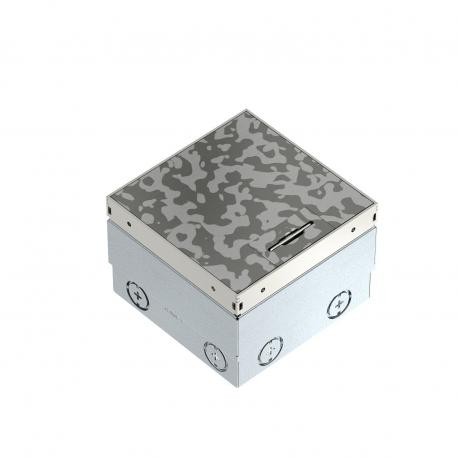

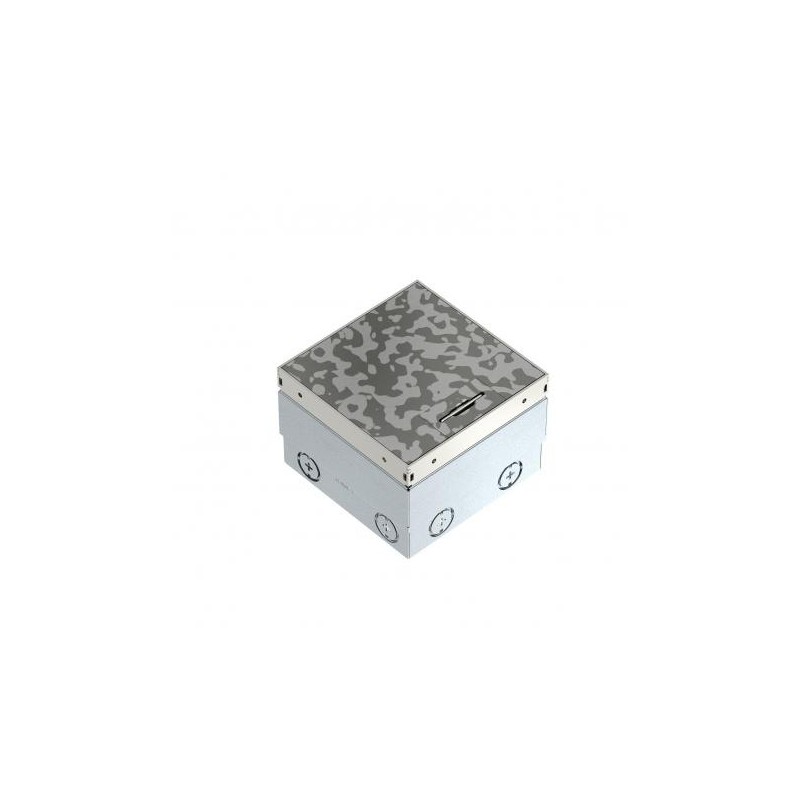

UDHOME2 GV D2 7368262 OBO BETTERMANN GV D2 UDHOME2 Complete Unit, Empty, Spots 140x140x110
UDHOME2 GV D2
7368262
OBO BETTERMANN
GV D2 UDHOME2 Complete Unit, Empty, Spots 140x140x110
Complete unit UDHOME2 GV D2, empty, Spots 140x140x110,
UDHOME2 floor socket, without floor covering recess, freely equippable, stainless steel, decorative plate: spots. Square floor socket for use in dry-care cavity and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M20/M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 100 mm, the height-adjustment range 35 mm.Frame and cover made of stainless steel and visible in the floor covering. Cover with Spots decorative plate. Empty housing for up to 2 Modul 45® devices in the mounting support and 2 data sockets in the optional data technology support.
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Application when unused | 6.101.1 Dry floor care |
|---|---|
| Application when used | 6.101.1 Dry floor care |
| Approvals | VDE |
| Cable outlet version | Swivellable cord outlet |
| CO2 Footprint (GWP) Cradle-to-Gate | 12,532 kg CO2e / 1 Piece |
| Device support to accept mounting boxes | no |
| Dimension | 140x140x110 |
| Equipment | Empty housing |
| Floor care | Dry |
| Floor covering protection frame | no |
| Floor height, max. | 135 mm |
| Floor height, min. | 100 mm |
| Frame version | Floor covering contact edge |
| Heavy-duty version | no |
| Height | 100 mm |
| Length | 140 mm |
| Nominal size for device installation units | 2 |
| Number of installable devices | 2 |
| Opening mechanism | Handle |
|---|---|
| Protection rating (IP) when unused | IP40 |
| Protection rating (IP) when used | IP20 |
| Protection rating IK code | IK10 |
| Seal installation option | no |
| Standard | EN 50085-2-2 |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Suitable for screed-covered underfloor ducts | no |
| Suitable for screed-flush closed underfloor ducts | no |
| Suitable for underfloor ducts | no |
| Suitable for wet care | no |
| Version for | Square |
| Vertical load, large area | to 15,000 N |
| Vertical load, small area | to 3,000 N |
| Width | 140 mm |
| With floor covering recess | no |
| Feature Name | Feature Value |
|---|---|
| Cover model (EF009212) | Square |
| With cable outlet in cover (EF015333) | Yes |
| With opening carpeting (EF004541) | No |
| Protective frame carpeting (EF004543) | No |
| Suitable for subfloor duct (EF006409) | No |
| Suitable for hollow floor (EF006410) | Yes |
| Suitable for double floor built-in (EF006411) | Yes |
| Suitable for wet cleaning (EF005109) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
