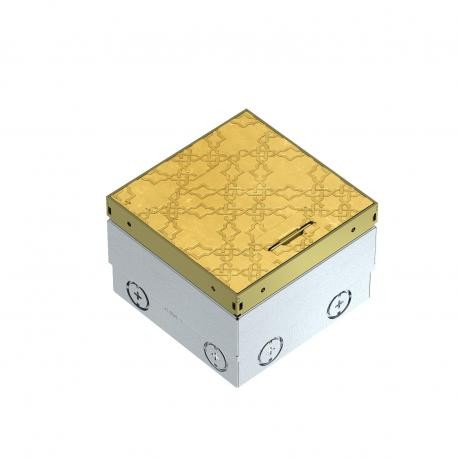

UDHOME2 GM D2 7368265 OBO BETTERMANN GM D2 UDHOME2 Complete Unit, Empty, Oriental 140x140x110
UDHOME2 GM D2
7368265
OBO BETTERMANN

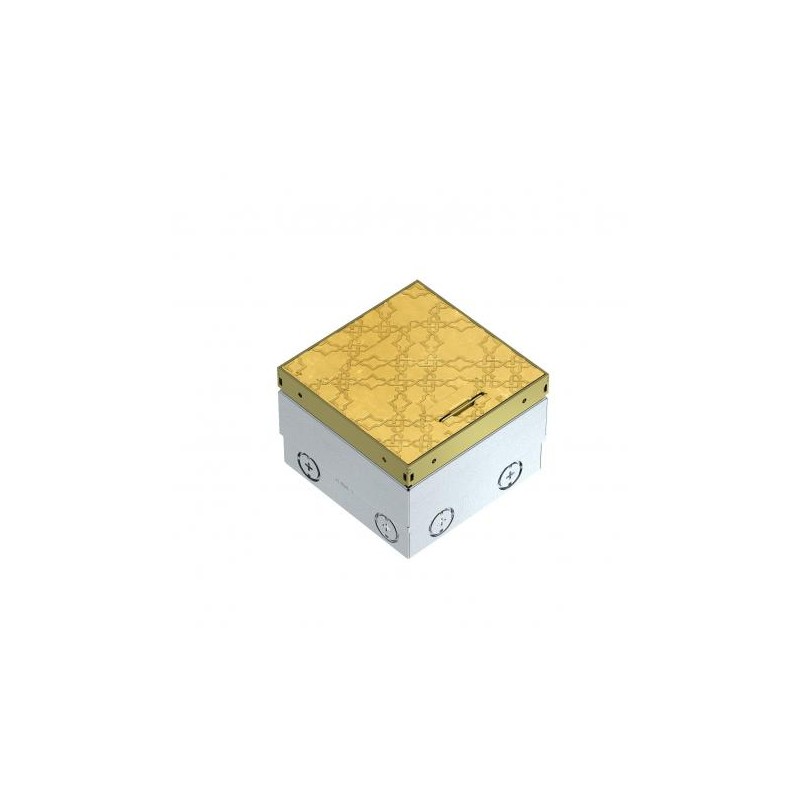

GM D2 UDHOME2 Complete Unit, Empty, Oriental 140x140x110
Complete UDHOME2 GM D2 unit, empty, Oriental 140x140x110,
UDHOME2 floor socket, without floor covering recess, freely equippable, brass, decorative plate: oriental. Square floor socket for use in dry-care cavity and screed floors. Installation housing with pre-marked insertion openings for pipes (M20/M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 100 mm, the height-adjustment range 35 mm.Frame and cover made of brass and visible in the floor covering. Cover with Oriental decorative plate. Empty housing for up to 2 Modul 45® devices in the mounting support and 2 data sockets in the optional data technology support.
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Application when unused | 6.101.1 Dry floor care |
|---|---|
| Application when used | 6.101.1 Dry floor care |
| Approvals | VDE |
| Cable outlet version | Swivellable cord outlet |
| CO2 Footprint (GWP) Cradle-to-Gate | 10,3659 kg CO2e / 1 Piece |
| Device support to accept mounting boxes | no |
| Dimension | 140x140x110 |
| Equipment | Empty housing |
| Floor care | Dry |
| Floor covering protection frame | no |
| Floor height, max. | 135 mm |
| Floor height, min. | 100 mm |
| Frame version | Floor covering contact edge |
| Heavy-duty version | no |
| Height | 100 mm |
| Length | 140 mm |
| Nominal size for device installation units | 2 |
| Number of installable devices | 2 |
| Opening mechanism | Handle |
|---|---|
| Protection rating (IP) when unused | IP40 |
| Protection rating (IP) when used | IP20 |
| Protection rating IK code | IK10 |
| Seal installation option | no |
| Standard | EN 50085-2-2 |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Suitable for screed-covered underfloor ducts | no |
| Suitable for screed-flush closed underfloor ducts | no |
| Suitable for underfloor ducts | no |
| Suitable for wet care | no |
| Version for | Square |
| Vertical load, large area | to 15,000 N |
| Vertical load, small area | to 3,000 N |
| Width | 140 mm |
| With floor covering recess | no |
| Feature Name | Feature Value |
|---|---|
| Cover model (EF009212) | Square |
| With cable outlet in cover (EF015333) | Yes |
| With opening carpeting (EF004541) | No |
| Protective frame carpeting (EF004543) | No |
| Suitable for subfloor duct (EF006409) | No |
| Suitable for hollow floor (EF006410) | Yes |
| Suitable for double floor built-in (EF006411) | Yes |
| Suitable for wet cleaning (EF005109) | No |
