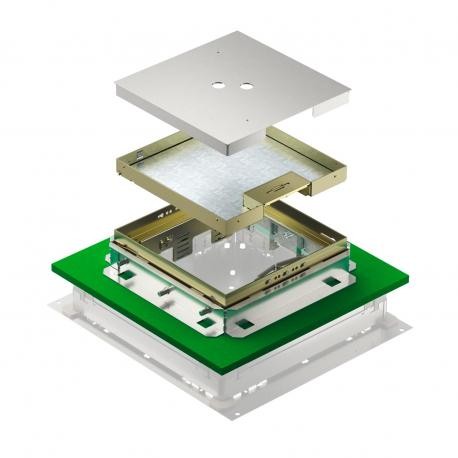

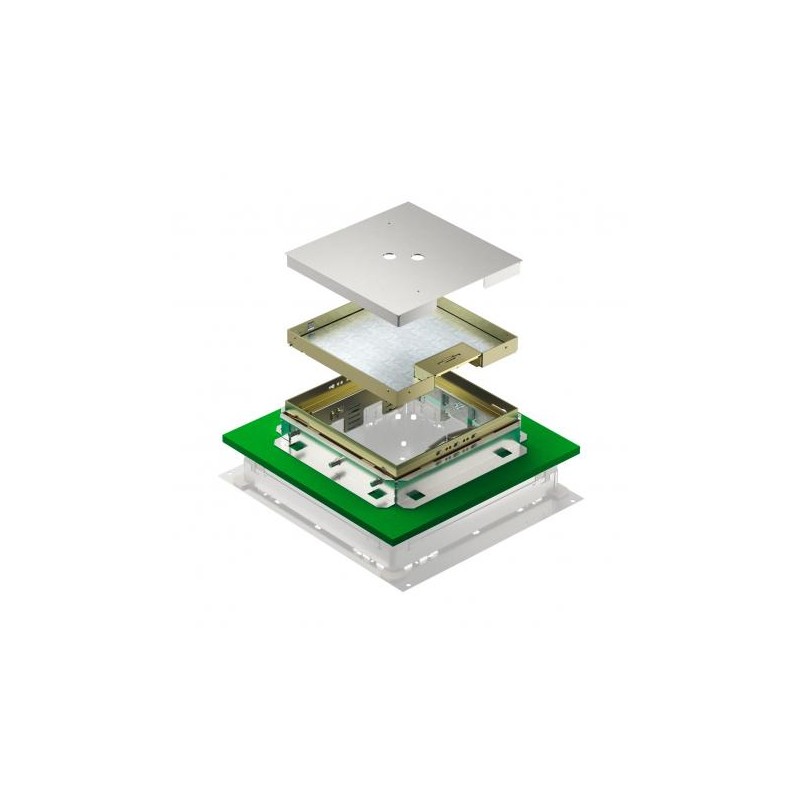

TRKSN 9 MS 250 7409613 OBO BETTERMANN Embedded square box TRKSN 9 MS 250, rectangular, cable outlet 243x243x..

Reference: TRKSN 9 MS 250

Code: 7409613

Manufacturer: OBO BETTERMANN

Description:

Embedded square box TRKSN 9 MS 250, rectangular, cable outlet 243x243x83 Brass, CuZn
Height-adjustable and detachable lid and frame assembly with cord outlet, brass

Categories:

  • OBO BETTERMANN > UFS Underfloor piping systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Deutschland (Asociación de Electrotécnicos Alemanes)
  • Comunidad Europea, Declaración de conformidad según las directivas de la CE
Adjustable and detachable square cover and frame assembly for flush-to-ground, jointless installation of devices in UZD 250-3 (minimum installation depth 151 mm)/UGD55 250-3 (minimum installation depth 136 mm) underfloor junction boxes. Suitable for all types of cement flooring. Cassette frame with integrated formwork body and leveling function. The frame of the lid and frame assembly is leveled with the upper edge of the floor covering by 4 elongated holes. For dry cleaning floors. The cover and frame assembly is fixed to the mounting cover during screeding/terrazzo work by means of angle fasteners and is decoupled in all directions once installed. The frame of the lid and frame assembly is made of brass with a cutout for the floor covering of 25 mm deep on the lid.
Height-adjustable lid and frame with cable outlet, 3 compartments 3 blind APMT5 protective caps can be installed. For the installation of 3 UT3 universal brackets for 9 individual mechanisms with support ring/bracket or 12 Modul 45 sockets.

ETIM for 7409613 Underfloor trunking and floor boxes (EC002603)

Feature nameMin. built-in depth (EF005027)
Feature value136 mm
Feature nameLevelling height (EF007999)
Feature value69 mm
Feature nameFloor maintenance (EF004546)
Feature valueDry
Feature nameModel (EF000010)
Feature valueSquare
Feature nameMaterial (EF002169)
Feature valueBrass
Feature nameNumber of conduit outlets (EF004424)
Feature value1
Feature nameType of conduit outlet (EF004474)
Feature valueSwivelling
Feature nameChassis part for device cups (EF004750)
Feature valueNo
Feature nameNumber of appliances to build in (EF000219)
Feature value12
