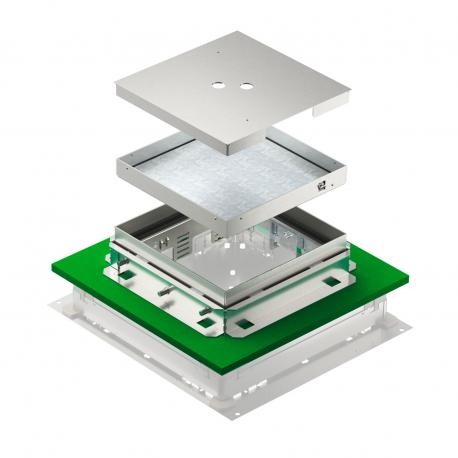

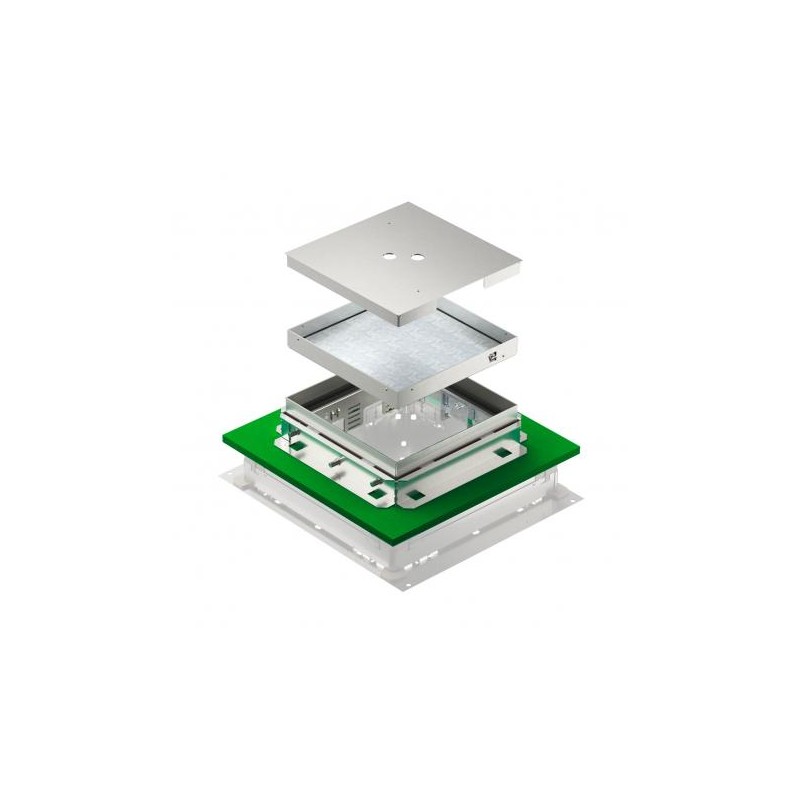

TRKN 9 VS 250 7409601 OBO BETTERMANN Recessed square box TRKN 9 VS 250, rectangular, blind 243x243x83 Stainl..
TRKN 9 VS 250
7409601
OBO BETTERMANN
Recessed square box TRKN 9 VS 250, rectangular, blind 243x243x83 Stainless steel, A2
Height-adjustable, decouplable cassette for inspection opening, stainless steel. Height-adjustable and decouplable square cassettes are suitable for flushfloor device installation in UGD-3 underfloor connection boxes. Depending on the design, they are suitable for dry, moist or wet-cleaned floors. The cassette rests on the fixing bracket fastened in the top frame of the box, using which the cassette can be adjusted to the top edge of the floor covering. The fixing bracket decouples the cassette from the raw ceiling. The connection socket must have an appropriate installation opening and, for this reason, needs a blanking lid with an appropriate installation opening. The cassettes are made from stainless steel or brass. All the cassettes contain a 4 mm thick sheet steel plate, for safe ab
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Approvals | VDE |
|---|---|
| Cable outlet version | No cable outlet |
| CO2 Footprint (GWP) Cradle-to-Gate | 40,7164 kg CO2e / 1 Piece |
| Decouplable | yes |
| Device support to accept mounting boxes | no |
| Dimension | 243x243x83 |
| Floor care | Wet |
| Floor covering thickness | 25 mm |
| Floor height, min. | 136 mm |
| Heavy-duty version | no |
| Height | 81 mm |
| Height-adjustment range, max. | 110 mm |
| Height-adjustment range, min. | 69 mm |
| Installation depth | 136 mm |
| Installation system type | UT4 |
| Length | 243 mm |
|---|---|
| Material | Stainless steel |
| Nominal size for device installation units | 9 |
| Protection rating (IP) when unused | IP55 |
| Protection rating (IP) when used | IP00 |
| Protection rating IK code | IK10 |
| Screed height, max. | 110 mm |
| Screed height, min. | 69 mm |
| Standard | EN 50085-2-2 |
| Suitable for cavity floor installation | no |
| Suitable for raised floor installation | no |
| Version for | Square |
| Vertical load, large area | to 5,000 N |
| Vertical load, small area | to 3,000 N |
| Width | 243 mm |
| Feature Name | Feature Value |
|---|---|
| Min. built-in depth (EF005027) | 136 mm |
| Levelling height (EF007999) | 69 mm |
| Floor maintenance (EF004546) | Wet |
| Model (EF000010) | Square |
| Material (EF002169) | Stainless steel |
| Number of conduit outlets (EF004424) | 0 |
| Chassis part for device cups (EF004750) | No |
| Number of appliances to build in (EF000219) | 0 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
